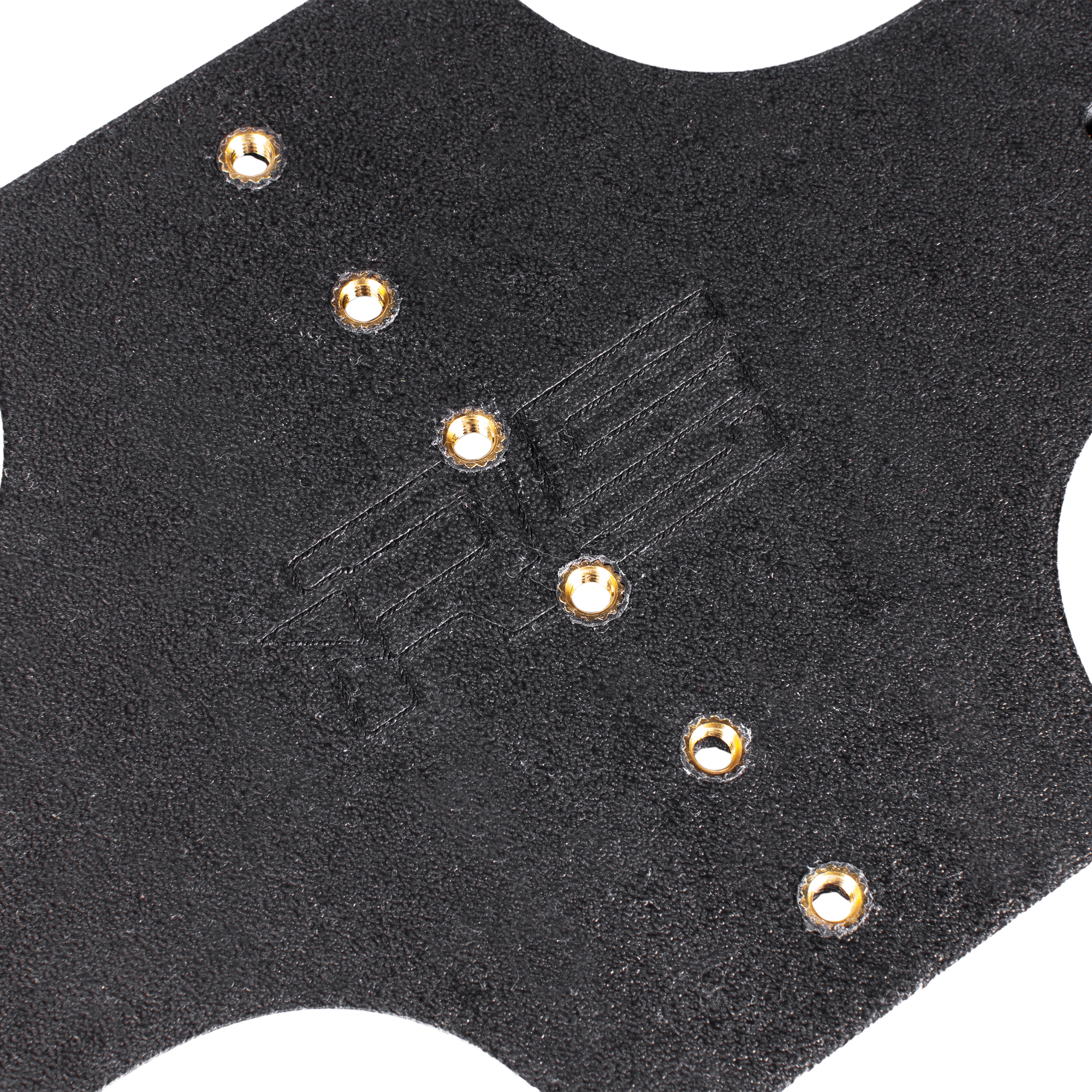

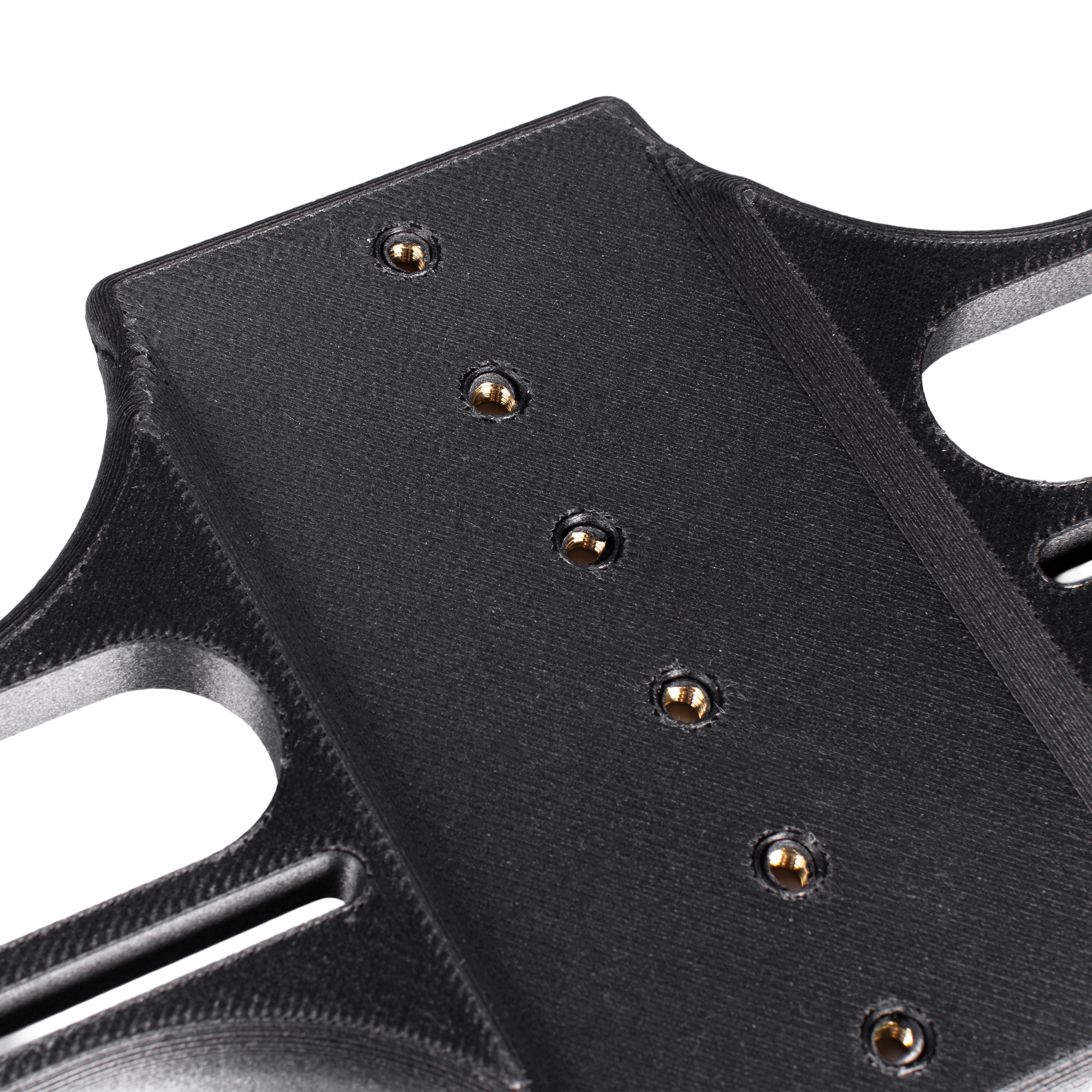

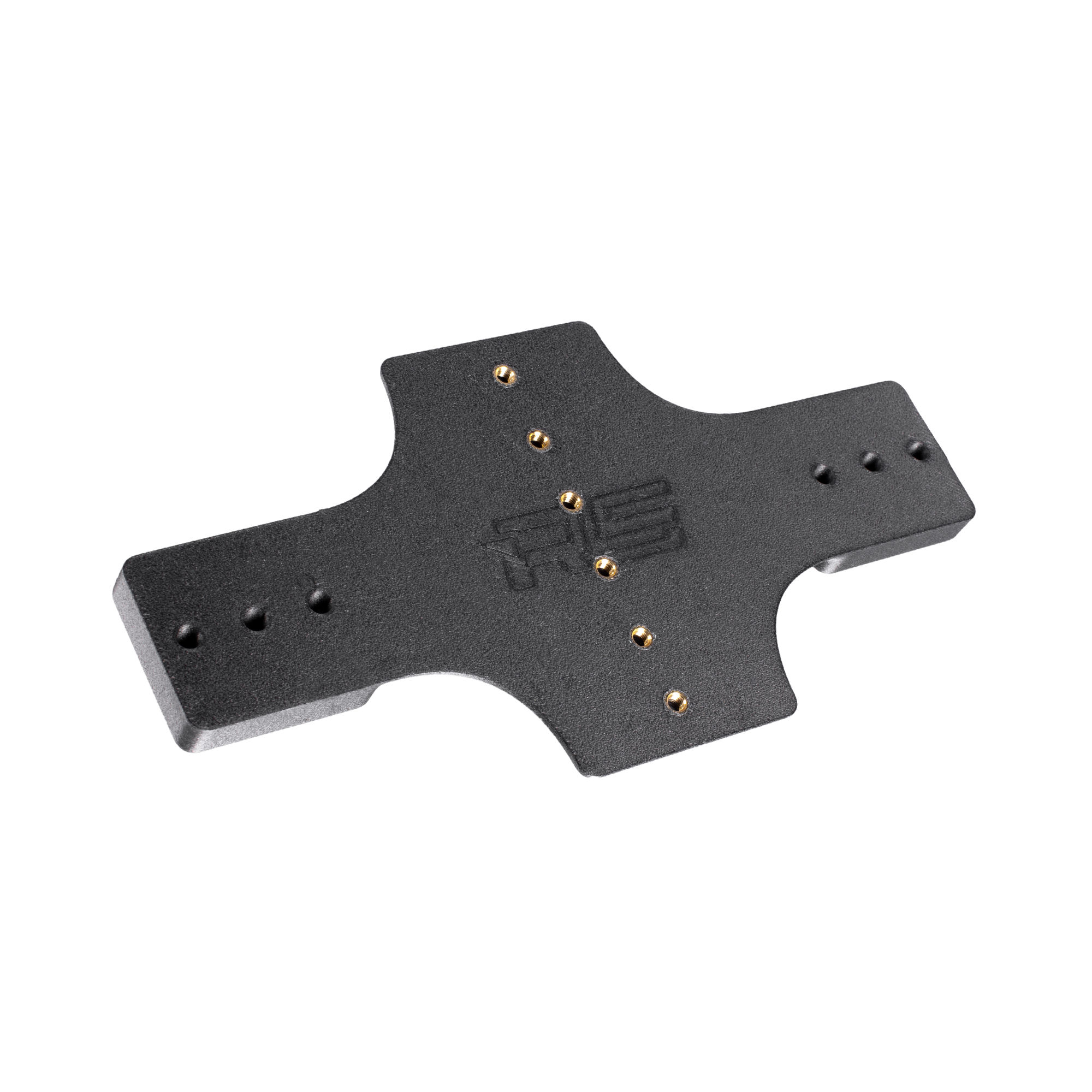

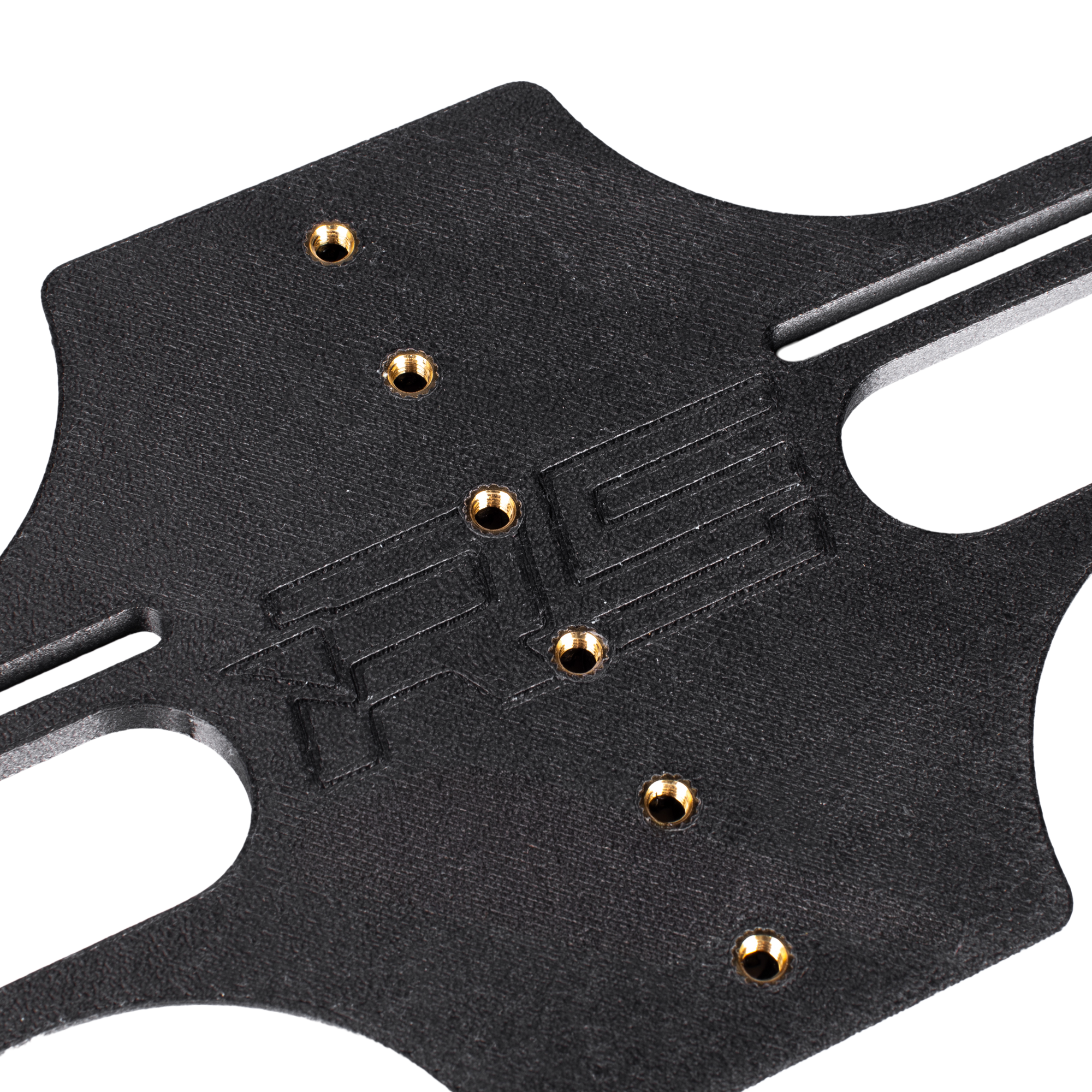

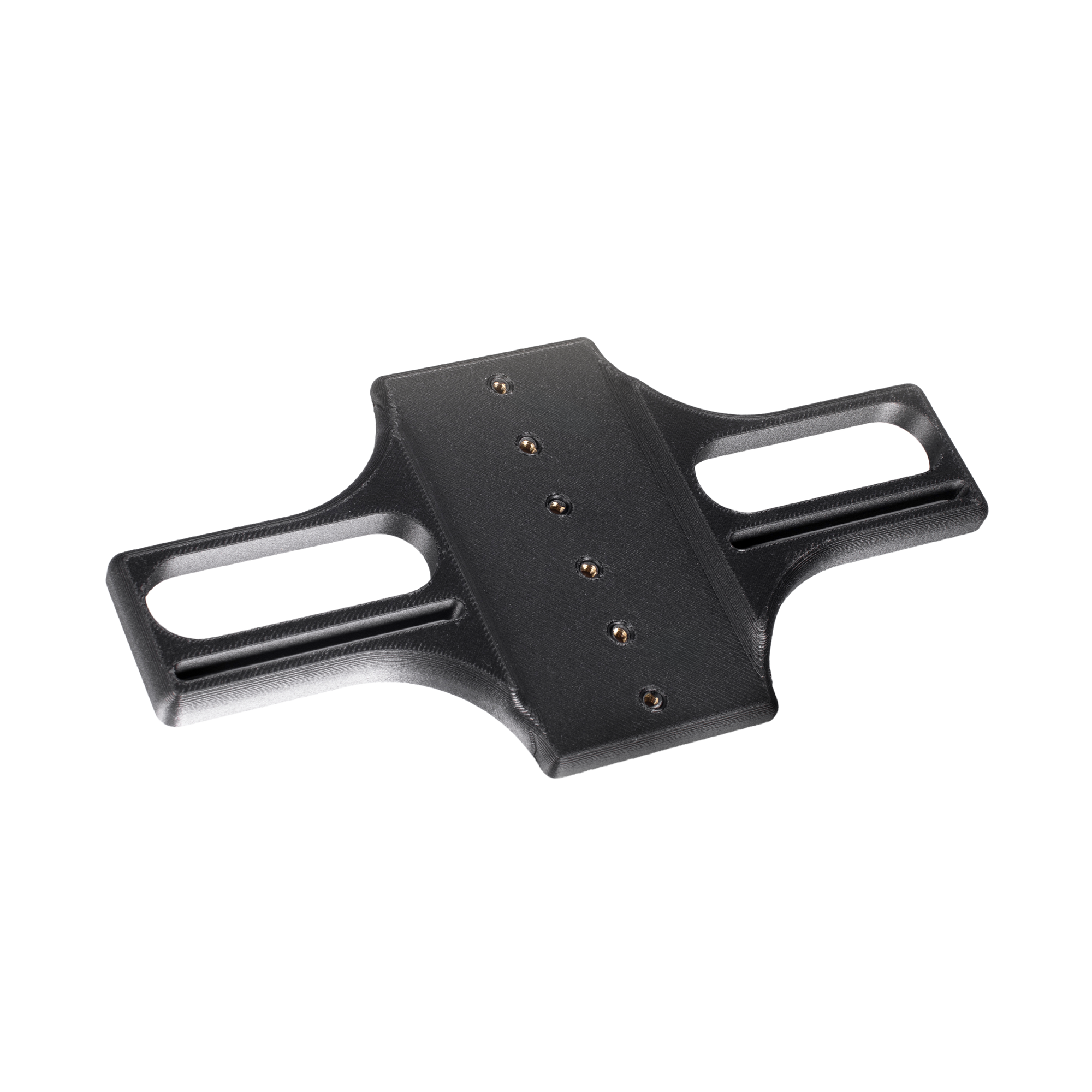

Tri-Di Creations — Universal Between-the-Arms (BTA) Mounting Plate
$50.00
BTA MOUNTING PLATE
The Tri-Di Creations Universal / Crono SLR Specific Between-the-Arms (BTA) Mounting Plate is a precision cockpit platform designed for triathletes who want a clean, strong, and highly adjustable mounting solution. Designed to mount directly under aero arm pads, this plate provides a stable base for between-the-arms hydration systems. Its universal slot pattern allows flexible positioning and compatibility with a wide range of cockpit setups. Engineered for stiffness, durability, and minimal weight, the BTA mounting plate integrates cleanly into modern aero cockpits while giving riders the ability to fine-tune their hydration and accessory placement.
Key Features
- Universal between-the-arms mounting platform
- Designed to mount directly beneath aero arm pads
- Multiple possible mounting positions for flexible accessory placement
- Compatible with standard 64 mm bottle cage mounting systems

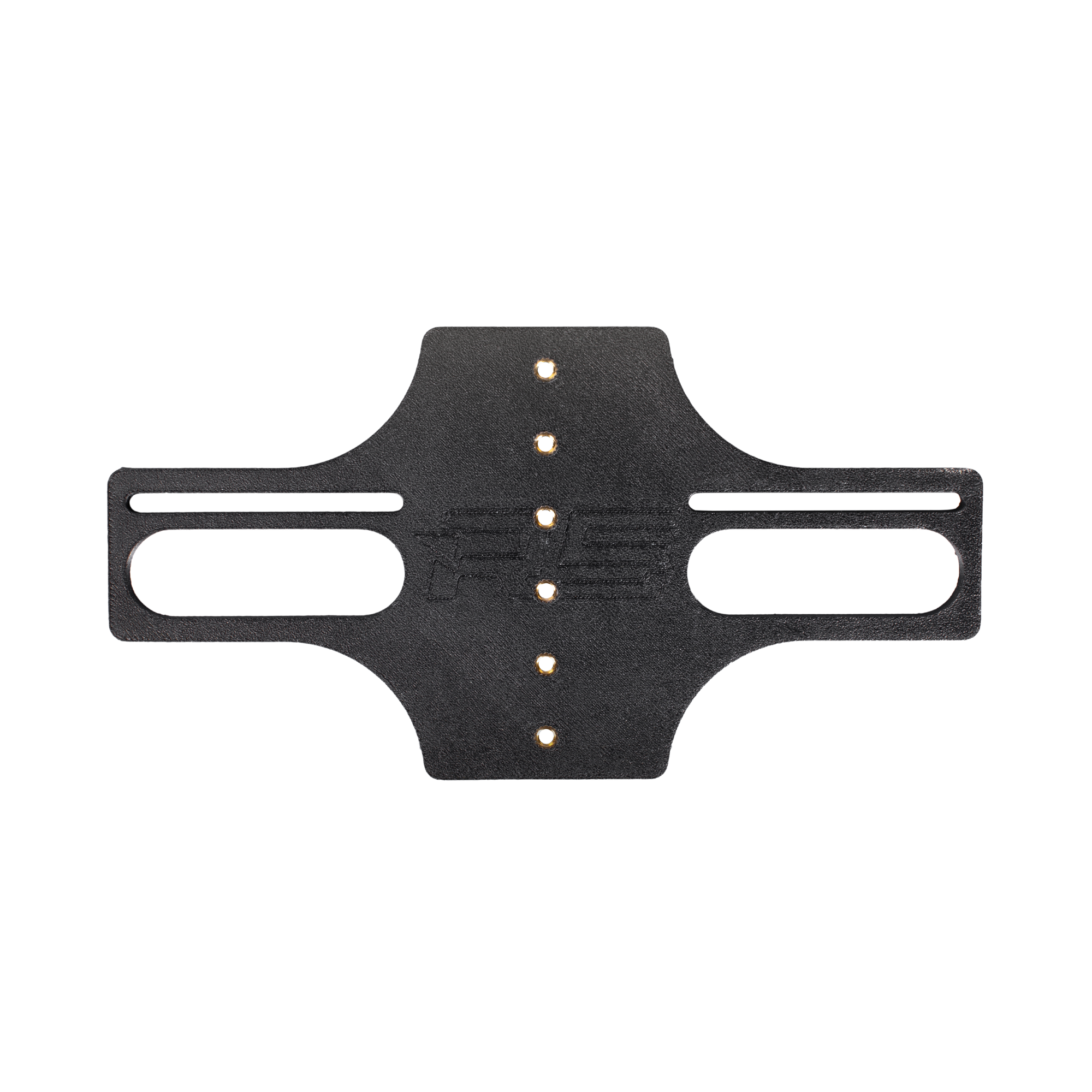

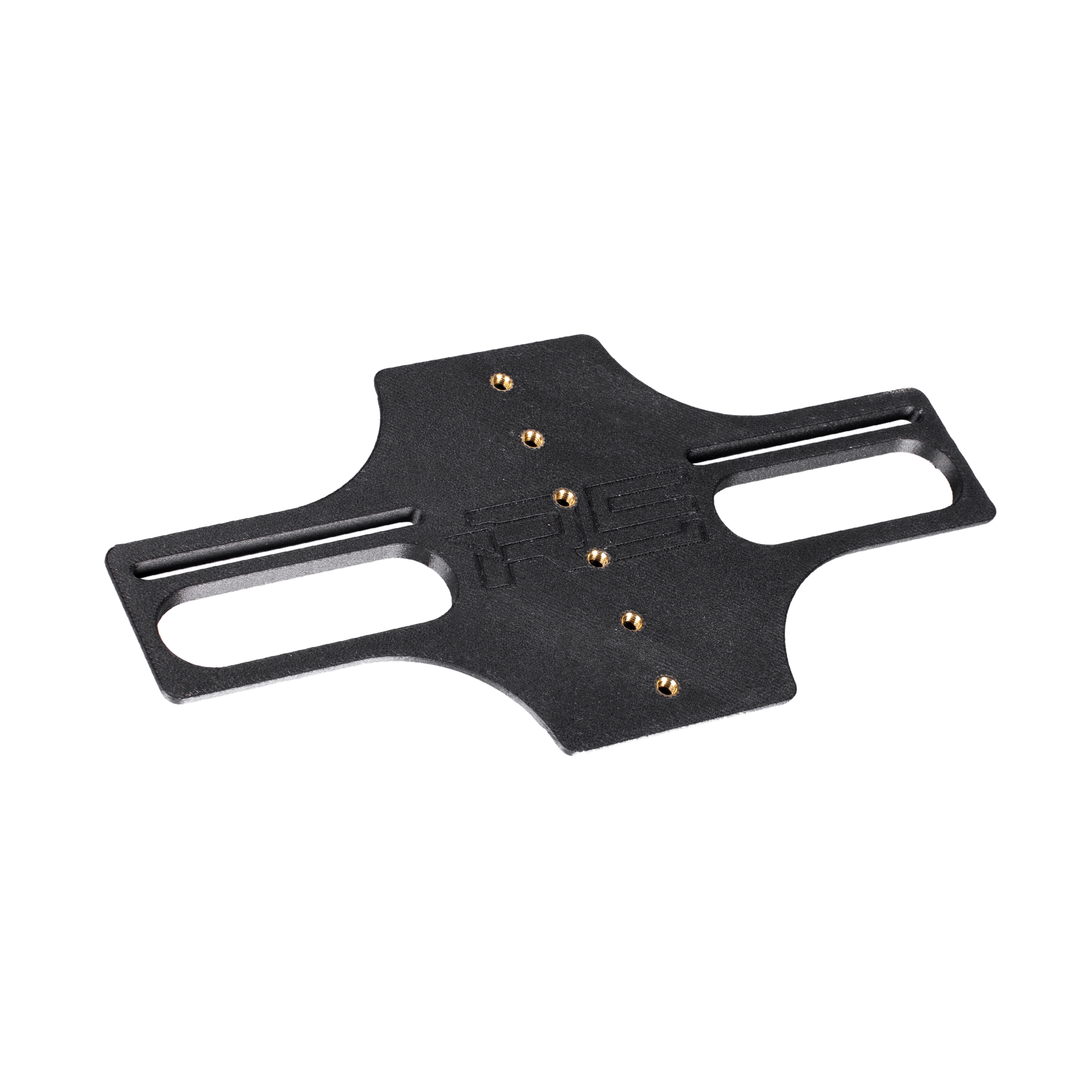

- Universal slot pattern for wide cockpit compatibility

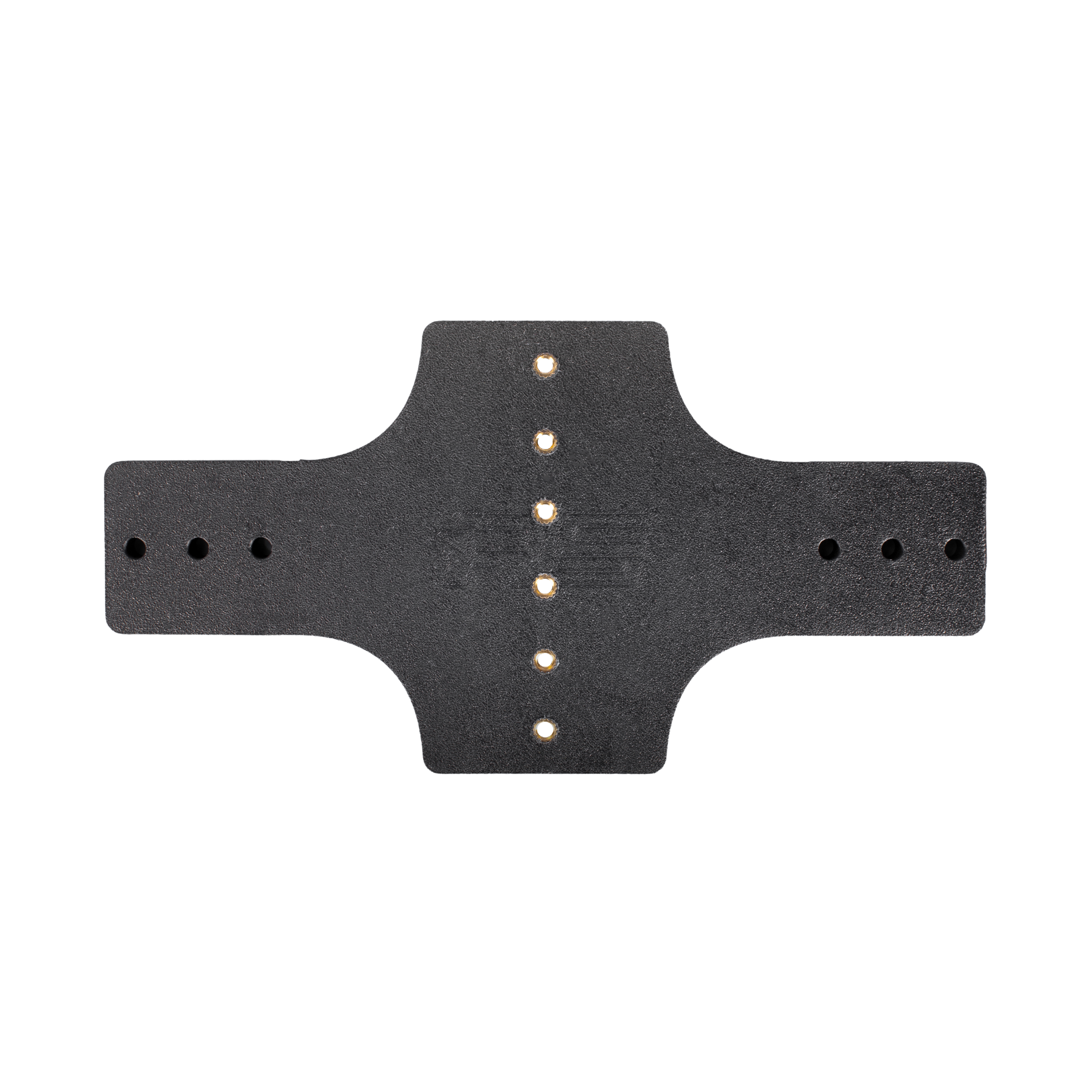

- Crono SLR specific option available
- Designed for triathlon
Specifications
| Specification | Metric | Imperial | Description |
|---|---|---|---|
| Overall Length | 250 mm | 9.84 in | Plate length |
| Overall Width | 130 mm | 5.12 in | Plate width |
| Plate Thickness | 6 mm | 0.24 in | Structural plate thickness |
| Bottle Mount Pattern | 64 mm | 2.52 in | Industry-standard bottle cage spacing |
| Maximum Torque | 2 Nm | 1.48 ft-lb | Do not exceed |
Installation Instructions
Tools Required: 4 mm hex driver (or appropriate tool for your bottle cage bolts)
- Remove your aero arm pad hardware from the cockpit.
- Position the BTA mounting plate beneath the arm pads, aligning the universal slots with your cockpit mounting holes.
- Install the appropriate M5 hardware through the arm pads and plate into the cockpit mounts.
- Tighten mounting hardware evenly to a maximum of 2 Nm.
- Select one of the three mounting positions for your BTA hydration or accessory setup.
- Install bottle cages, risers, or accessories using standard 64 mm M5 mounting hardware.
- Verify alignment and ensure all bolts are tightened to specification before riding.
Important Notes
- Maximum torque for all M5 hardware: 2 Nm
- Do not use power tools
- Accessories, hydration systems, and mounting hardware beyond the supplied configuration are not included
- Inspect hardware periodically before riding
