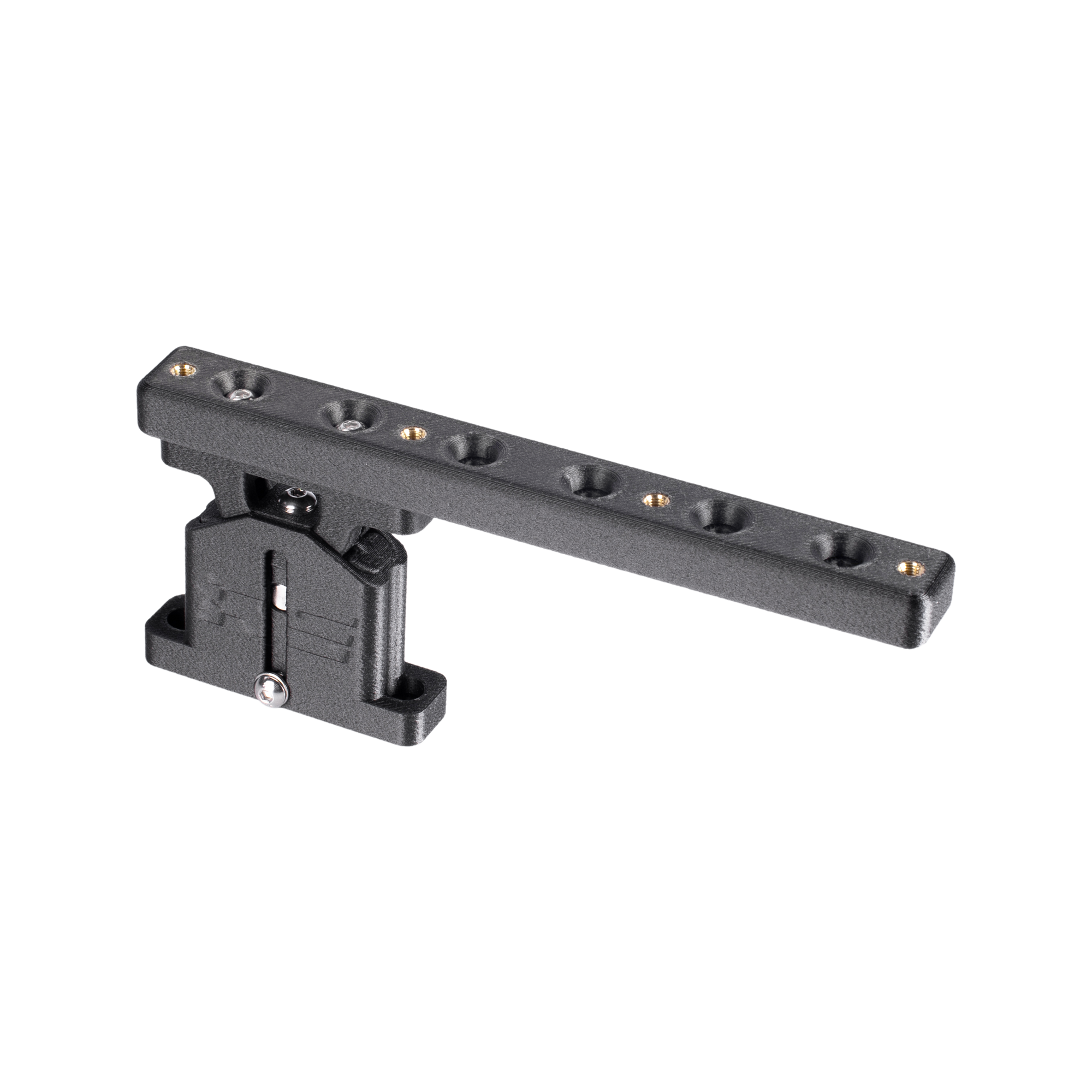

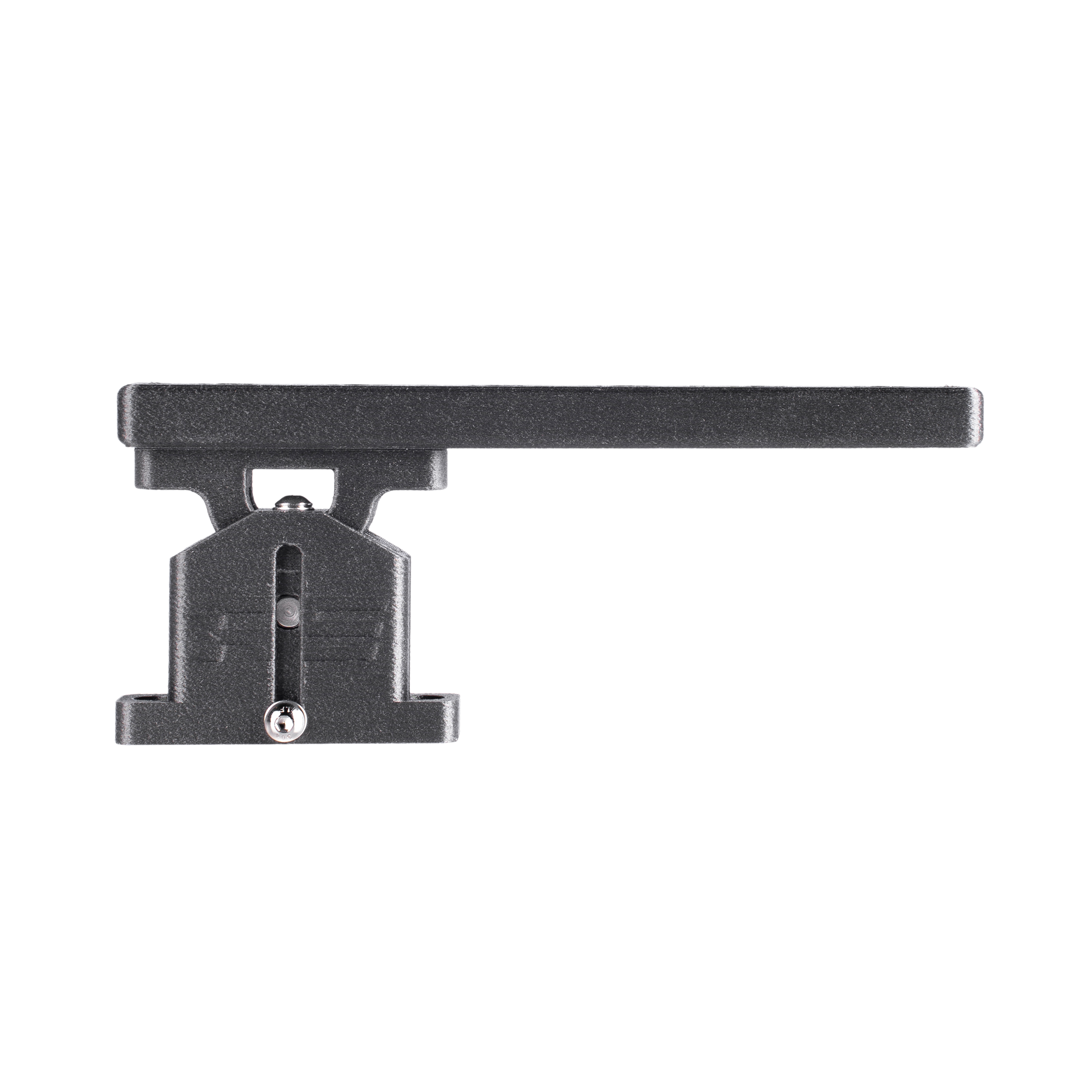

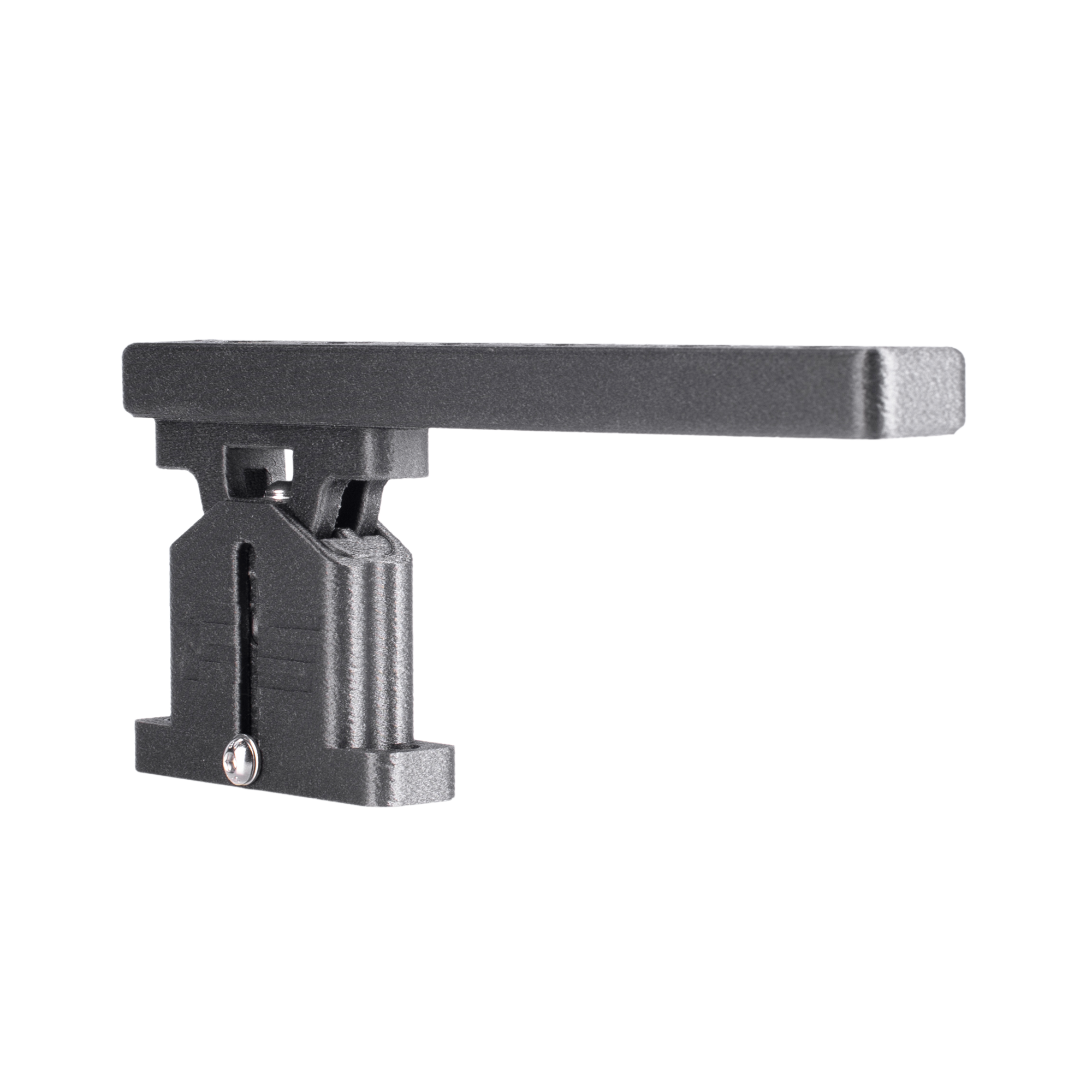

Realspeed RS3D — Height and Angle Adjustable Bottle Riser with Bottle Bar
$120.00
RS3D ADJUSTABLE BOTTLE RISER
The Adjustable Bottle Riser and Bottle Bar is a precision, carbon fiber–reinforced nylon mount designed for triathletes who want fully adjustable hydration positioning. Lightweight yet strong, this system allows you to add and position your bottles exactly where you need them for maximum aerodynamics and accessibility. Each unit is crafted in Canada using carbon fiber–reinforced nylon for exceptional stiffness, strength, and durability.
Key Features

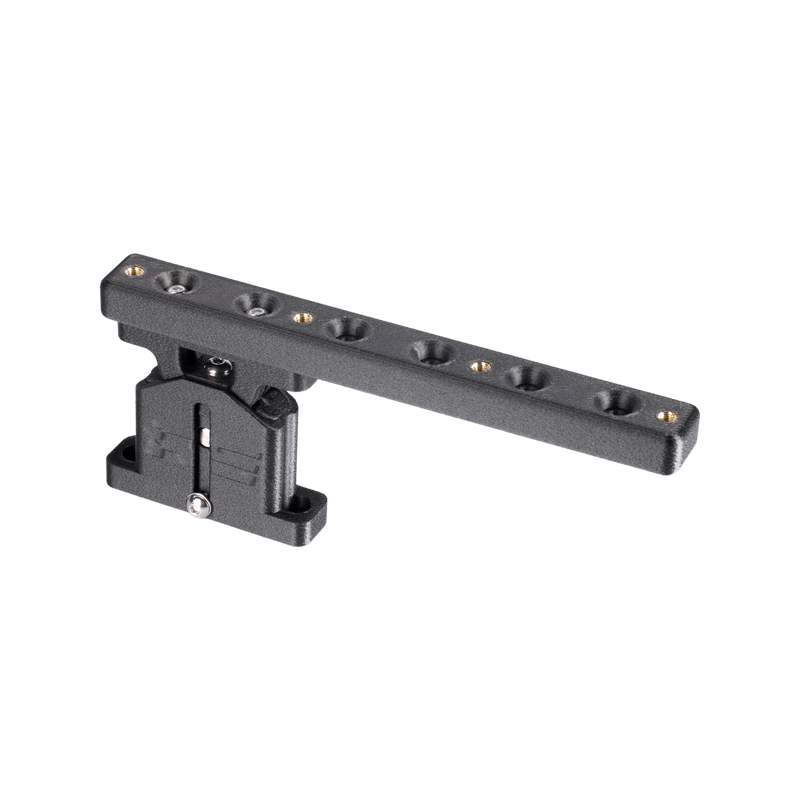

- Fully adjustable height (70–110 mm) and angle (up to 30°)
- Lightweight and stiff, ideal for racing and long-course training
- Compatible with standard bottle cages and optional multi-bottle bars
- Industry-standard mounting for easy integration with existing setups
- Fastened with M5 bolts, maximum torque 2 Nm
Specifications — Bottle Riser
| Specification | Metric | Imperial | Description |
|---|---|---|---|
| Mounting Standard | 64 mm | 2.52 in | Industry-standard center-to-center |
| Base Footprint | 21 × 80 mm | 0.83 × 3.15 in | Width × Length of the base |
| Riser Height | 70–110 mm | 2.76–4.33 in | Adjustable vertical range |
| Angle Adjustment | Up to 30° | — | Tilt forward/backward for optimal fit |
| Supported Bottles | 1 | — | Standard bottle cage |
| Fastener Type | M5x0.8, 10, 25 mm bolts | — | Supplied with product |
| Maximum Torque | 2 Nm | 1.48 ft-lb | Maximum bolt torque |
Specifications — Bottle Bar
| Specification | Metric | Imperial | Description |
|---|---|---|---|
| Length | 210 mm | 8.27 in | Maximum bar length |
| Width | 25 mm | 0.98 in | Maximum bar width |
| Height | 15 mm | 0.59 in | Maximum bar height |
| Supported Bottles | 3 | — | 2 top + 1 bottom with end holes, 2 top with center holes |
| Fastener Type | M5x0.8 bolts | — | Supplied with product |
| Maximum Torque | 2 Nm | 1.48 ft-lb | Maximum bolt torque |
Installation Instructions
Tools Required: Screwdriver or torque driver/wrench, level.
- Position the riser against the mounting surface at the desired height and angle.
- Tighten the bolts to a maximum of 2 Nm.
- Adjust the height and angle of the riser within the 70–110 mm and 0–30° range for optimal hydration access.
- If using an optional bottle bar, position it on top of the riser and secure using the provided M5 bolts. Maximum torque 2 Nm.
- Check alignment and ensure all fasteners are tight before use.
Optional Bottle Bar Installation
The multi-bottle bar (sold separately) can hold up to 3 bottles depending on hole placement:
- End mounting holes: 2 bottles on top, 1 on the bottom
- Center mounting holes: 2 bottles on top
- Insert the M5 bolts through the bar into the riser, tighten to 2 Nm, and verify that bottles are secure.
Important Notes
- Always use supplied M5 bolts for safe and secure installation.
- Ensure the mounting surface is solid and stable before attaching the riser.
- Check bolt tightness periodically.
