Designed in Canada

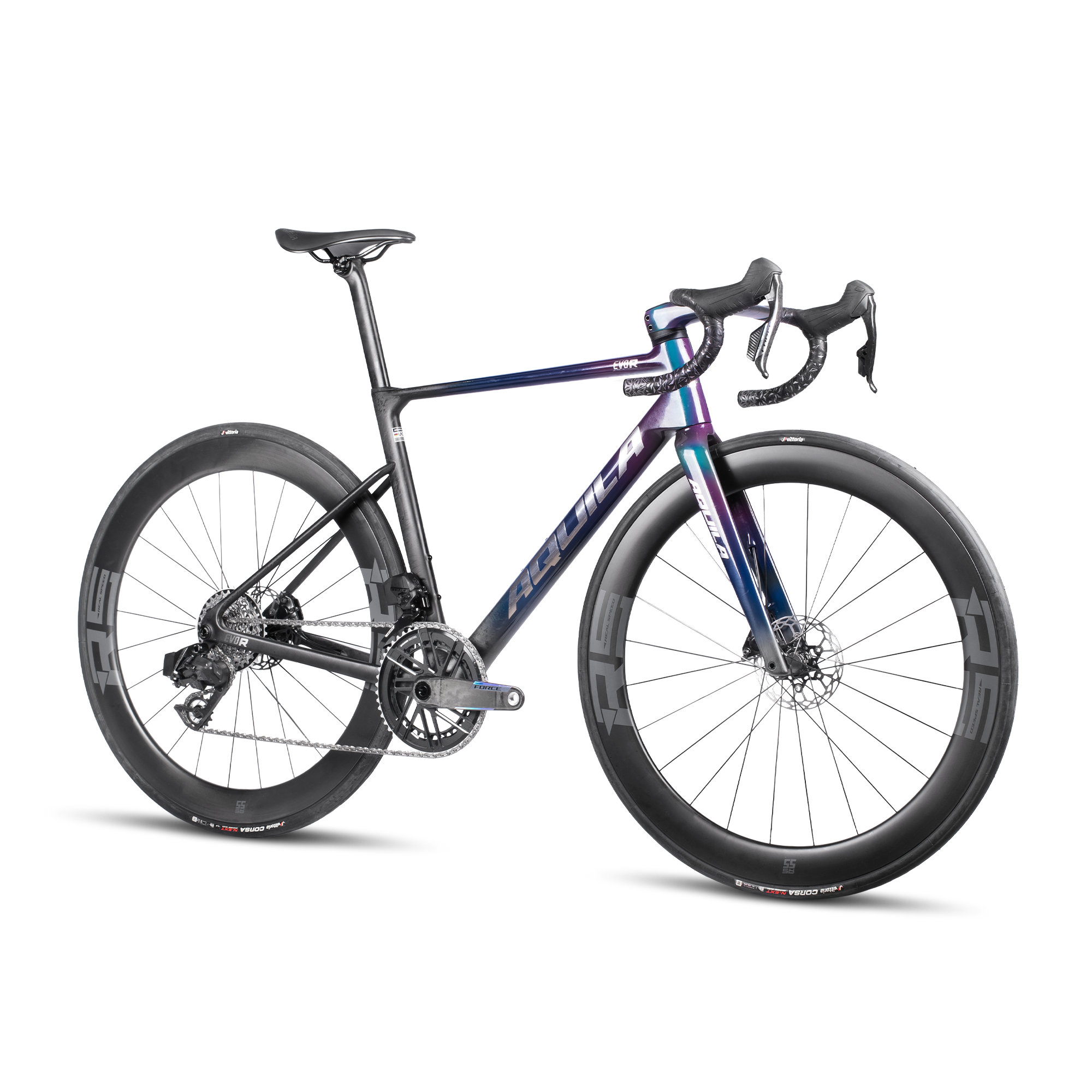

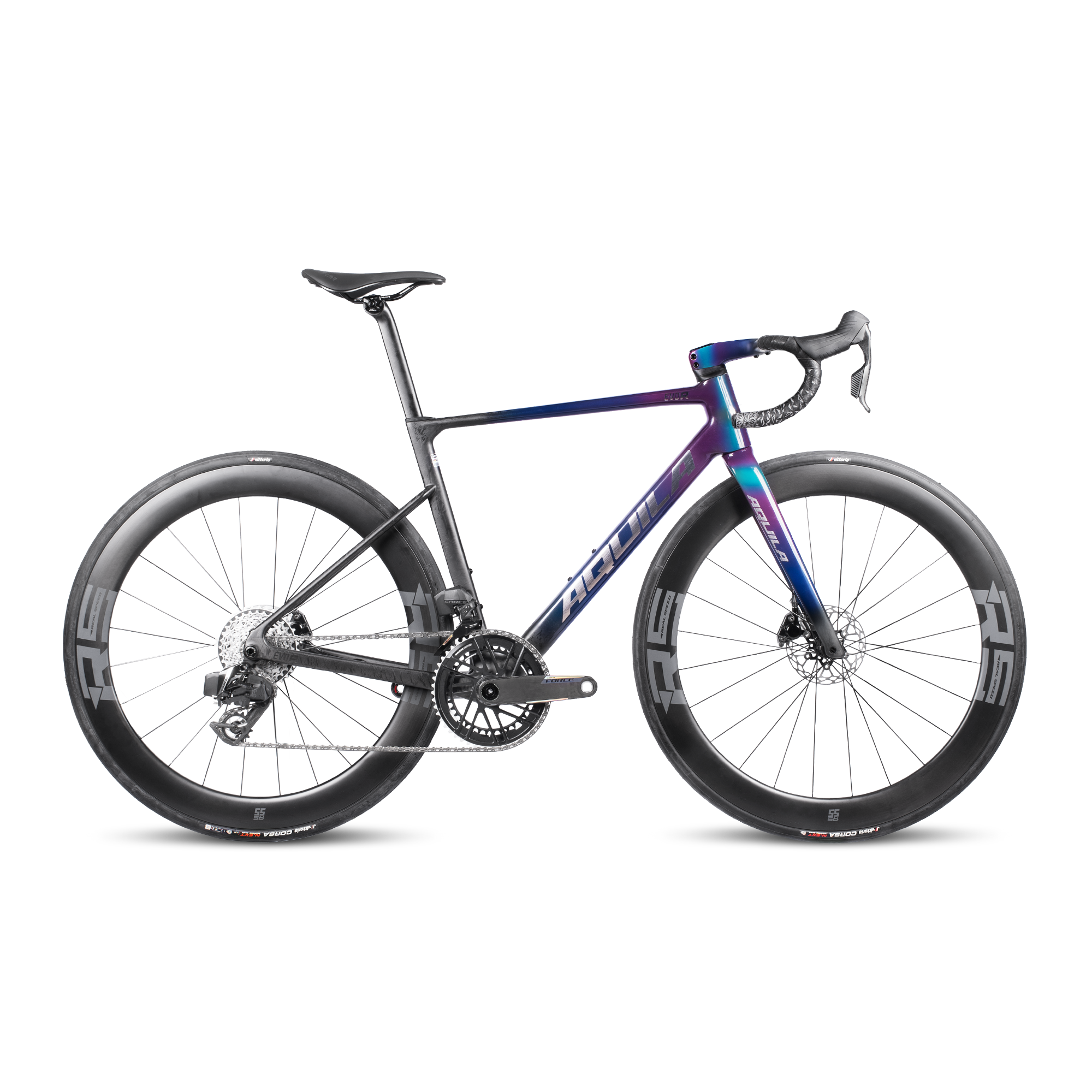

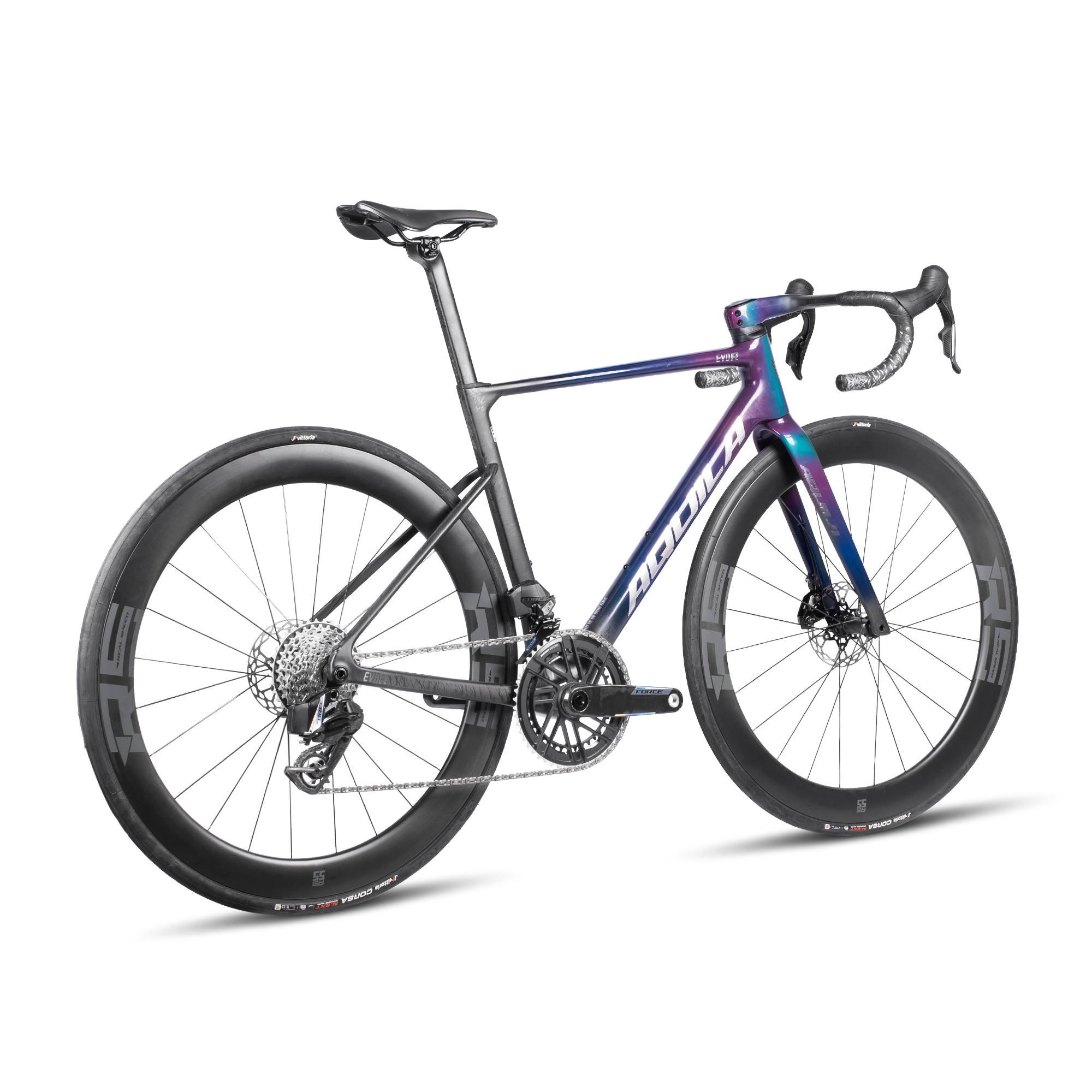

EVO R - TWO
SRAM FORCE AXS E1
$8,399.00
700 grams. One piece. Zero compromise.
FEATURES

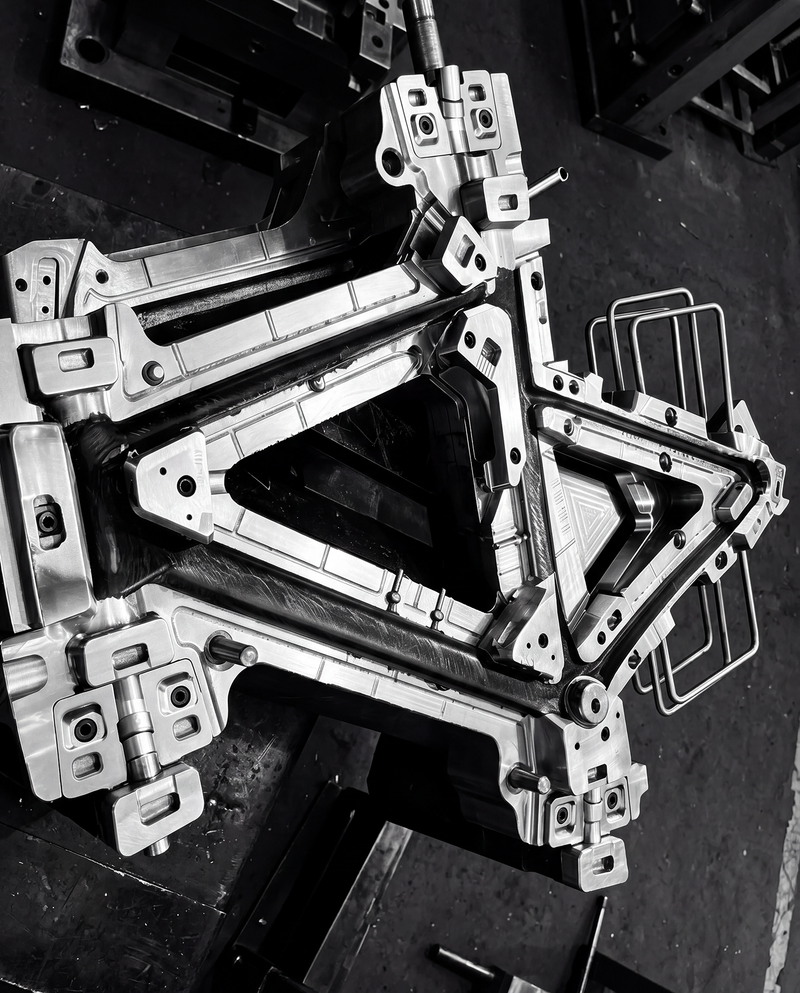

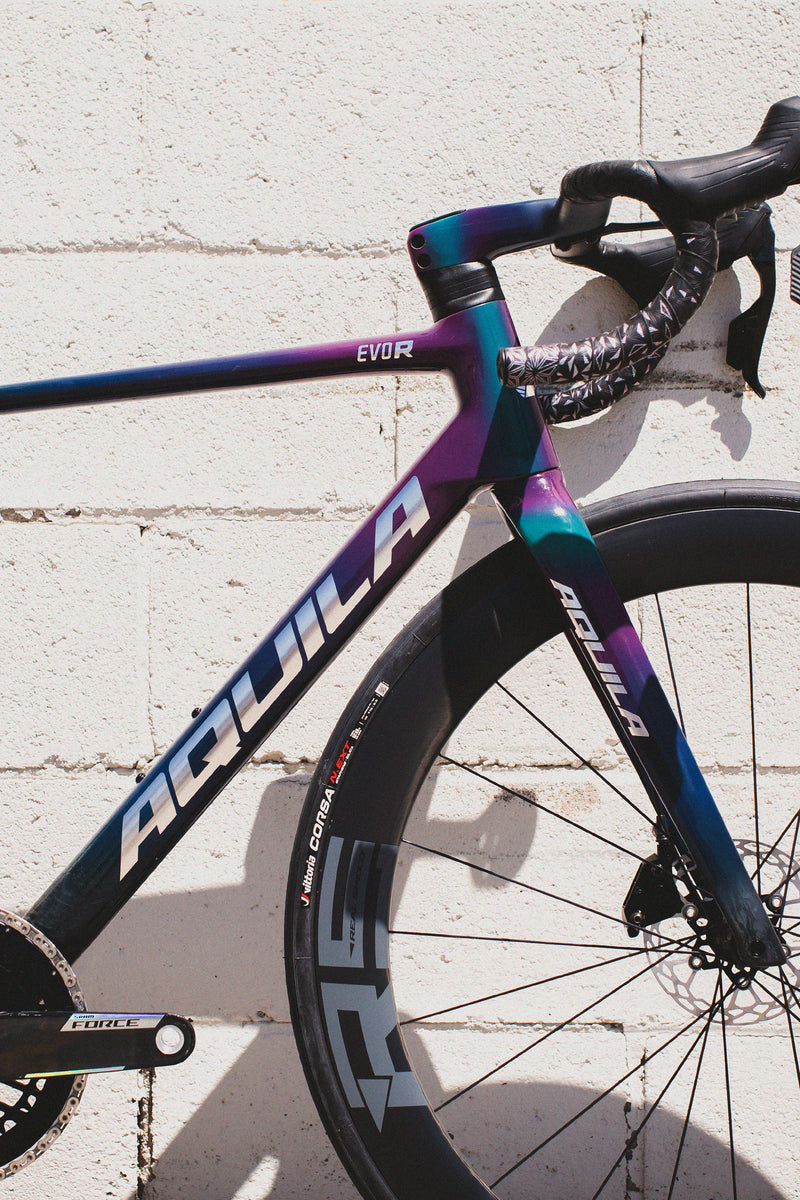

Mono-Mold Technology
Compared to traditional carbon frame manufacturing processes. Where the construction of the frame comprises of 2-3 separate sections which are molded separately and then bonded together. We construct our frame using Mono-Mold technology. A true one-piece mold to produce the frame. The entire frame is formed as a single unit, eliminating the need for subsequent adhesive bonding of individual tubes. The key advantages of this approach is superior structural integrity, greater resistance to stress and fracturing, and a lighter, more reactive frame.

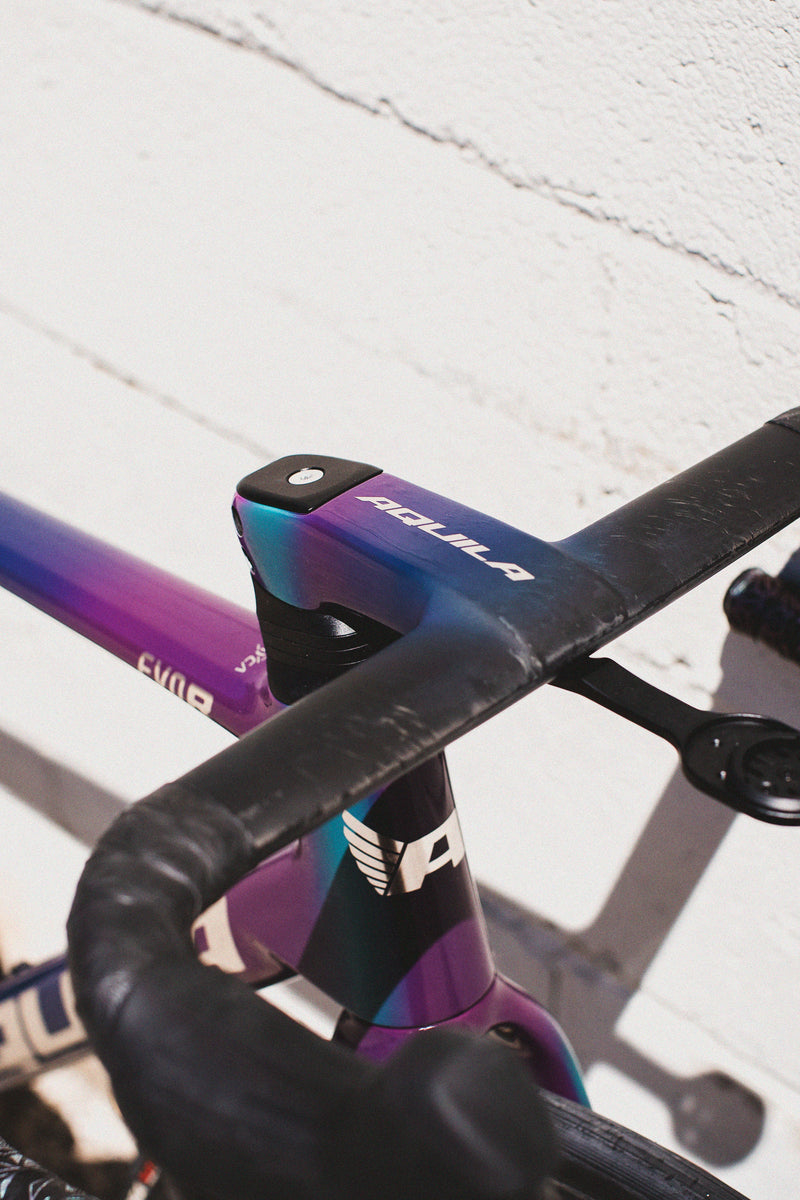

Reduced Weight
Omission of adhesives and connectors and a purer material composition typically reduce frame weight by tens to hundreds of grams compared to tube-to-tube construction. In a size medium the previous generation EVO R tips the scales at 890 grams. The new EVO R trims down to a fighting weight of 700 grams with paint in the equivalent size.

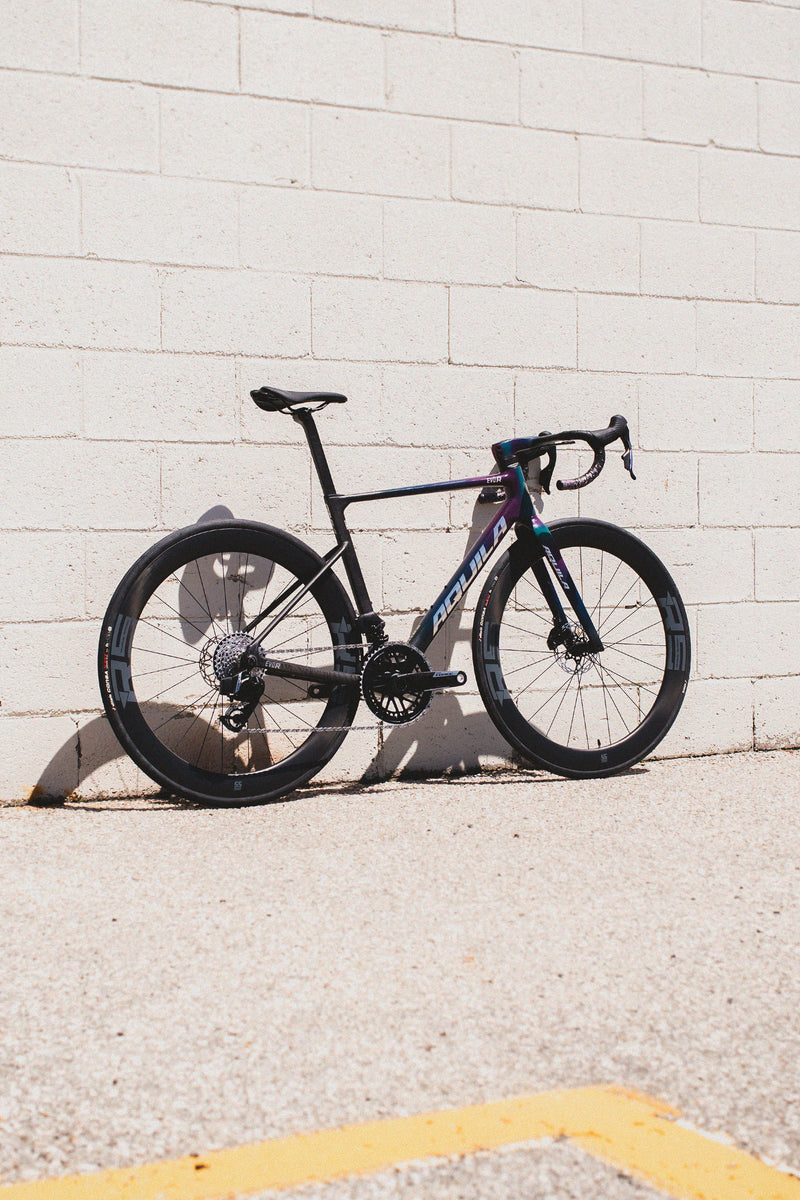

Improved Strength, Stiffness & Aerodynamics
Optimized continuous carbon fiber alignment ensures efficient load transfer, particularly enhancing torsional and bending performance in the bottom bracket and head tube areas. In order to push the Evolution of the EVO R, we had to dig back into the details. Through further CFD analysis, we started to pinpoint where the peak of aerodynamics lie at the common yaw angles that a bike is exposed to. At those points we started to round off, and reduce the size of the tube shapes of the frame to facilitate aerodynamic optimization. Furthermore we opened the distance between the blades of the front fork by 1cm on each side, increasing air flow through a critical area of the frame. Its like hiding from the wind…
SPECIFICATIONS
Frame
- Frame Aquila EVO R
- Headset EVO R
- Seat post EVO R
Drivetrain
- FD Force AXS E1
- RD Force AXS E1
- Shifters Force AXS E1
- Cassette CS XG 1270
- Chain SRAM CN Force E1 12 Speed
- Crankset Force AXS E1 DUB
- Bottom bracket BB-RS500-PB
Wheels & Brakes
- Wheelset Realspeed RS 40TL – T800 – RS Hub
- Tires Vittoria Corsa N.EXT TLR
- Rotors Brakco FRC-20SA
Cockpit
- Bars EVO R Integrated
- Stem EVO R Integrated
- Tape Supacaz

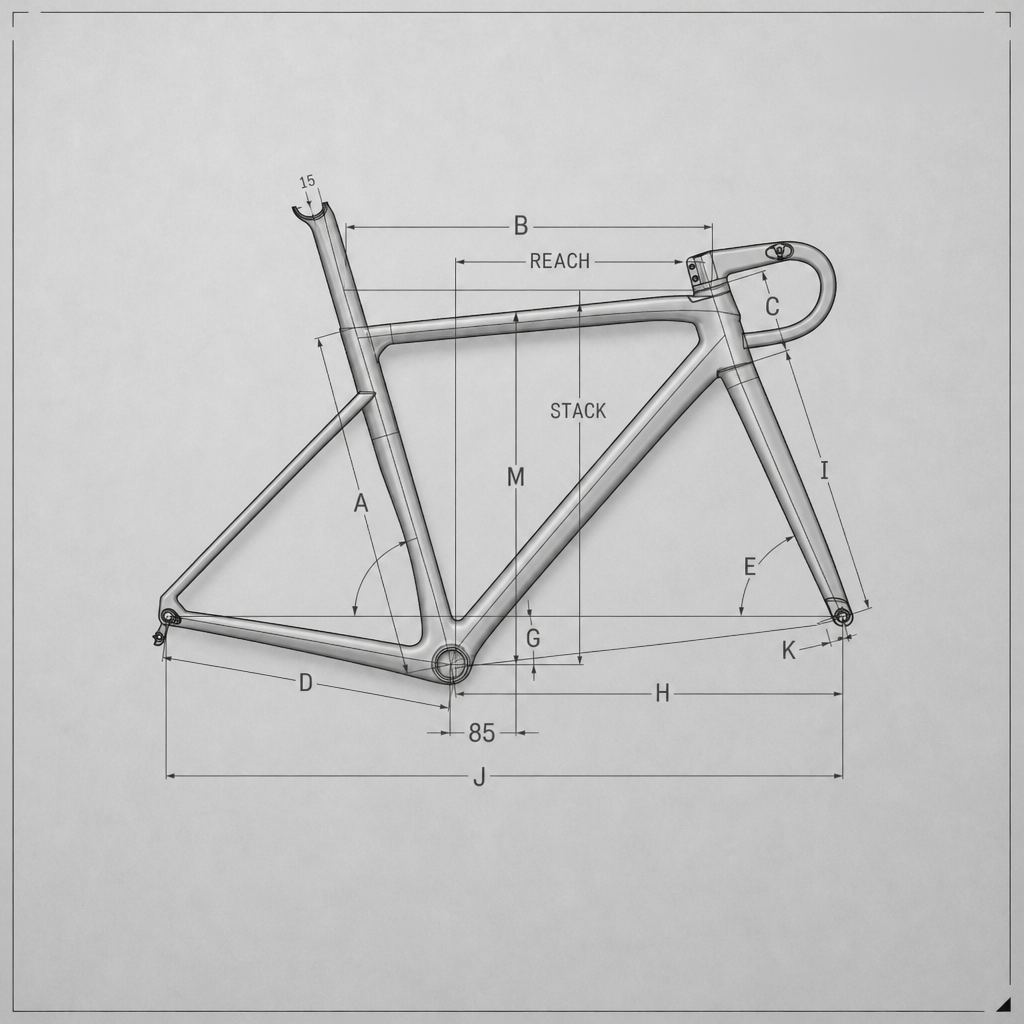

GEOMETRY
Seat tube (ST)
420
Top tube (TT)
498
Head tube (HT)
95
Head angle
70°
Seat angle
75°
Chainstay
406
Wheelbase
967
Stack
500
Reach
364
BIKE SIZE CALCULATOR
Precision Fit
Find Your Perfect Aquila Frame Size
Expert fitting guidance based on your measurements
1
Measurements
2
Body Type
3
Riding Style
4
Your Fit
Aquila Fit Kit Reference
| Height | Inseam | Frame |
|---|---|---|
| <156cm | 70–72cm | 45–48cm |
| ~164cm | 73–75cm | 48–50cm |
| 164–172cm | 76–78cm | 50–52cm |
| 172–175cm | 79–80cm | 52–54cm |
| 172–175cm | 81cm | 54–56cm |
| 178–182cm | 82–83cm | 54–56cm |
| 178–182cm | 84cm | 56–58cm |
| 180–188cm | 85–86cm | 56–58cm |
| 180–188cm | 87cm | 58–60cm |
| 188–195cm | 88–89cm | 58–60cm |
| 188–195cm | 90cm | 60cm+ |
| >195cm | 91–93cm+ | 60cm+ |
