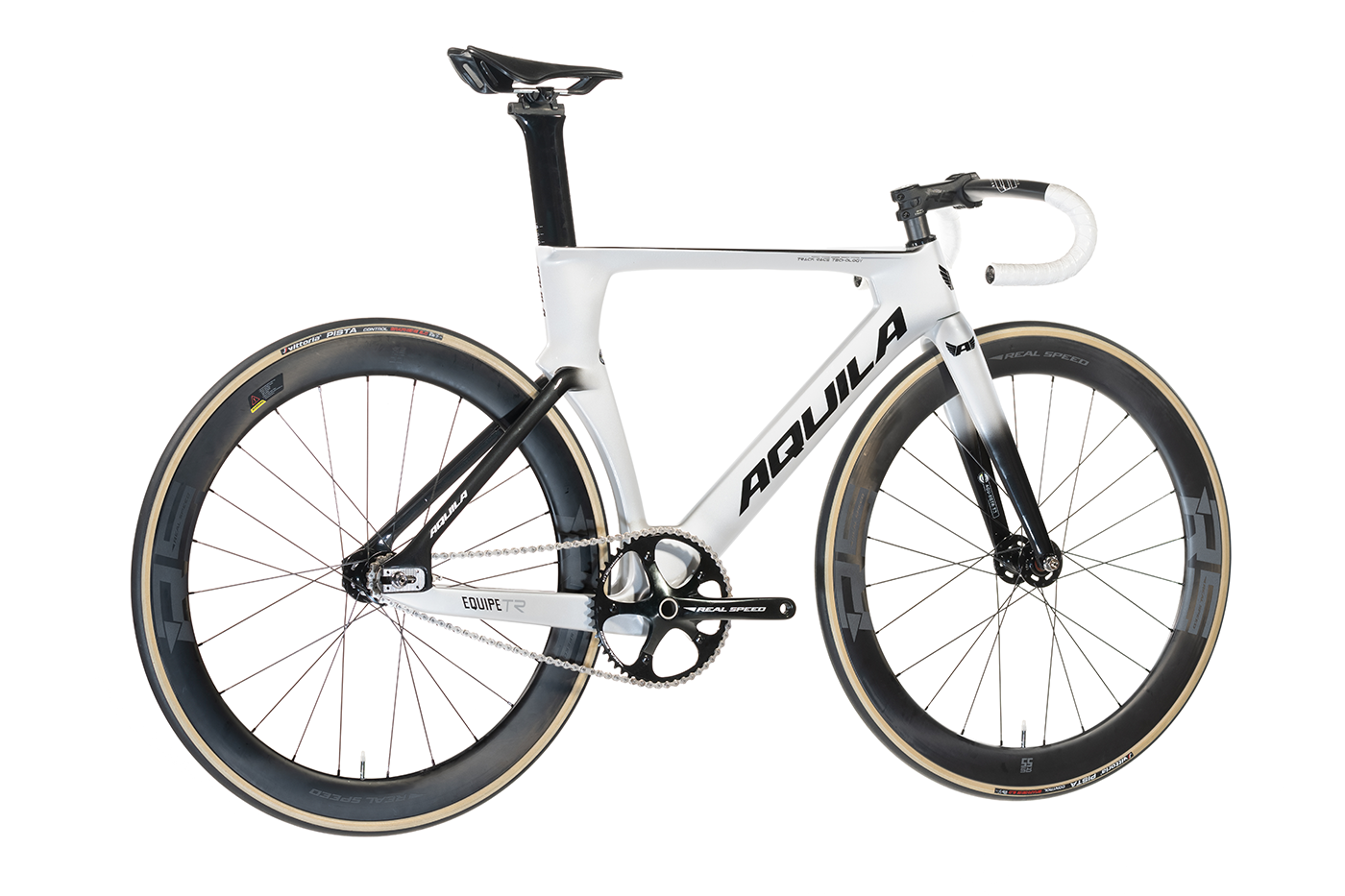

Aquila Equipe TR

Frame:  Aquila Equipe TR
Headset:  Token
BB: SRAM GXP
Crankset: SRAM Omnium 144BCD / 48T
Chain: KMC Z410RB
Cog: Realspeed TK-1 15T
Wheelset: Realspeed TK86 Tubular
Tires: Continental Tempo II 28"x22mm Tubular
Bar:  Realspeed Carbon Aero Track
Stem: 3T ARX
Seat Post:  Aquila Carbon Aero
Saddle: PRO Stealth
Tape:  Polymer Black

IN THE PURSUIT OF PERFECTION


The aerodynamic qualities of the Aquila Equipe-TR stand out at first glance. Tight tolerances and a stiff carbon lay-up make this the idea track machine. Equipped with deep REAL SPEED CYCLING wheels add even more aero advantage when you hit the banks. The Equipe-TR has a proven pedigree though the active sponsorship of national team athletes.

FEATURES

FEATURES

STRATEGIC LAYERING PROCESS

The Aquila Equipe TR utilizes the same SLP-technology, (Strategic Layup Process) found in our Equipe-r road model. SLP incorporates a Carbon nanotube reinforced epoxy resin with a strategic layup of T1000G and T800H Carbon Fiber. Incorporation of Carbon nanotubes offers improved strength, by allowing the exemption of additional material without penalizing the structural integrity of the tube sets. The cohesion between these grades of fibers and Nano technology improves performance and strength, compared to singular carbon grade layups, such as singular use of just T1000G or T800 alone. This offering the ability to determine where the frame requires the most stiffness for power transfer, T1000G is the world's highest tensile strength fiber. This fiber is traditionally used for aerospace or defense applications. T800H is a slightly more Intermediate modulus, but still a high tensile strength fiber, with excellent balanced composite properties. T800H is the ideal grade to promote lateral stiffness while retaining upmost structural integrity.



OVERSIZED BOTTOM BRACKET

Stiffness is the name of the game when it comes to performing on the track. The Equipe TR boasts a huge BB shell comprised entirely of T1000G carbon. Therefore maximizing torsional rigidity. Allowing the rider to put as much power through the cranks, and into the rear wheel.


TRACK RACE TECHNOLOGY

Several iterations of the Equipe TR were developed prior to the final production model. During this evolution our Track Race Technology was developed. Extensive testing at intense levels of training and racing, along with Aerodynamic assessment lead to what you can ride today. These are the experiences that best describe what Track Race Technology is all about.


UCI APPROVED


The sport of track cycling is heavily governed by the UCI. For those looking to perform at the highest levels on the track, they will require a bike that is recognized and accepted by the UCI. The Equipe TR exceeds all the standards set in place from the UCI, and is approved for the highest levels of competition.

GEOMETRY


GEOMETRY

SIZE
45CM
50CM
52CM
54CM

STACK

471.1mm

487.1mm

501.4mm

509.3mm

REACH

386.8mm

404.5mm

422.6mm

433.5mm

SEAT TUBE

45cm

52cm

54cm

56cm

TOP TUBE

51.6cm

53.5cm

55.7cm

57.3cm

HEAD TUBE

85mm

90mm

105mm

125mm

HEAD TUBE ANGLE

72.5

72.5

72.5

72.5

SEAT TUBE ANGLE

75

75

75

75

BB DROP

60mm

60mm

60mm

60mm

CHAIN STAY LENGTH

380mm

380mm

380mm

380mm

WHEEL BASE

931mm

951mm

974mm

990mm

RIDER HEIGHT

<164cm

164cm-172cm

170cm-177cm

>177cm
