$2,999.00
| /

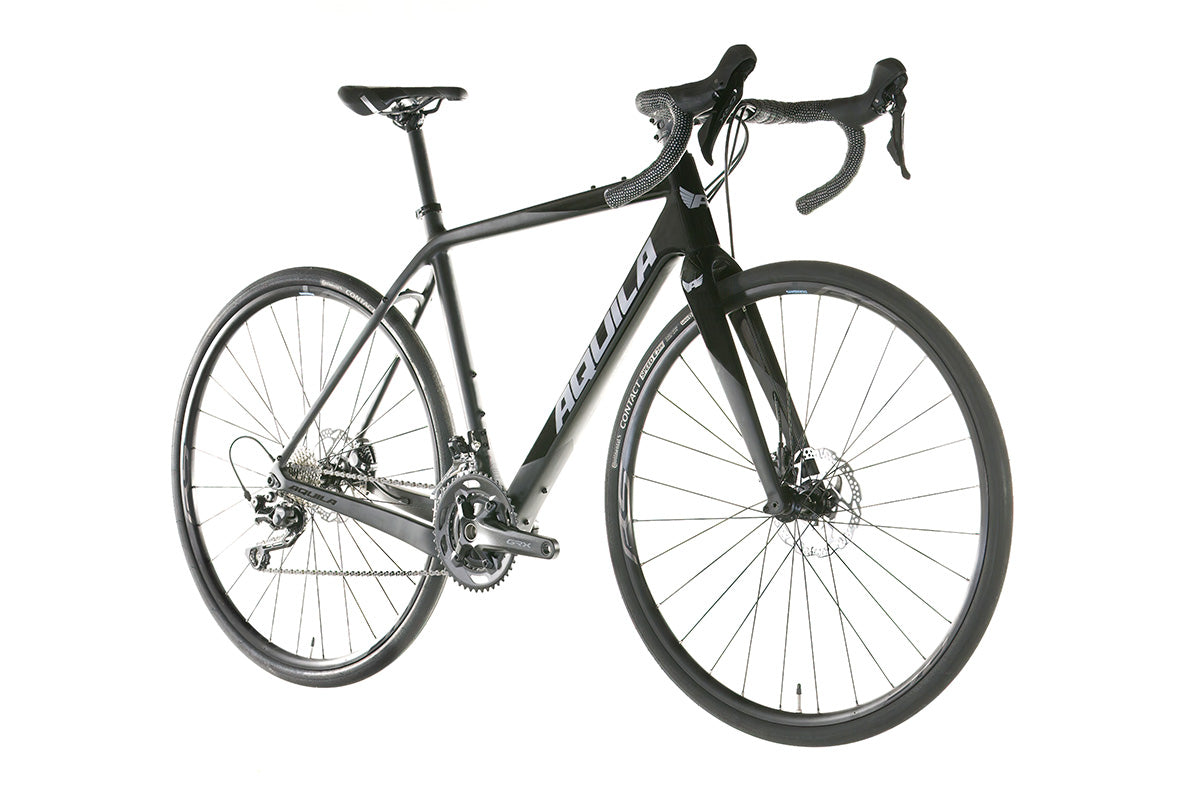

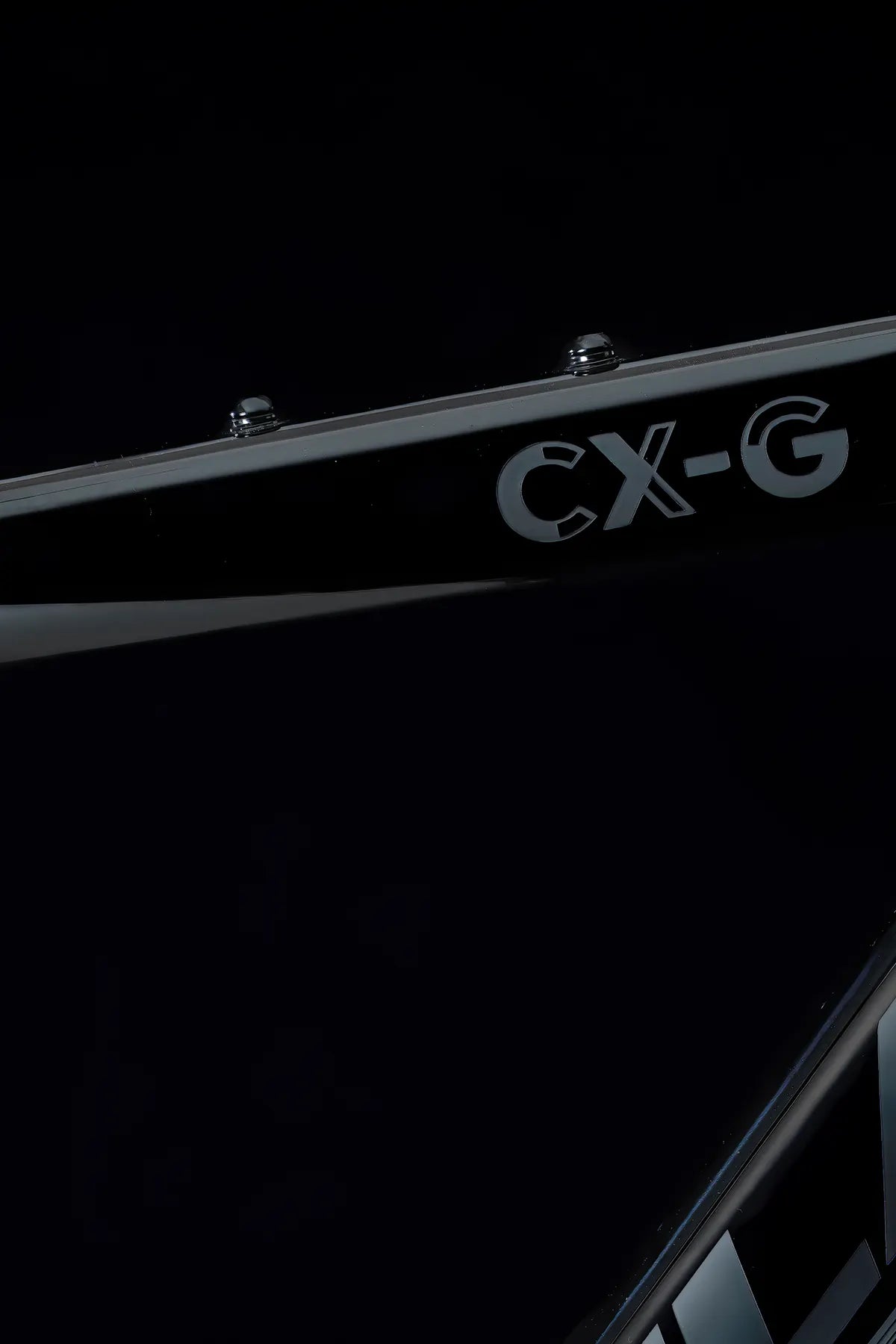

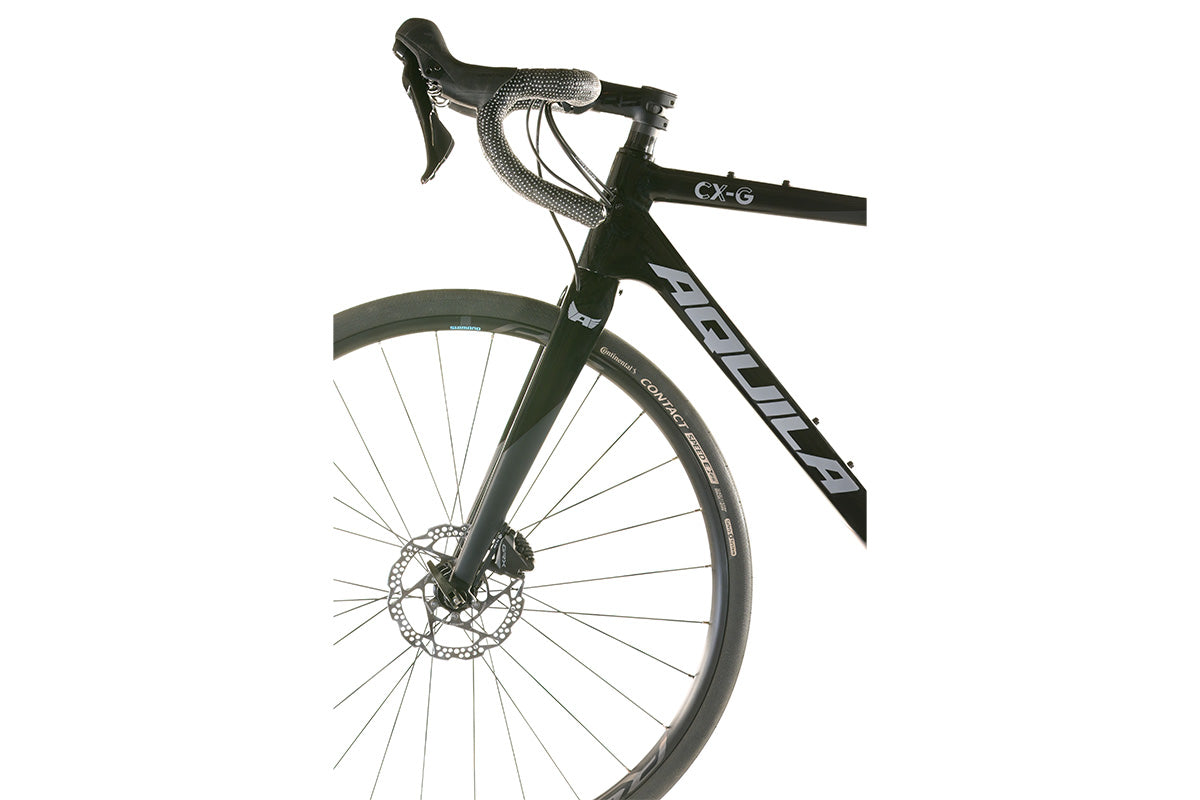

Frame: Aquila CX-G
Headset: Aquila

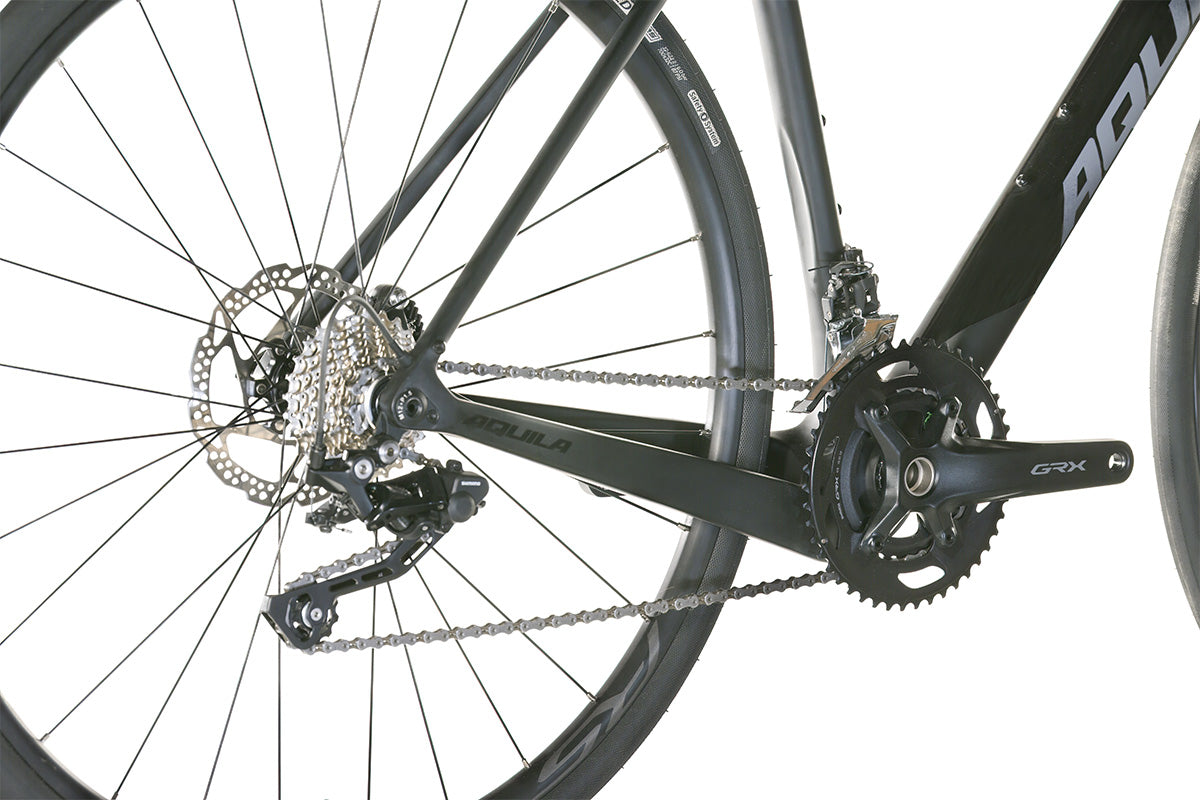

RD: Shimano GRX RD-RX400
FD: Shimano GRX FD-RX400
Shifters: Shimano GRX ST-RX400

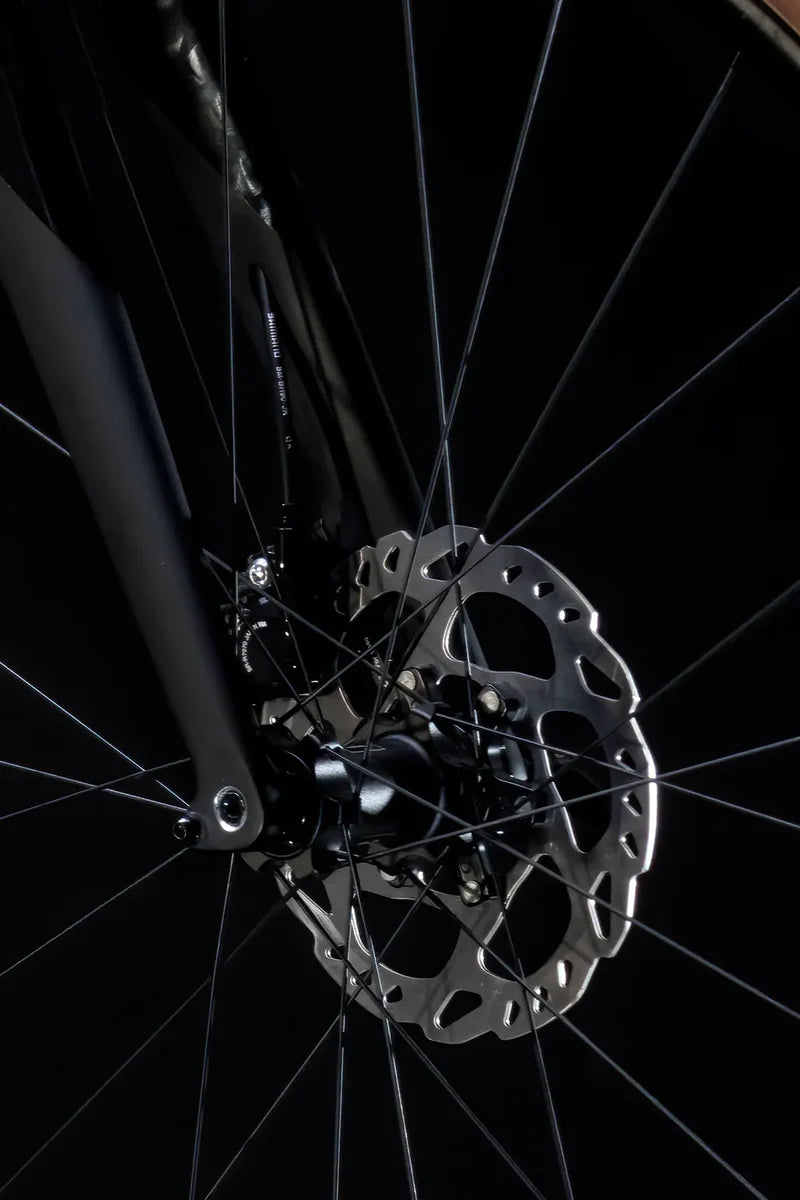

Rotors: Shimano, 160mm / 140mm
Cassette: Shimano CS-HG500-10 Speed 11-34T
BB: Shimano BB-RS500-PB

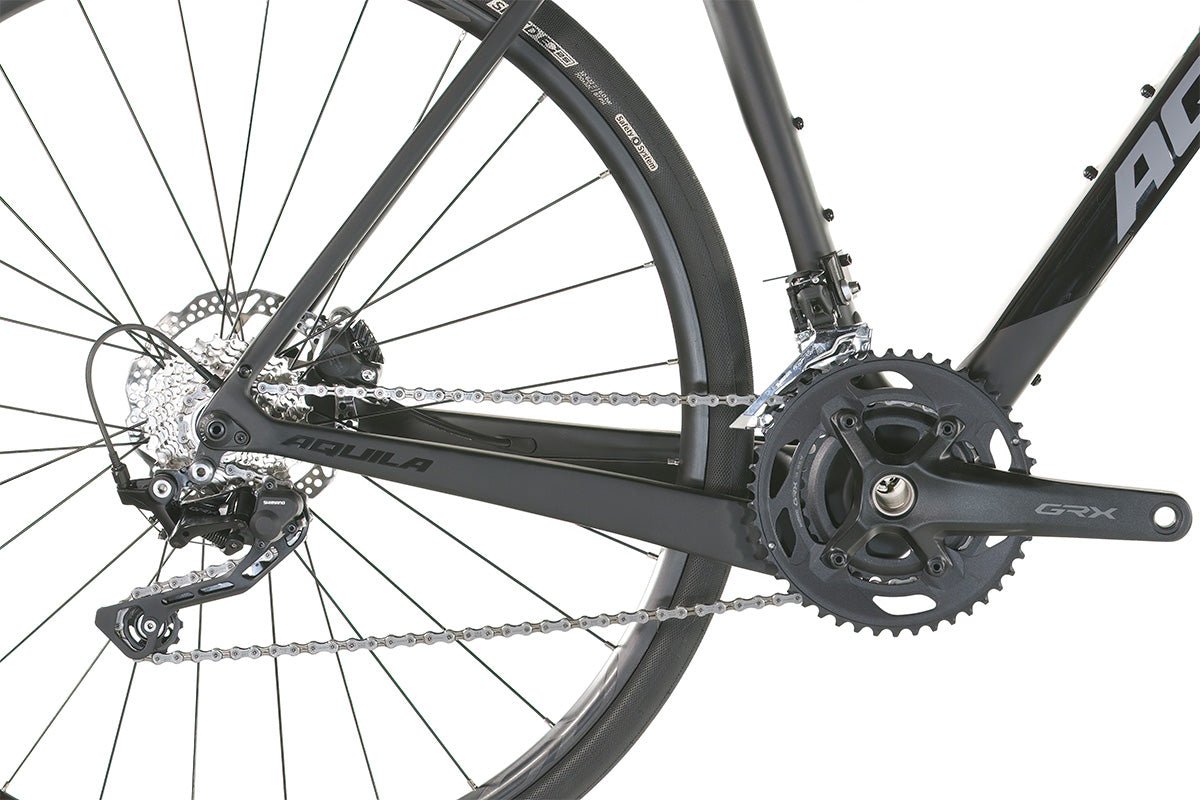

Crankset: Shimano FC-RX600-10 speed 48-31T
Chain: Shimano CN-HG54 10 Speed

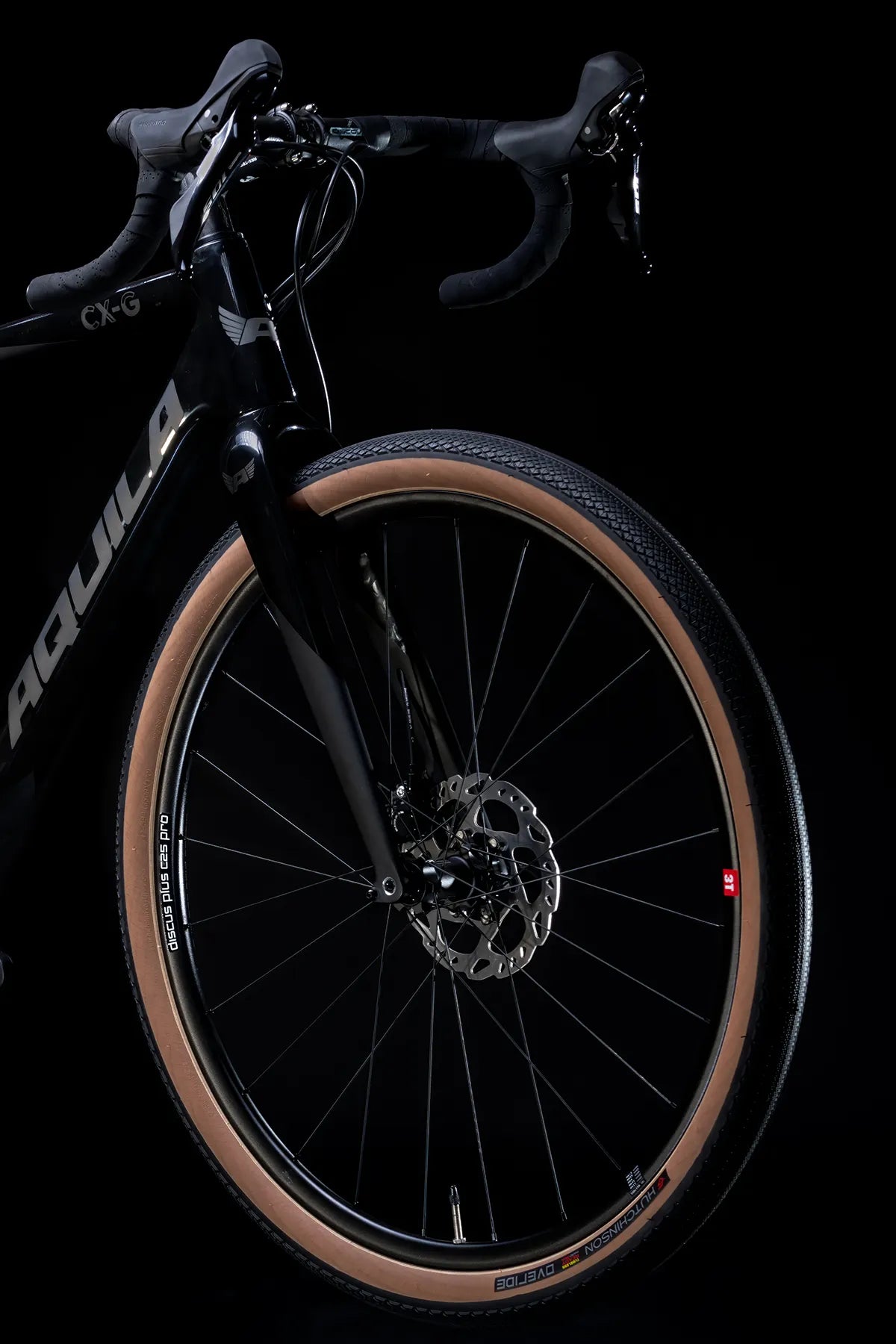

Wheelset: Shimano WH-RS 370 - CL TL

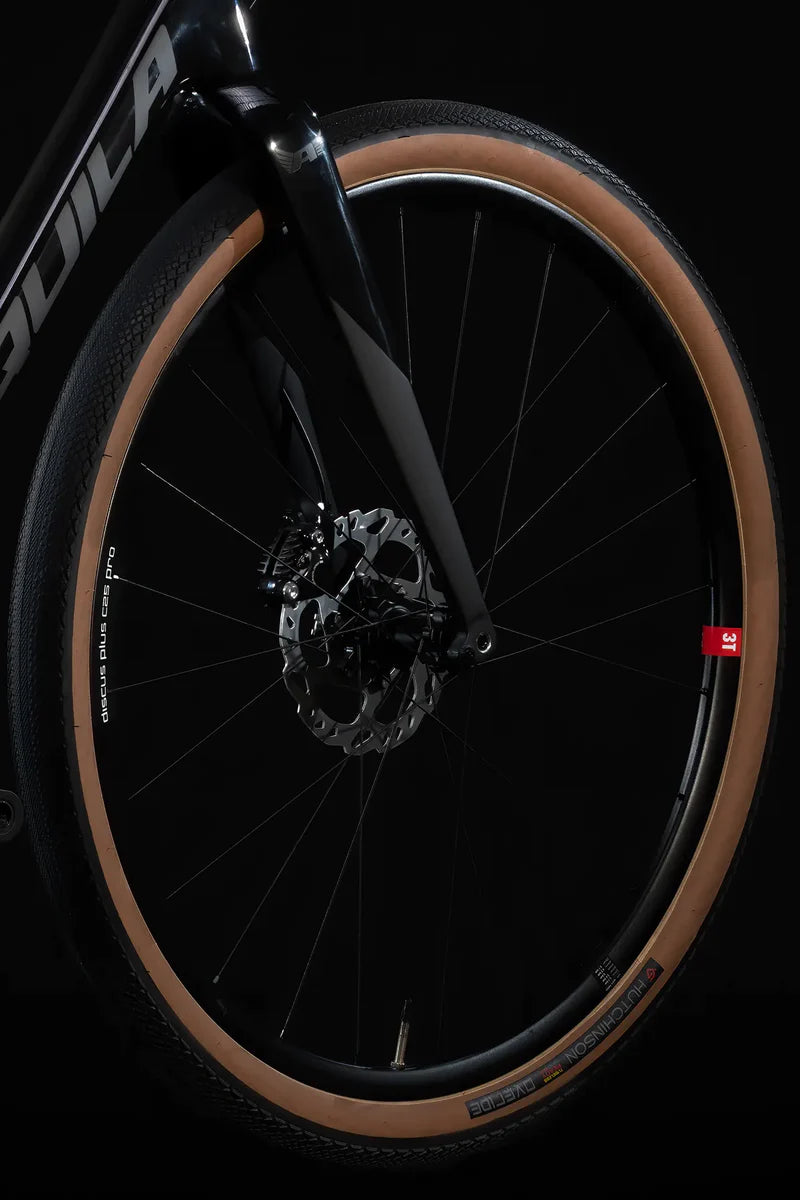

Tires: Hutchinson Overide

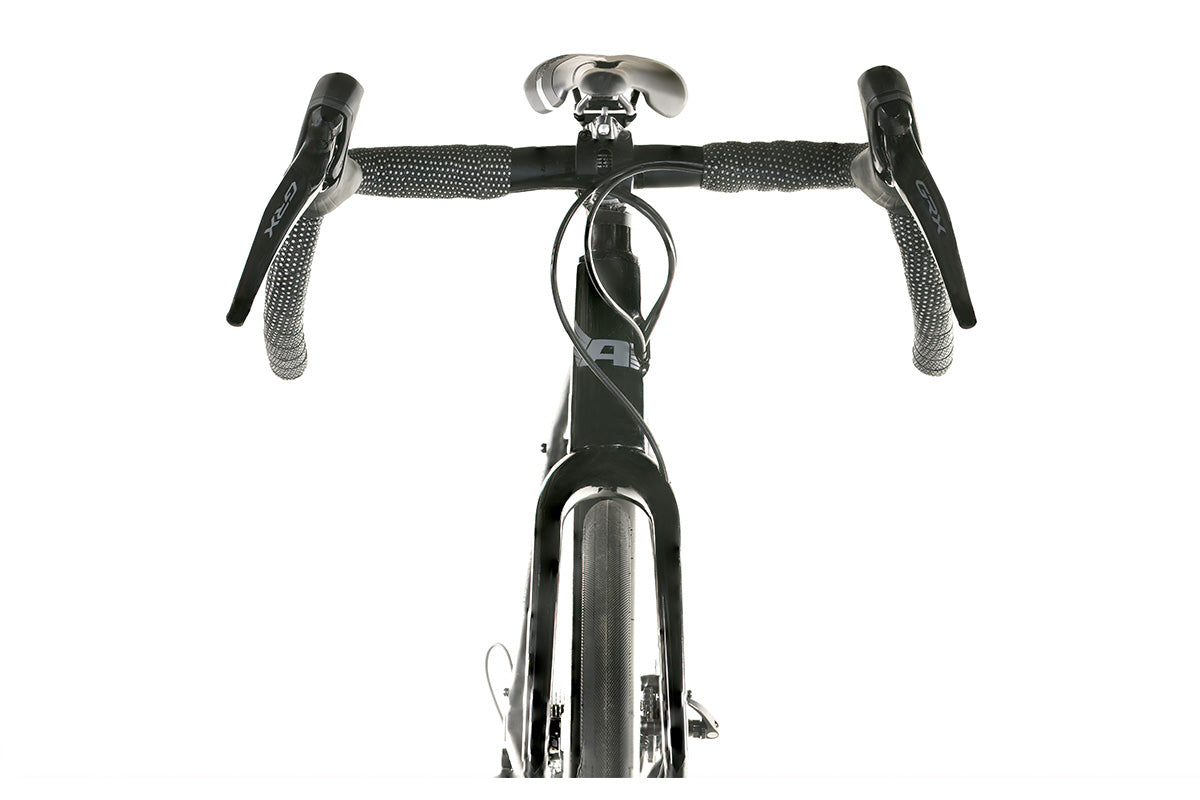

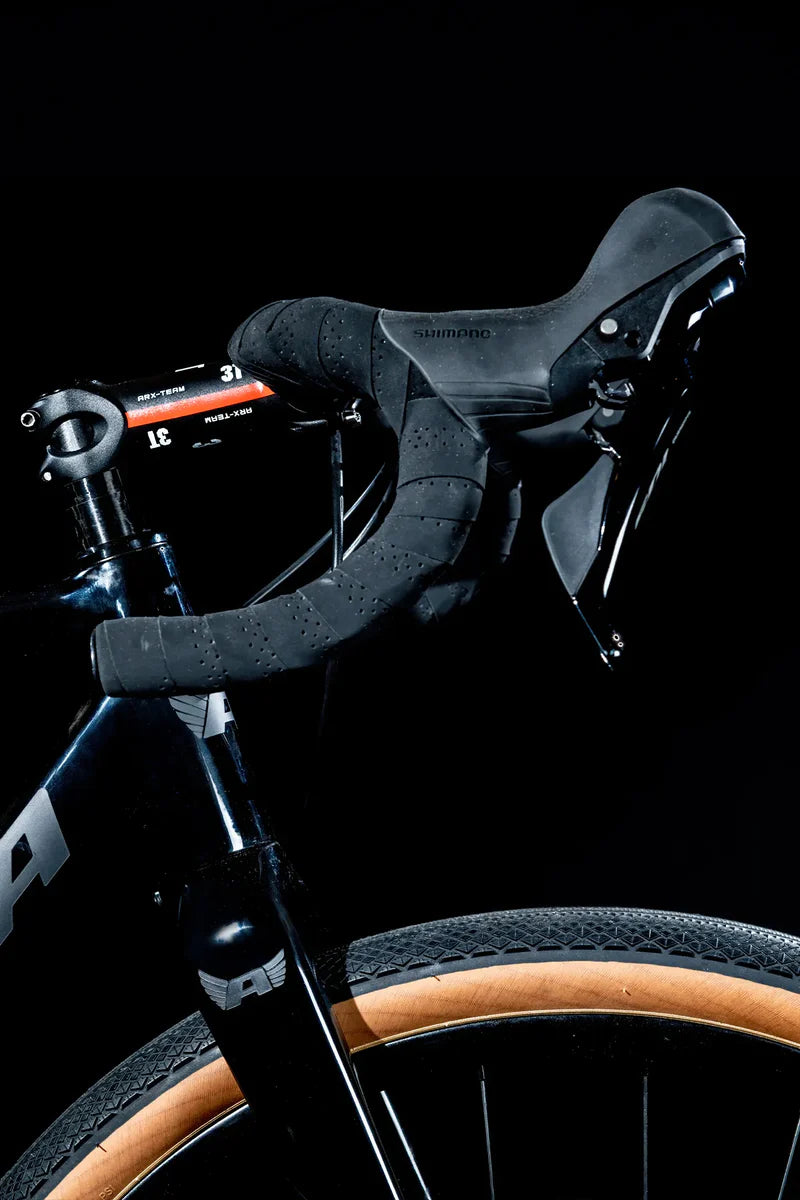

Bar: Realspeed ErgoEndurance Alloy
Stem: Realspeed RS-10 Alloy
Seat Post: Realspeed Carbon 27.2
Saddle: Selle Italia Boost X3
Tape: Realspeed Poly 3M
Every road is open for a bike designed to unlock fun where ever you choose to ride. Whether that is ripping up some single track, exploring unchartered roads, or going on an adventure. There is very little that the CX-G cannot do.
With the explosion of Gravel bike movement, there is a pre requisite of features that are must haves
1180gr (Medium Frame)
Run a 700 wheelset, or 650B wheelset and adapt to more demanding terrain.
A top a tube compartment, or an additional water bottle cage on the underside of the down tube.
Max tire: 700 x 42C and 27.5 x 2.2"
FOR INCREASED CONTROL AND LEVERAGE
|
|
49CM |
52CM |
54CM |
56CM |
58CM |
|
ST |
490 |
520 |
540 |
560 |
580 |
|
TT |
520 |
535 |
550 |
565 |
580 |
|
HT |
120 |
135 |
150 |
165 |
185 |
|
HA |
70.5 |
71 |
71.5 |
72 |
72 |
|
CA |
74.5 |
74 |
73 |
73 |
73 |
|
BB |
72 |
72 |
72 |
72 |
72 |
|
RC |
435 |
435 |
435 |
435 |
435 |
|
FC |
594 |
599 |
600 |
610 |
625 |
|
Offset |
50 |
50 |
50 |
50 |
50 |
|
WB |
1018 |
1024 |
1025 |
1035 |
1050 |
|
Stack |
545 |
562 |
577 |
594 |
613 |
|
Reach |
369 |
374 |
374 |
383 |
393 |
