700 grams. One piece. Zero compromise.

The Aquila EVO R Gen 3 is the product of everything we've learned — from the wind tunnel, the road, and the riders who push our bikes to their limits. Mono-Mold construction eliminates the bonded joints of conventional carbon manufacturing, delivering a frame with superior structural integrity and a fighting weight of just 700g in a size medium with paint.
Refined CFD analysis guided a narrower, more aerodynamically intelligent tube profile. The fork blades open wider, managing airflow through one of the most critical zones of the frame. Every detail has been tightened, every gram questioned.
Three generations in. This is the EVO R at its finest.

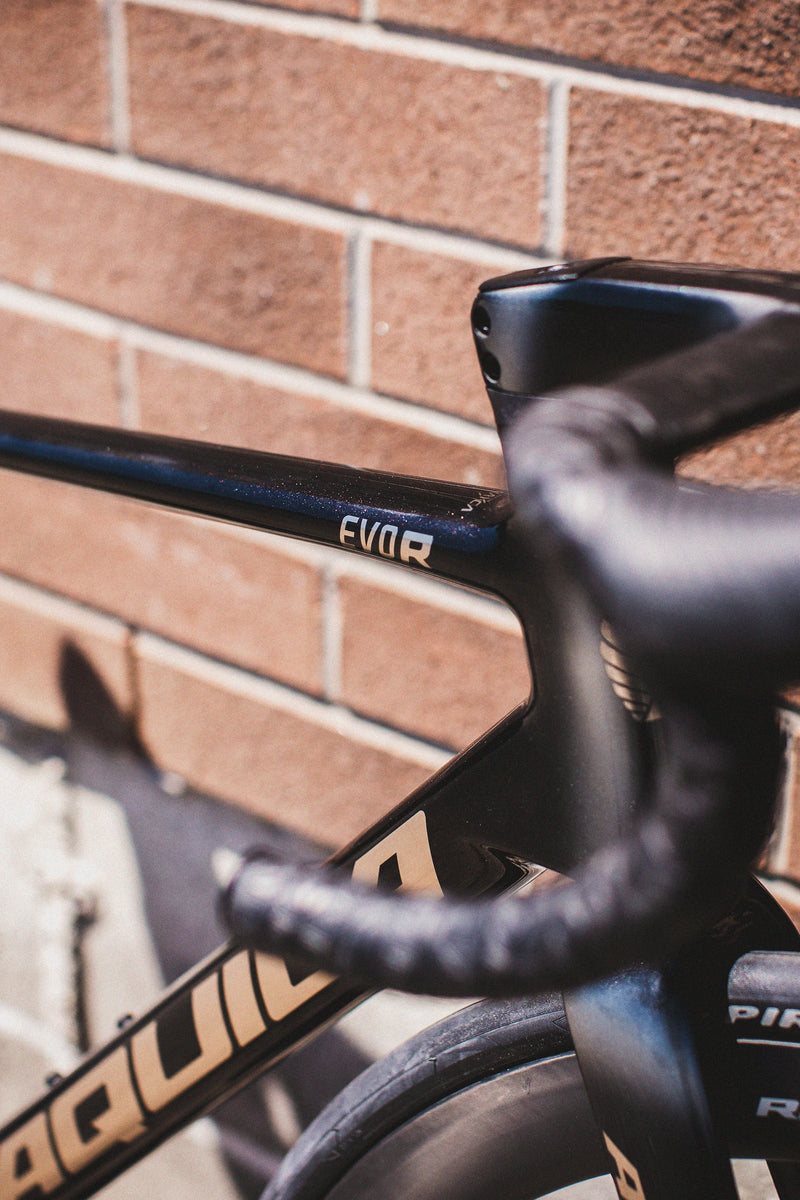

Mono-Mold Technology

Compared to traditional carbon frame manufacturing processes. Where the construction of the frame comprises of 2-3 separate sections which are molded separately and then bonded together. We construct our frame using Mono-Mold technology. A true one-piece mold to produce the frame. The entire frame is formed as a single unit, eliminating the need for subsequent adhesive bonding of individual tubes. The key advantages of this approach is superior structural integrity, greater resistance to stress and fracturing, and a lighter, more reactive frame.

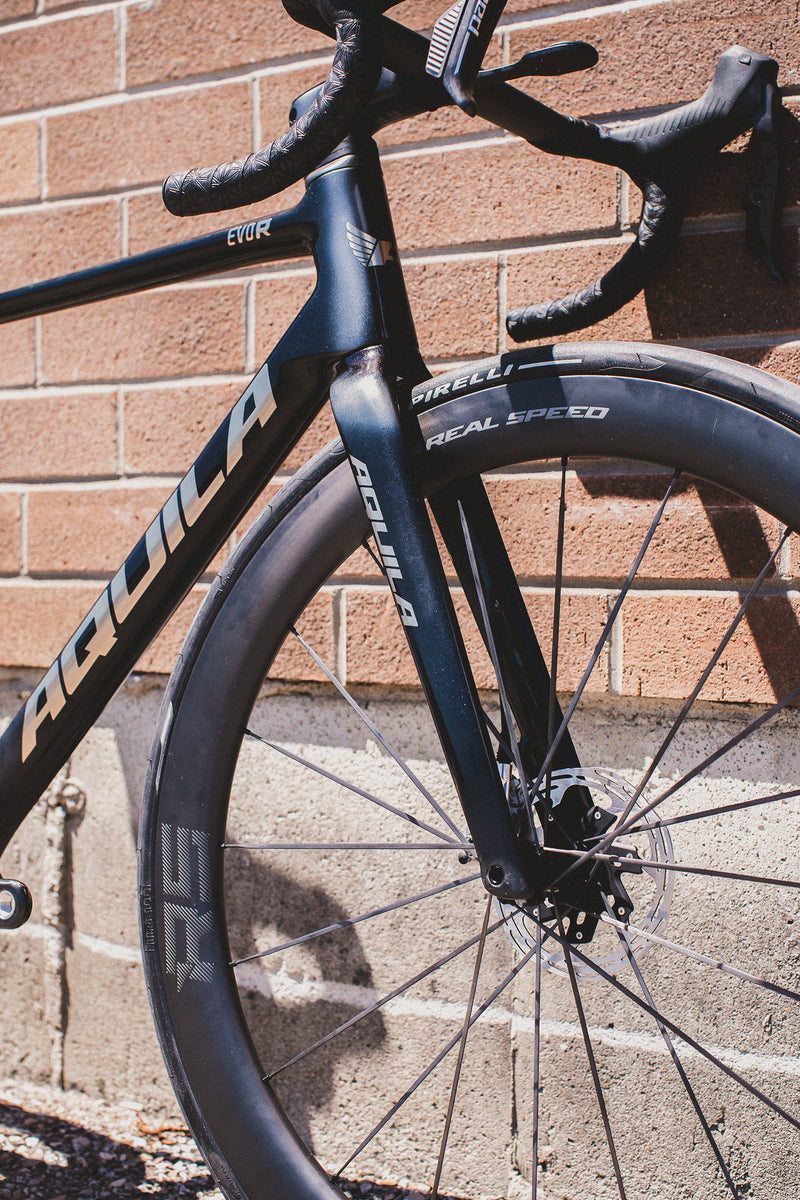

Reduced Weight

Omission of adhesives and connectors and a purer material composition typically reduce frame weight by tens to hundreds of grams compared to tube-to-tube construction. In a size medium the previous generation EVO R tips the scales at 890 grams. The new EVO R trims down to a fighting weight of 700 grams with paint in the equivalent size.

AERO IS NARROW

In order to push the Evolution of the EVO R, we had to dig back into the details. Through further CFD analysis, we started to pinpoint where the peak of aerodynamics lie at the common yaw angles that a bike is exposed to. At those points we started to round off, and reduce the size of the tube shapes of the frame to facilitate aerodynamic optimization. Furthermore we opened the distance between the blades of the front fork by 1cm on each side, increasing air flow through a critical area of the frame. Its like hiding from the wind…

Frame

Frame Aquila EVO R
Headset EVO R
Seat post EVO R

Drivetrain

FD RED AXS E1
RD RED AXS E1
Shifters RED AXS E1
Cassette CS XG 1290
Chain SRAM CN RED E1 12 Speed
Crankset FC RED AXS E1 DUB
Bottom bracket BB-RS500-PB

Wheels & Brakes

Wheelset Realspeed RS 40TL – T800 – RS Hub
Tires Vittoria Corsa N.EXT TLR
Rotors SRAM Paceline X

Cockpit

Bars EVO R Integrated
Stem EVO R Integrated
Tape Supacaz

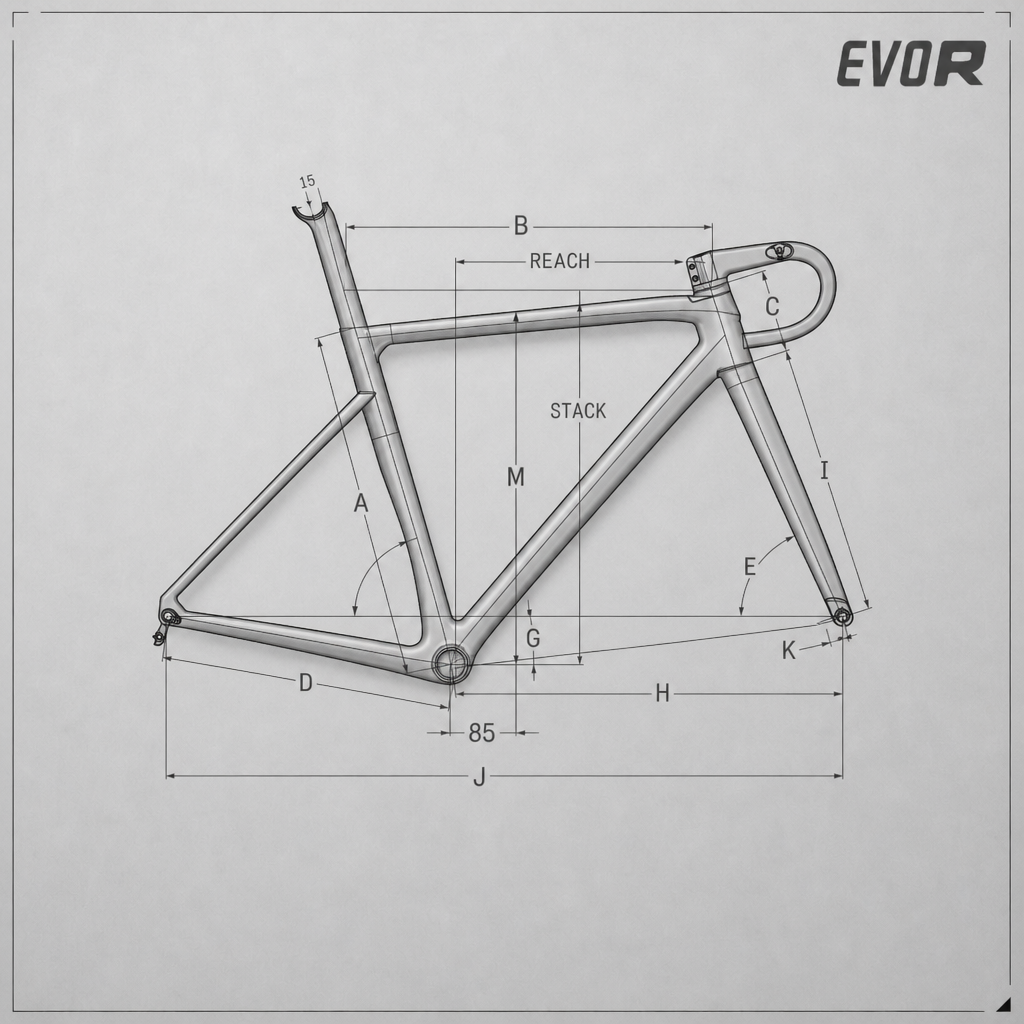

A 430

B 505

C 108.5

D 410

E 71°

F 75°

G 71

H 571

I 370

J 971

K 45

REACH 368

STACK 510

M 455

STAND OVER 727

TRAIL 71.5

1 Measurements

2 Body Type

3 Riding Style

4 Your Fit

Your Measurements

Accurate measurements are the foundation of a perfect fit.

Height (cm) Please enter a height between 140 and 220 cm

Inseam (cm) Please enter an inseam between 65 and 100 cm

Your Body Type

Proportions matter as much as height. This helps us dial in your stack and reach.

Gender

Male Female Other

Please select an option

Torso & Arm Proportions Please select your proportions

Your Riding Style

How you ride shapes how your bike should fit. Pick the style that best describes you.

Race

Aggressive position, max aero, low stack

Endurance

Balanced comfort & speed for long rides

Gran Fondo

Upright comfort, sportive & charity rides

Touring

Maximum comfort, stability & load capacity

Please select a riding style

Your Recommended Frame

High confidence

Book Your Fitting

Aquila Fit Kit Reference

Height	Inseam	Frame
<156cm	70–72cm	45–48cm
~164cm	73–75cm	48–50cm
164–172cm	76–78cm	50–52cm
172–175cm	79–80cm	52–54cm
172–175cm	81cm	54–56cm
178–182cm	82–83cm	54–56cm
178–182cm	84cm	56–58cm
180–188cm	85–86cm	56–58cm
180–188cm	87cm	58–60cm
188–195cm	88–89cm	58–60cm
188–195cm	90cm	60cm+
>195cm	91–93cm+	60cm+
