Designed in Canada

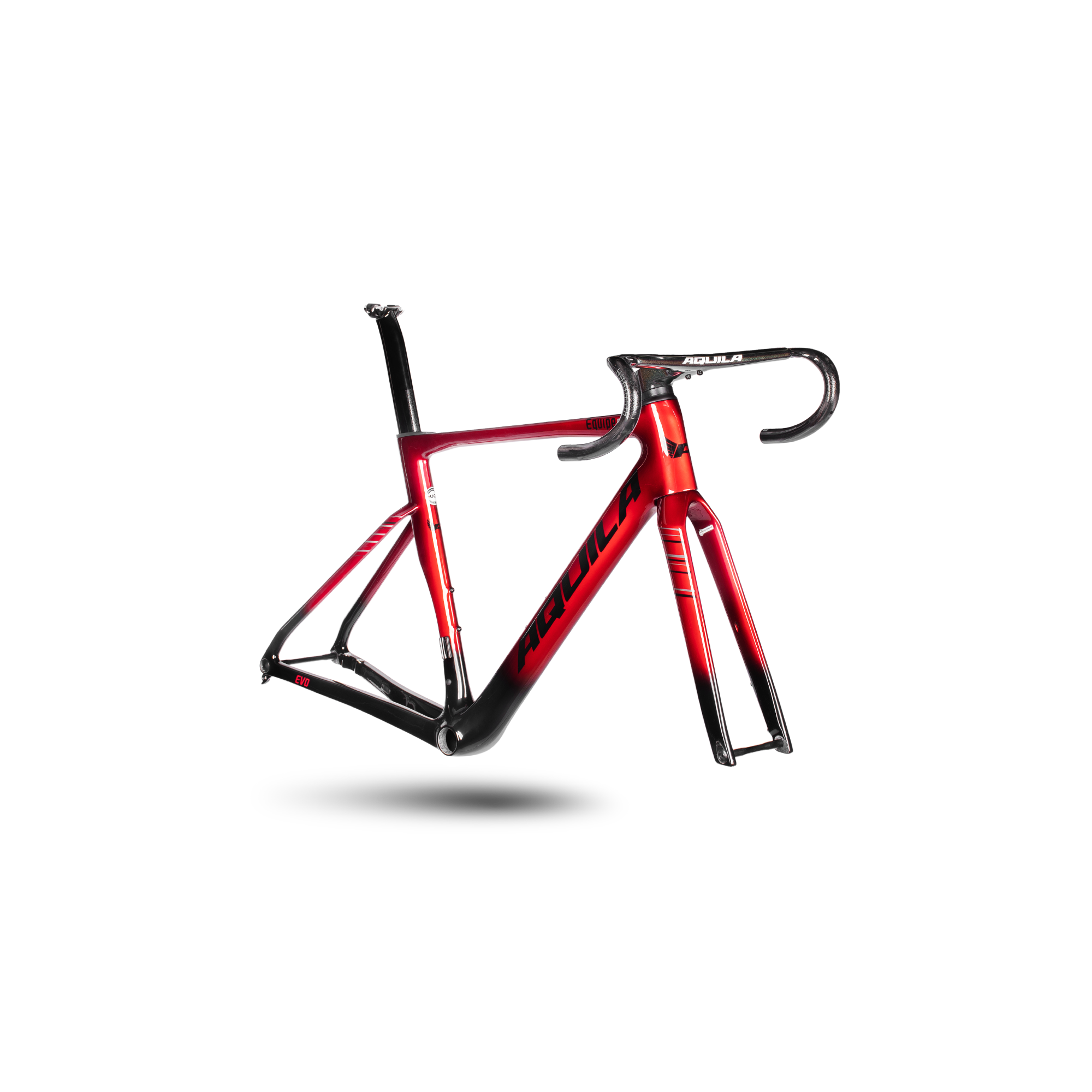

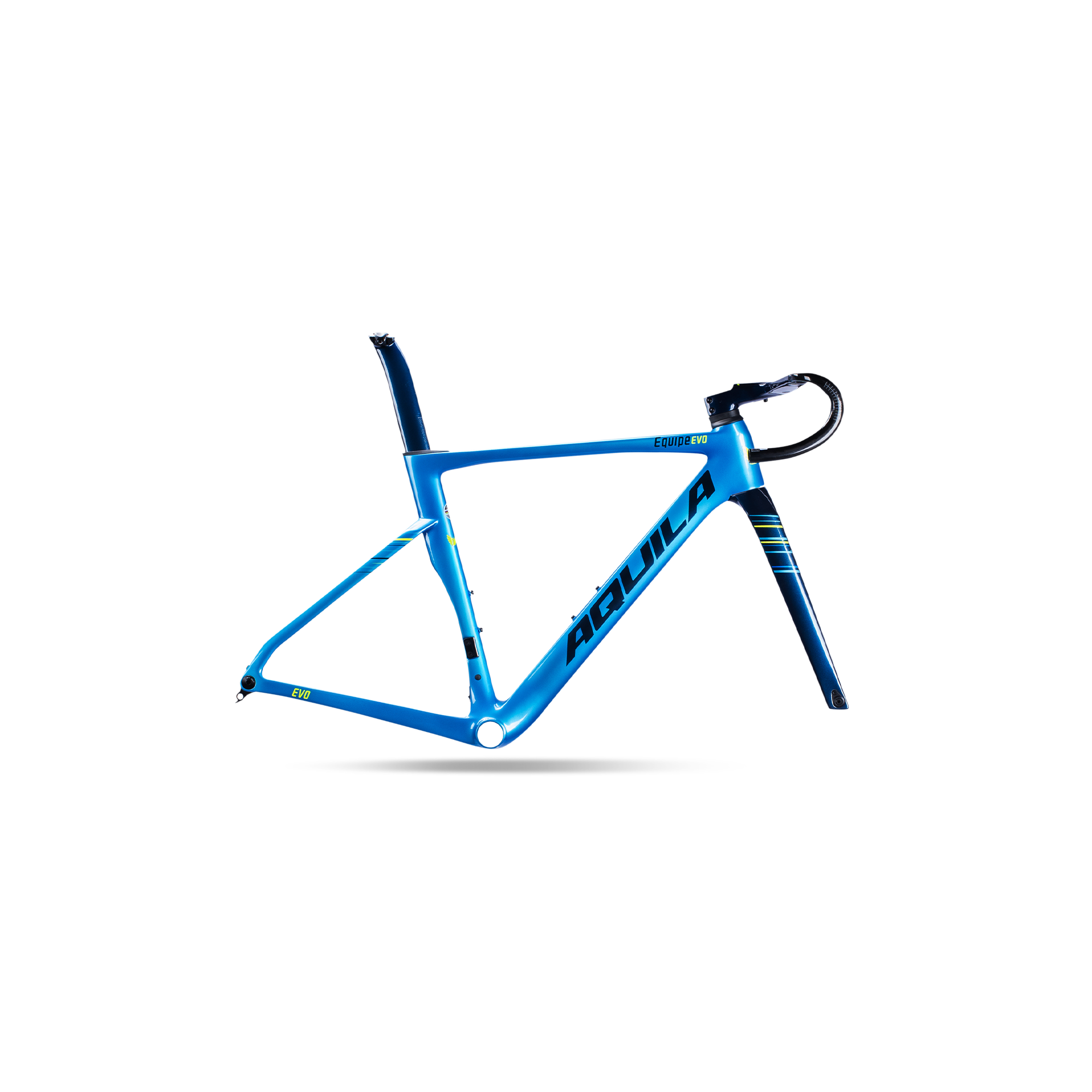

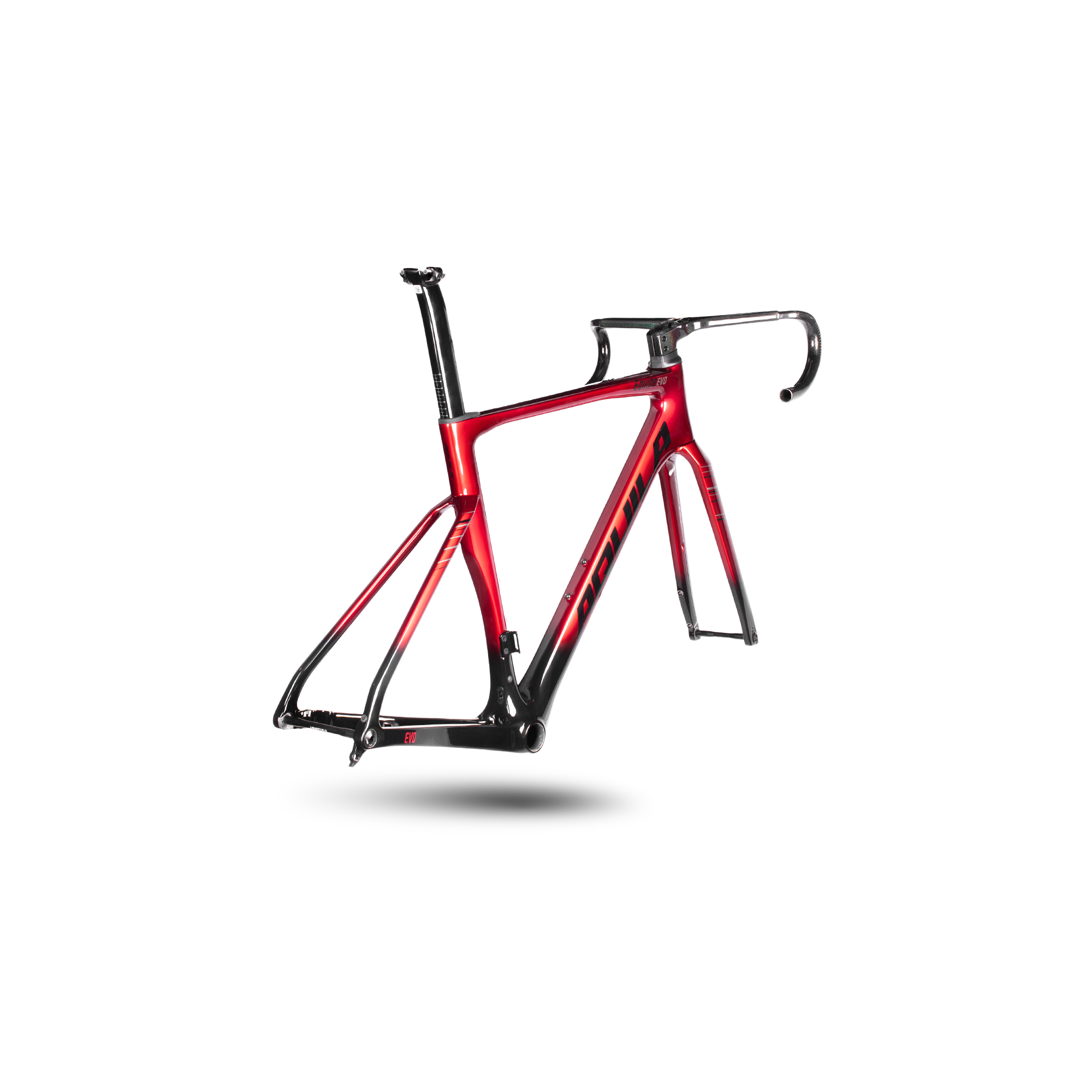

EVO Module
$2,899.00
FEATURES

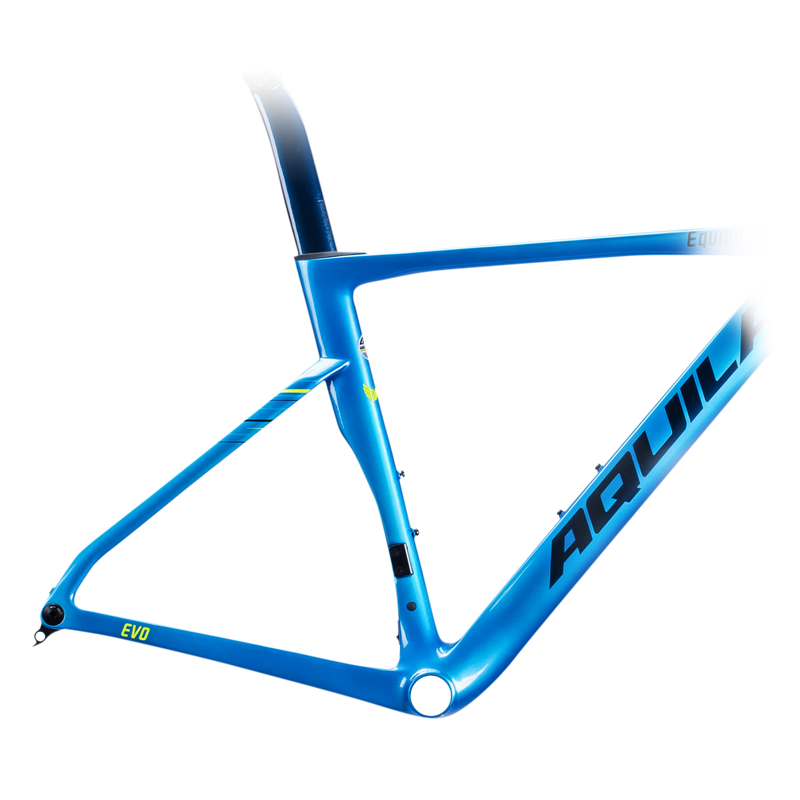

DESIGN THROUGH CFD
For everything that the previous Equipe brought to the road, it did lack in the aero department. With the understanding that improvements in aerodynamic efficiency can come at a price of increased weight, and increased vertical stiffness, we had to think out of the box in how we could improve in that area, without disrupting the cherished mannerisms of the previous Equipe. Through the use of CFD software, we needed to grasp an understanding as to where the breaking point for aerodynamics was throughout the different shapes of the frame. When its peak was met, we started to change the shape of the different tubes on the frame, rounding them off to reduce weight and encourage more vertical compliance.

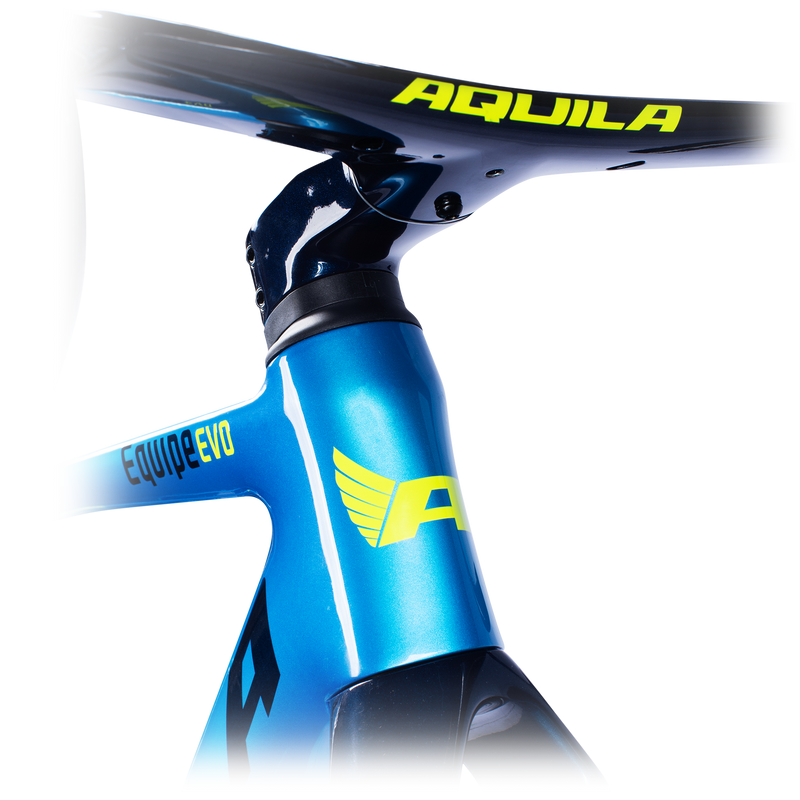

FULL CABLE INTEGRATION
The function and form of concealing the cables is undeniable. Not only because of its super clean appearance, but furthermore adds to the aerodynamic prowess of the bike. The Equipe EVO features the new ACR integration system from FSA, which allows all the cable to route through the bar, stem, headset and into the head tube, where the cables are distributed throughout the frame.
BIGGER IS BETTER
It’s no secret that larger tires on road bikes can untap some hidden efficiency. The days of narrow 23mm, cranked up to 120psi + are in the rear view. Wider tires present the ability to run lower pressures, which help to shorten the linear contact patch on the pavement, therefore allowing the wheels to turnover faster. The lower pressures also allow for the tire to take on a more efficient shape which creates greater adhesion while rolling, improved cornering, and increases comfort, without adding more rolling resistance. The Equipe EVO allows for a best in class max tire width of 32mm.
SPECIFICATIONS
Frame
- Frame Aquila Equipe EVO
- Headset Equipe EVO
- Seat post EVO
Drivetrain
- FD N/A
- RD N/A
- Shifters N/A
- Cassette N/A
- Chain N/A
- Crankset N/A
- Bottom bracket BB-RS500-PB
Wheels & Brakes
- Wheelset N/A
- Tires N/A
- Rotors N/A
Cockpit
- Bars Equipe EVO Integrated
- Stem N/A
- Tape N/A

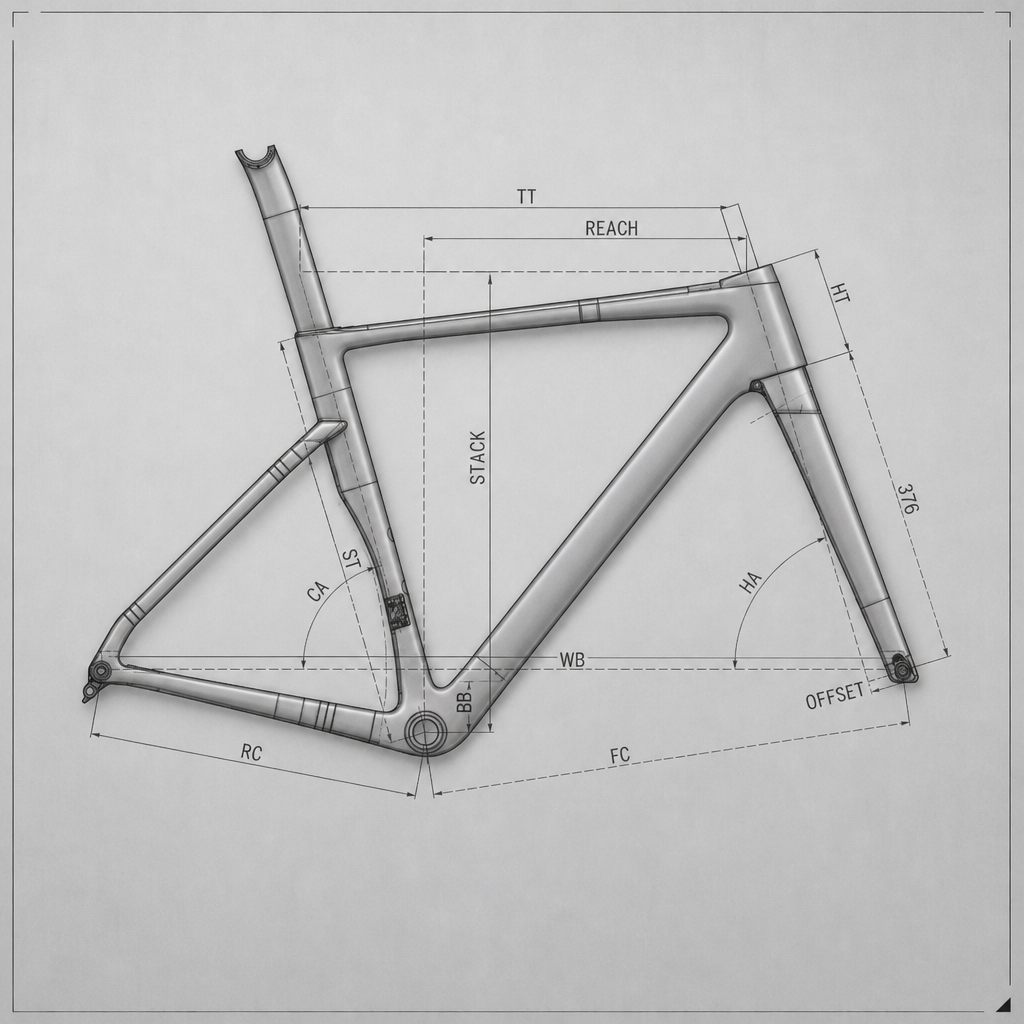

GEOMETRY
Seat tube (ST)
420
Top tube (TT)
498
Head tube (HT)
95
Head angle
70°
Seat angle
75°
Chainstay
406
Wheelbase
967
Stack
500
Reach
364
BIKE SIZE CALCULATOR
Precision Fit
Find Your Perfect Aquila Frame Size
Expert fitting guidance based on your measurements
1
Measurements
2
Body Type
3
Riding Style
4
Your Fit
Aquila Fit Kit Reference
| Height | Inseam | Frame |
|---|---|---|
| <156cm | 70–72cm | 45–48cm |
| ~164cm | 73–75cm | 48–50cm |
| 164–172cm | 76–78cm | 50–52cm |
| 172–175cm | 79–80cm | 52–54cm |
| 172–175cm | 81cm | 54–56cm |
| 178–182cm | 82–83cm | 54–56cm |
| 178–182cm | 84cm | 56–58cm |
| 180–188cm | 85–86cm | 56–58cm |
| 180–188cm | 87cm | 58–60cm |
| 188–195cm | 88–89cm | 58–60cm |
| 188–195cm | 90cm | 60cm+ |
| >195cm | 91–93cm+ | 60cm+ |
