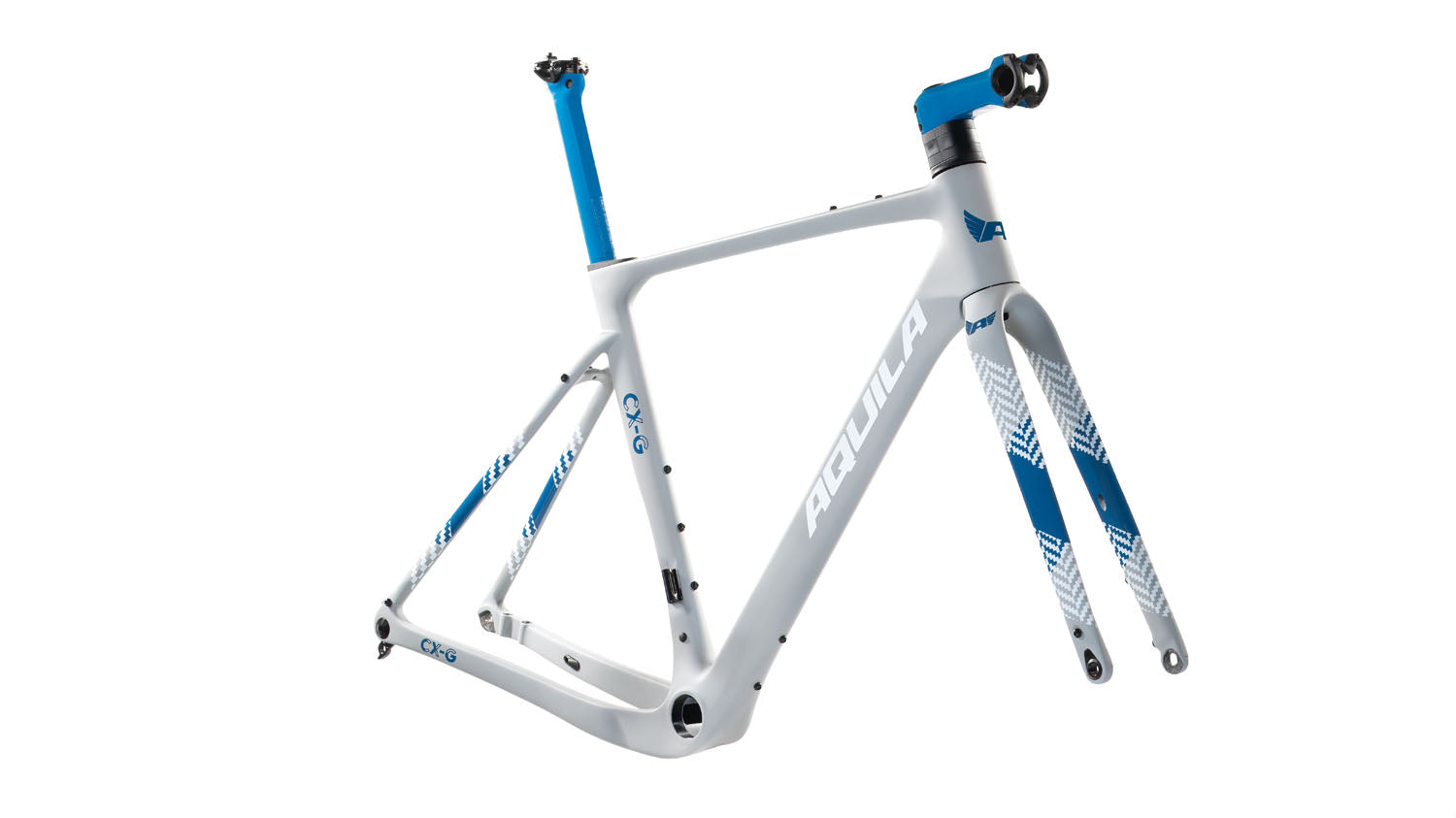

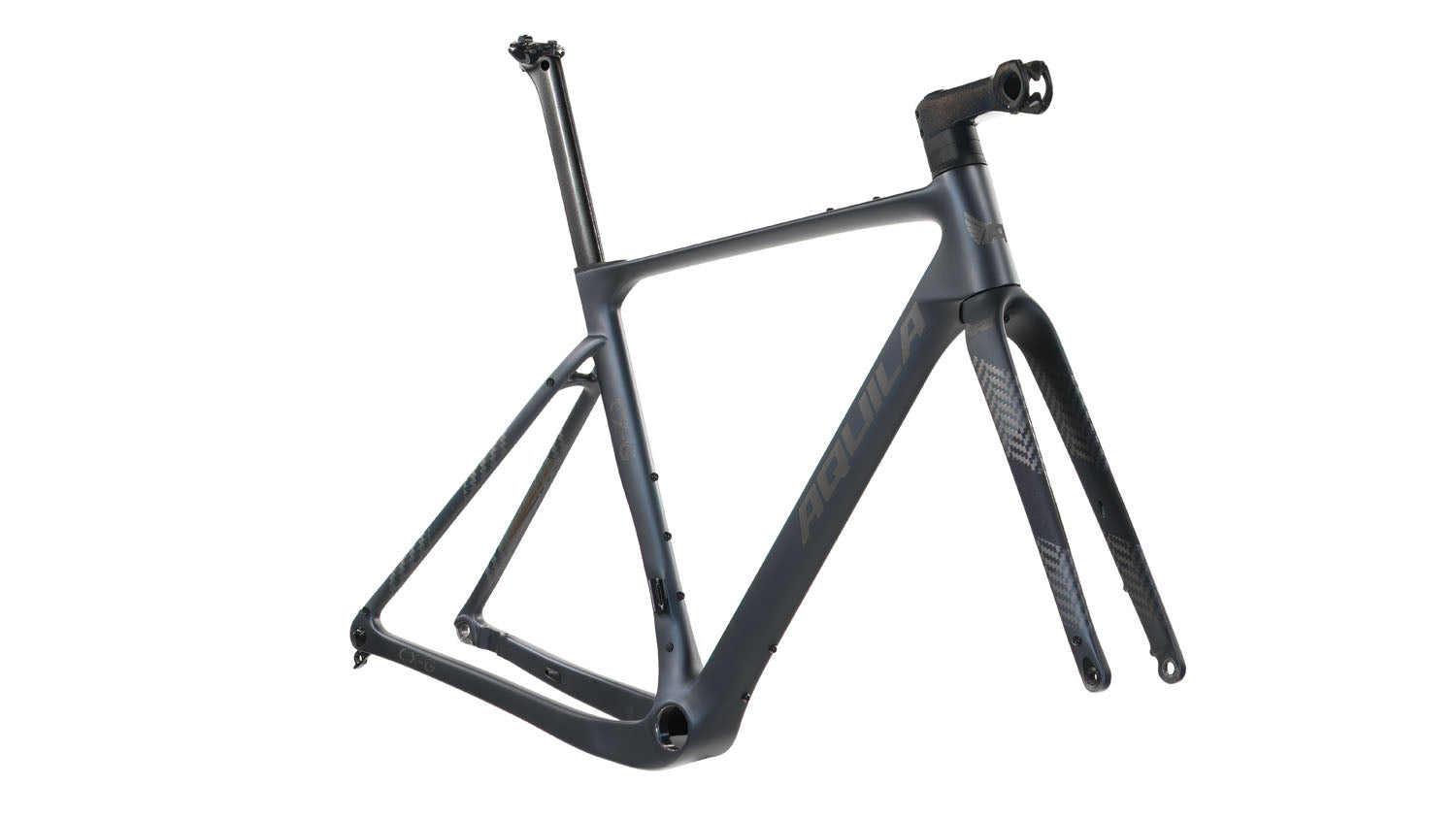

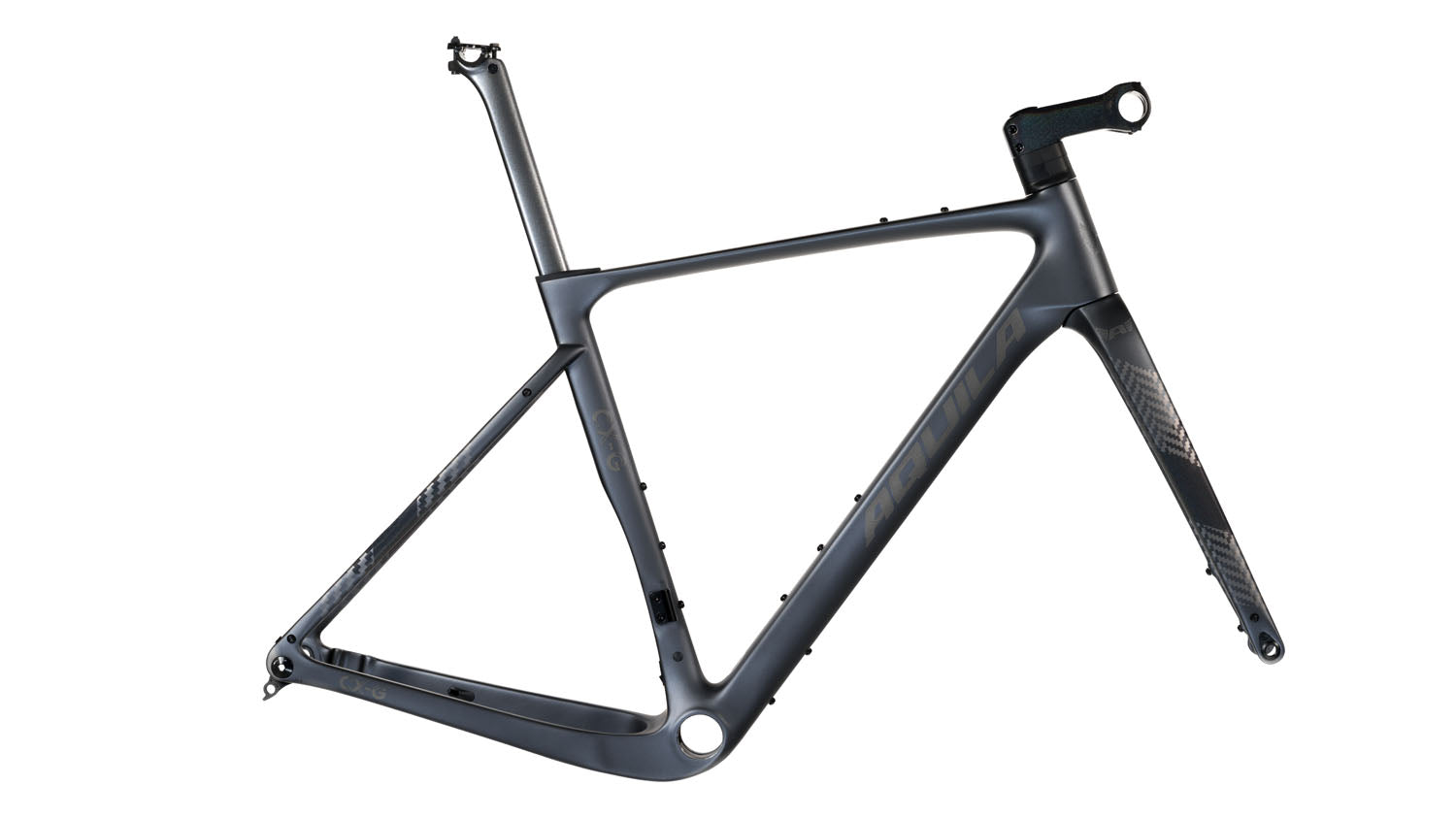

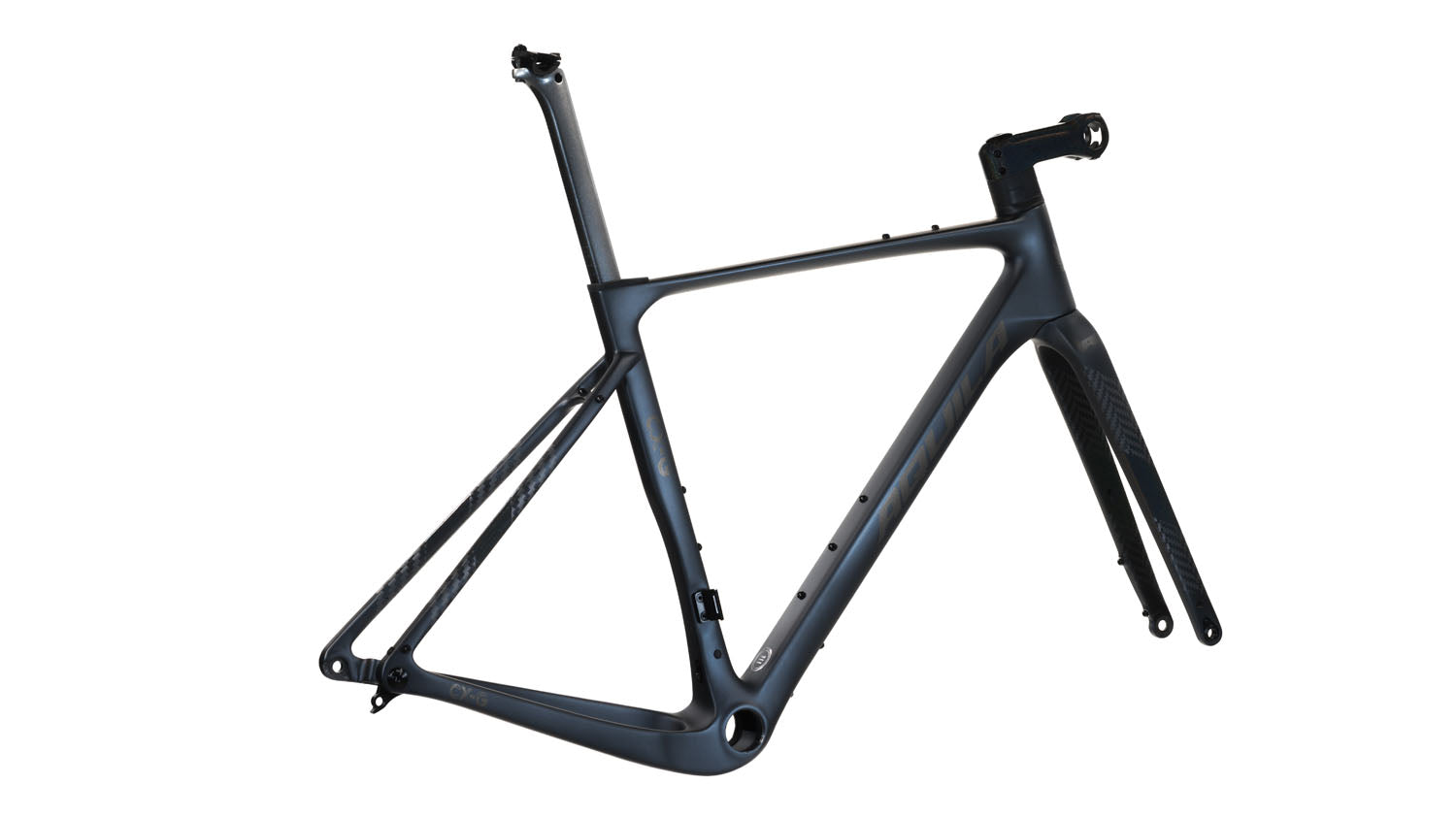

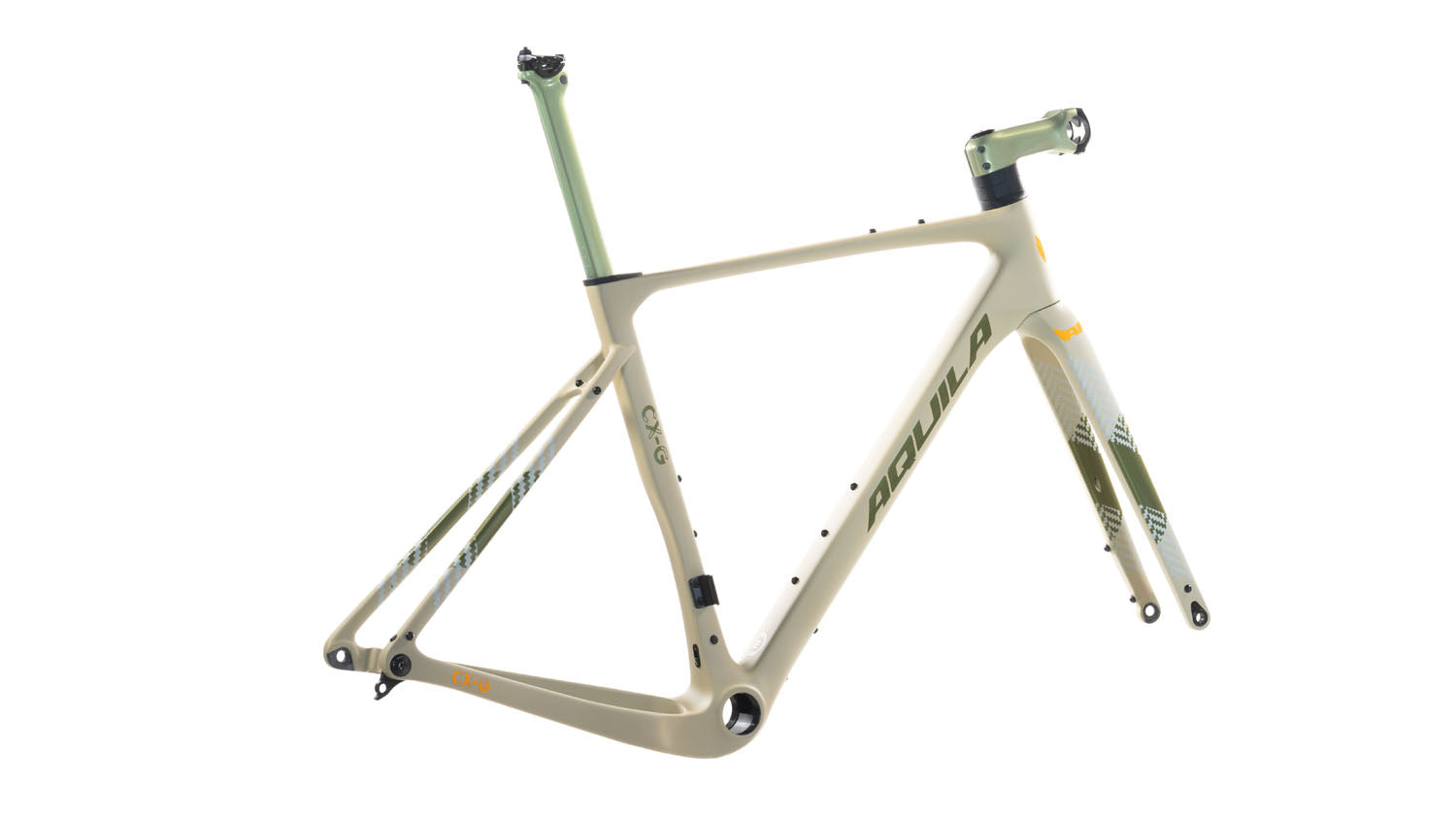

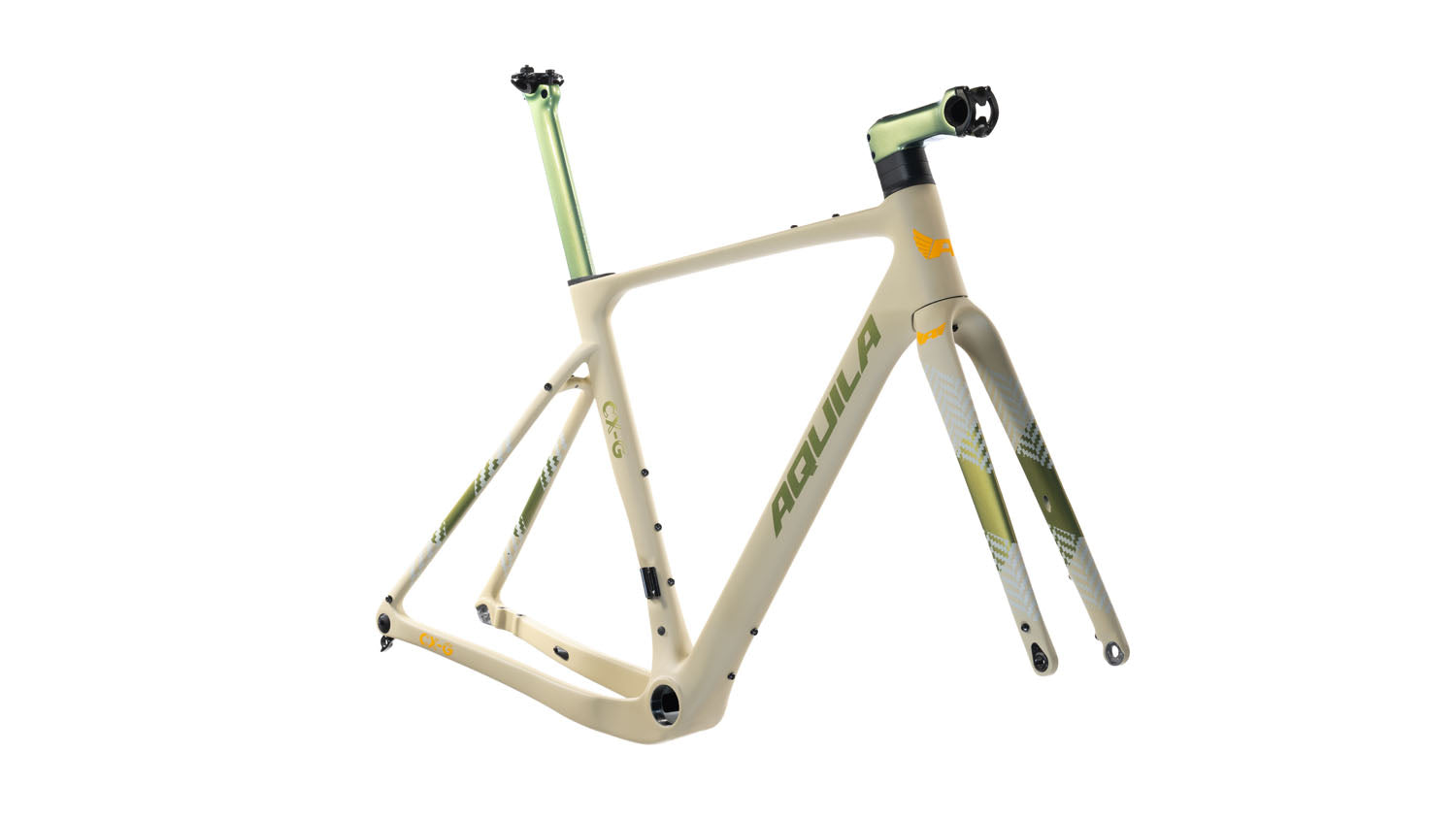

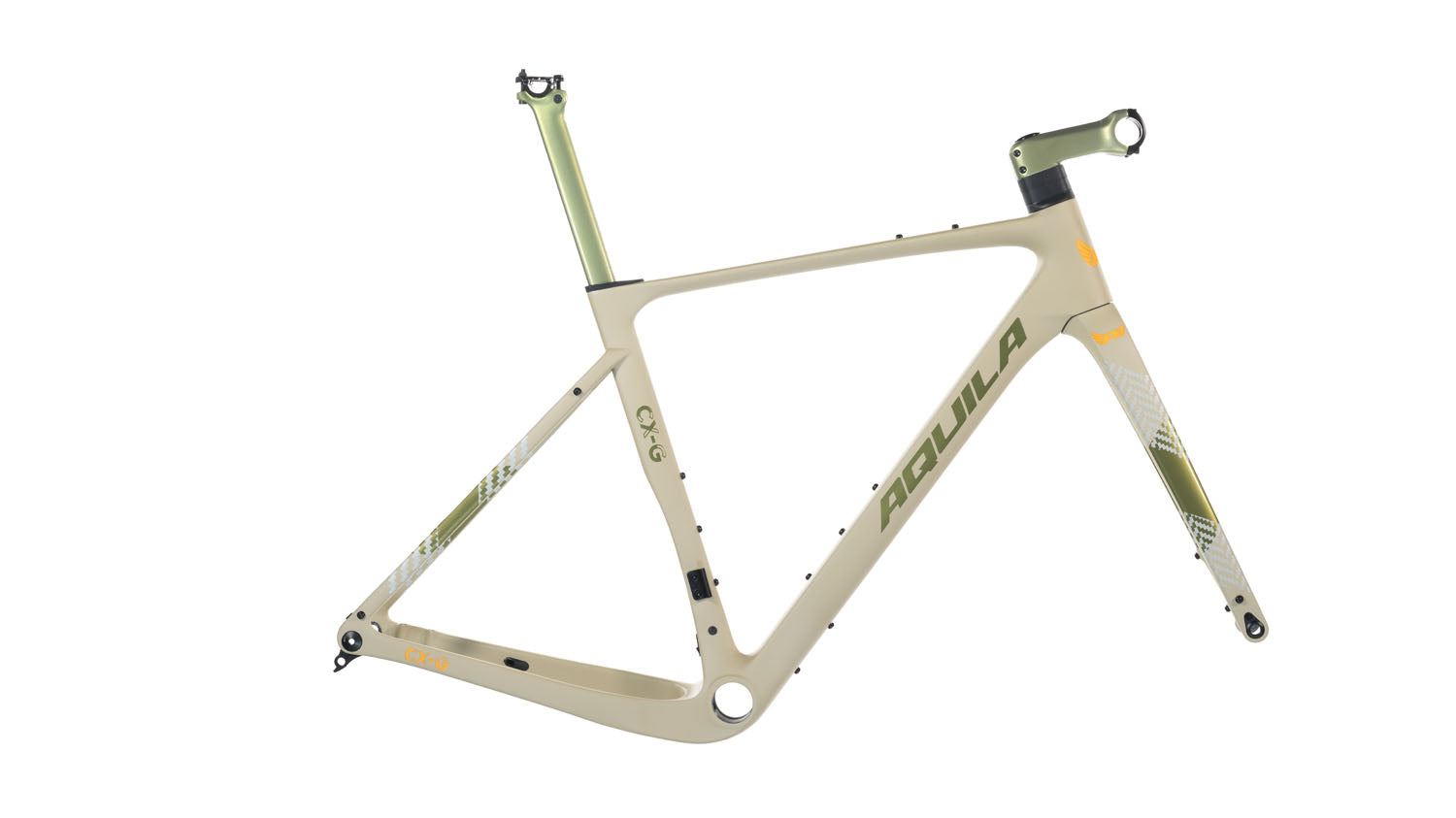

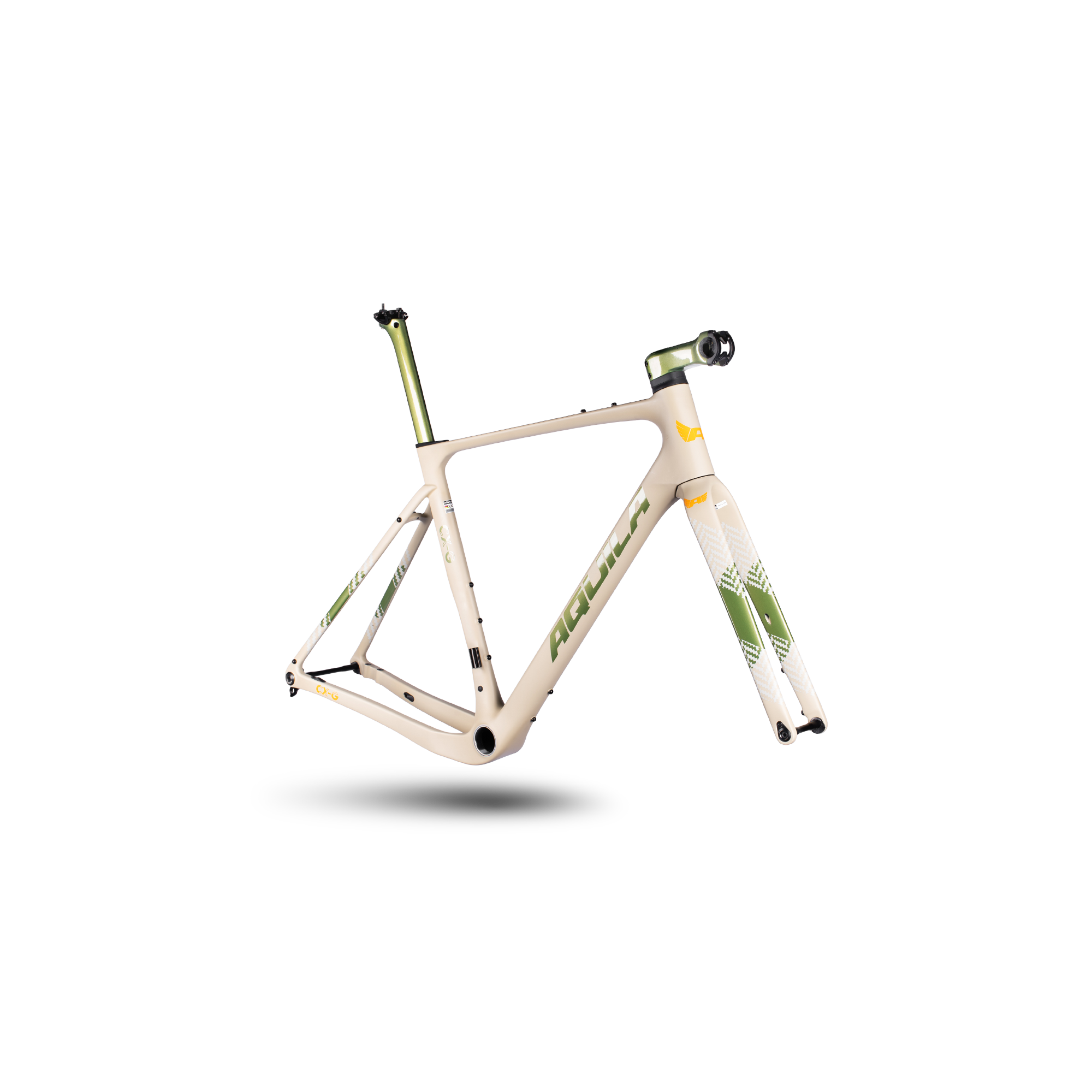

CX-G Module

$2,699.00

Size 49cm

Color Laguna Slate 

CX-G Module $2,699.00

CX-G AMPLIFIED

5 years ago we launched our first ever Gravel-specific model, the Aquila CX-G. Over that time it has become one of our best sellers. It was a platform we offered as a “Swiss Army knife” for those seeking a bike with little boundaries. Equipped with features that allowed riders to be efficient on and off-road. As the gravel scene has snowballed into one of the fastest-growing genres of the cycling world. We felt it was time to up the ante, and launch a new iteration of the CX-G, which is lighter, faster, and more capable than its predecessor…

During this continuous evolution of gravel bikes, there is a strong desire to have a platform that packs more of a performance punch. We have fined tuned the tube shapes of the CX-G frame to provide some aerodynamic properties, implemented full cable integration, reworked the geometry to provide greater agility, and increased the max tire size to 50mm, which allows to further tune the ride of the bike. To cap things off, the new CX-G is now UCI-compliant for those hitting the race start line.

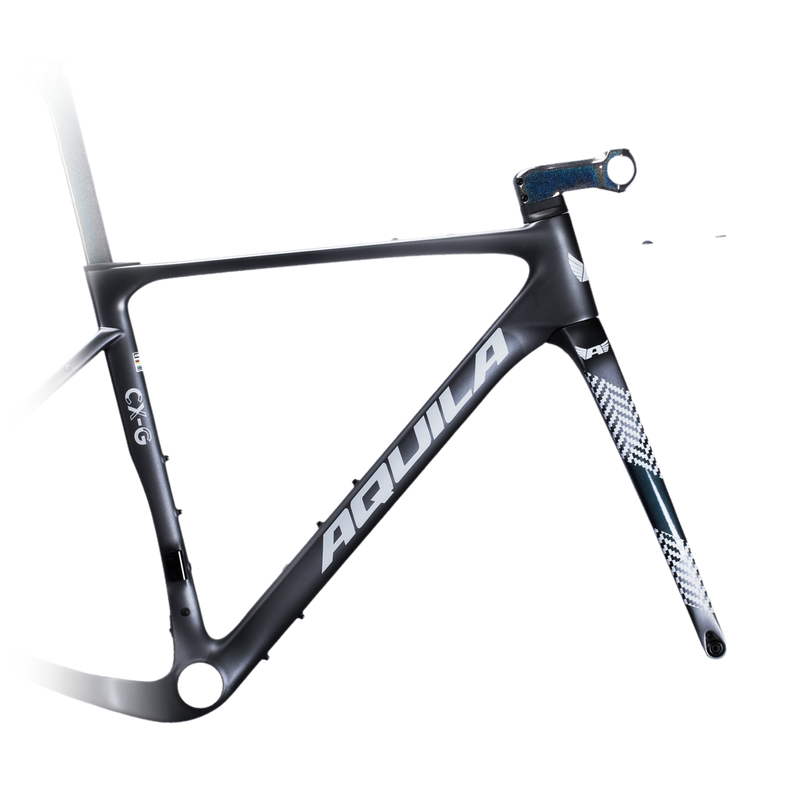

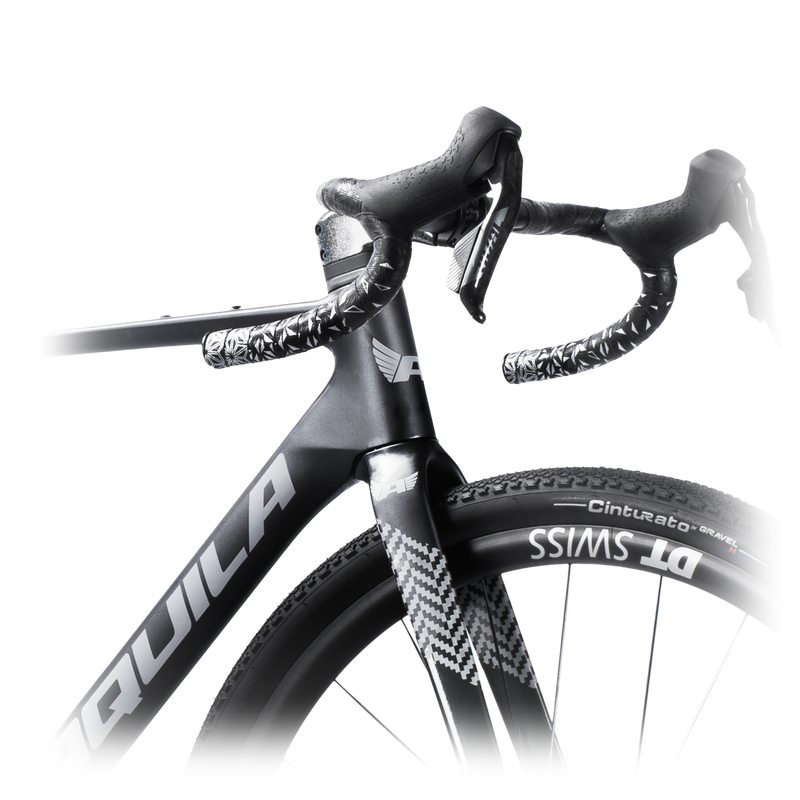

AERODYNAMIC

The new CX-G borrows some of the aerodynamic features we developed for the EVO road model, while still maintaining critical properties for vertical compliance, traction and handling when the riding surface gets rough.

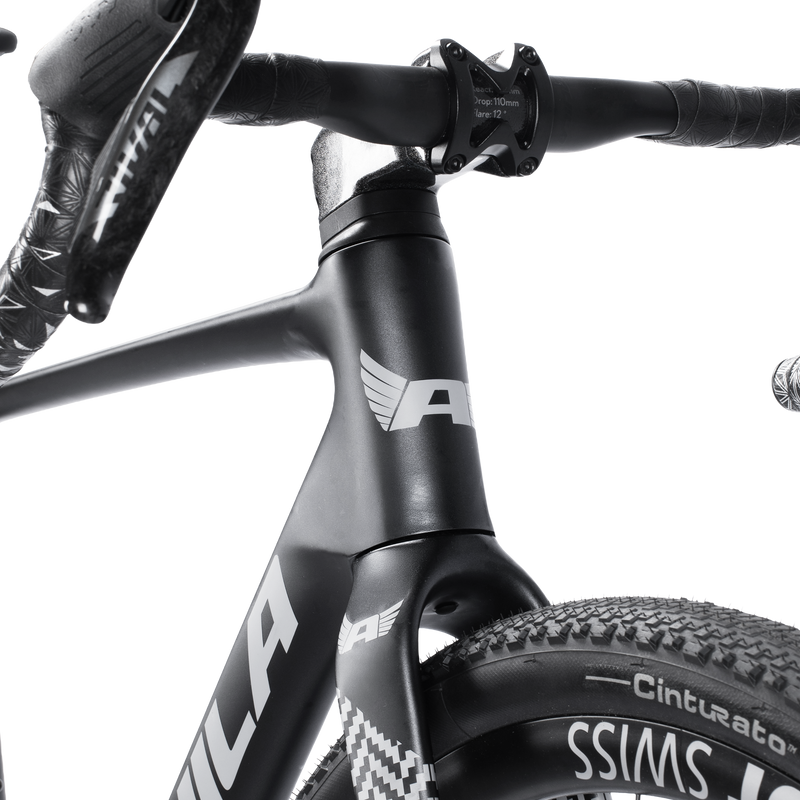

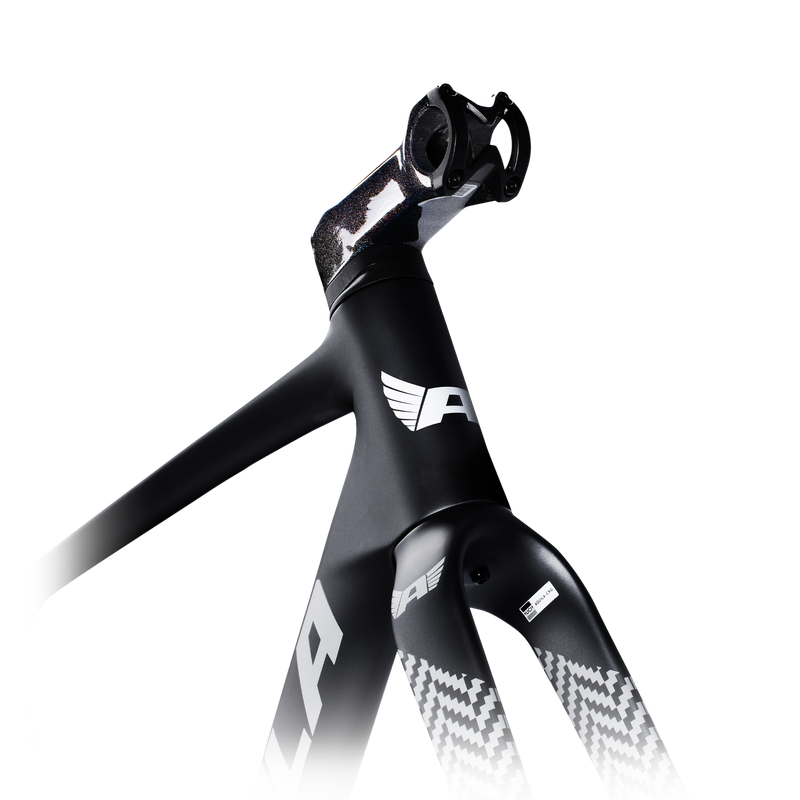

FULL CABLE INTEGRATION

Add a description.

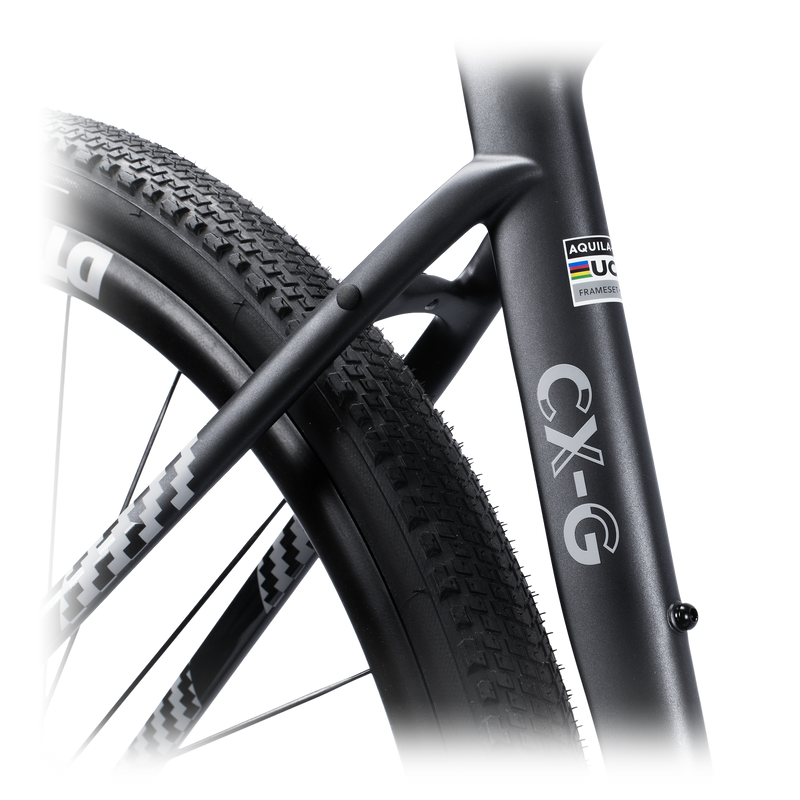

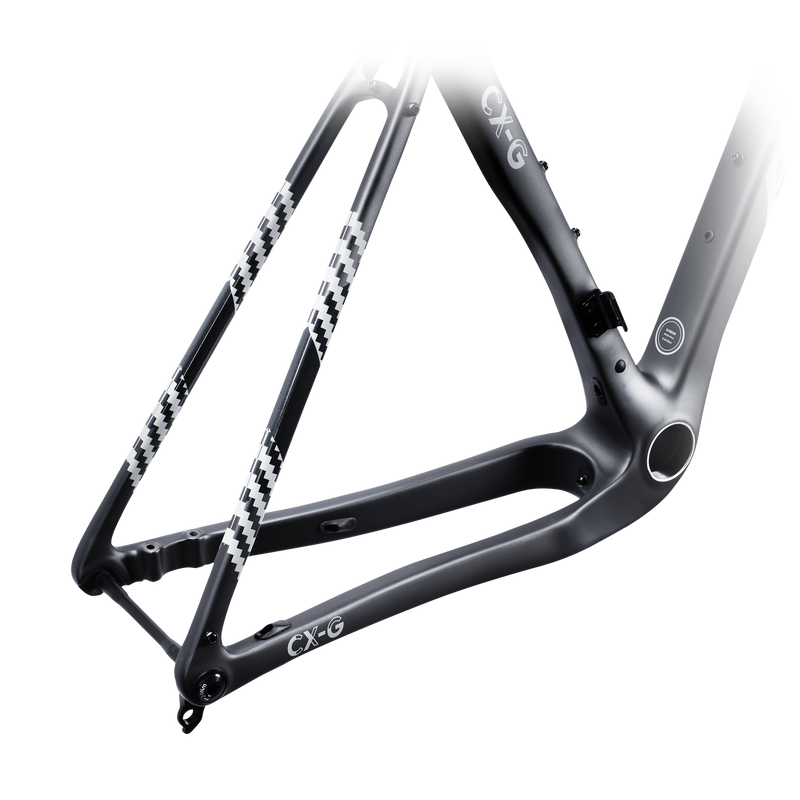

MAX TIRE SIZE

Add a description.

Frame

Frame Aquila CX-G
Headset Aquila Integrated
Seat post CX-G Carbon

Drivetrain

FD N/A
RD N/A
Shifters N/A
Cassette N/A
Chain N/A
Crankset N/A
Bottom bracket BB-RS500-PB

Wheels & Brakes

Wheelset N/A
Tires N/A
Rotors N/A

Cockpit

Bars N/A
Stem CX-G Carbon Integrated
Tape N/A

Seat tube (ST) 420

Top tube (TT) 498

Head tube (HT) 95

Head angle 70°

Seat angle 75°

Chainstay 406

Wheelbase 967

Stack 500

Reach 364

1 Measurements

2 Body Type

3 Riding Style

4 Your Fit

Your Measurements

Accurate measurements are the foundation of a perfect fit.

Height (cm) Please enter a height between 140 and 220 cm

Inseam (cm) Please enter an inseam between 65 and 100 cm

Your Body Type

Proportions matter as much as height. This helps us dial in your stack and reach.

Gender

Male Female Other

Please select an option

Torso & Arm Proportions Please select your proportions

Your Riding Style

How you ride shapes how your bike should fit. Pick the style that best describes you.

Race

Aggressive position, max aero, low stack

Endurance

Balanced comfort & speed for long rides

Gran Fondo

Upright comfort, sportive & charity rides

Touring

Maximum comfort, stability & load capacity

Please select a riding style

Your Recommended Frame

High confidence

Book Your Fitting

Aquila Fit Kit Reference

Height	Inseam	Frame
<156cm	70–72cm	45–48cm
~164cm	73–75cm	48–50cm
164–172cm	76–78cm	50–52cm
172–175cm	79–80cm	52–54cm
172–175cm	81cm	54–56cm
178–182cm	82–83cm	54–56cm
178–182cm	84cm	56–58cm
180–188cm	85–86cm	56–58cm
180–188cm	87cm	58–60cm
188–195cm	88–89cm	58–60cm
188–195cm	90cm	60cm+
>195cm	91–93cm+	60cm+
