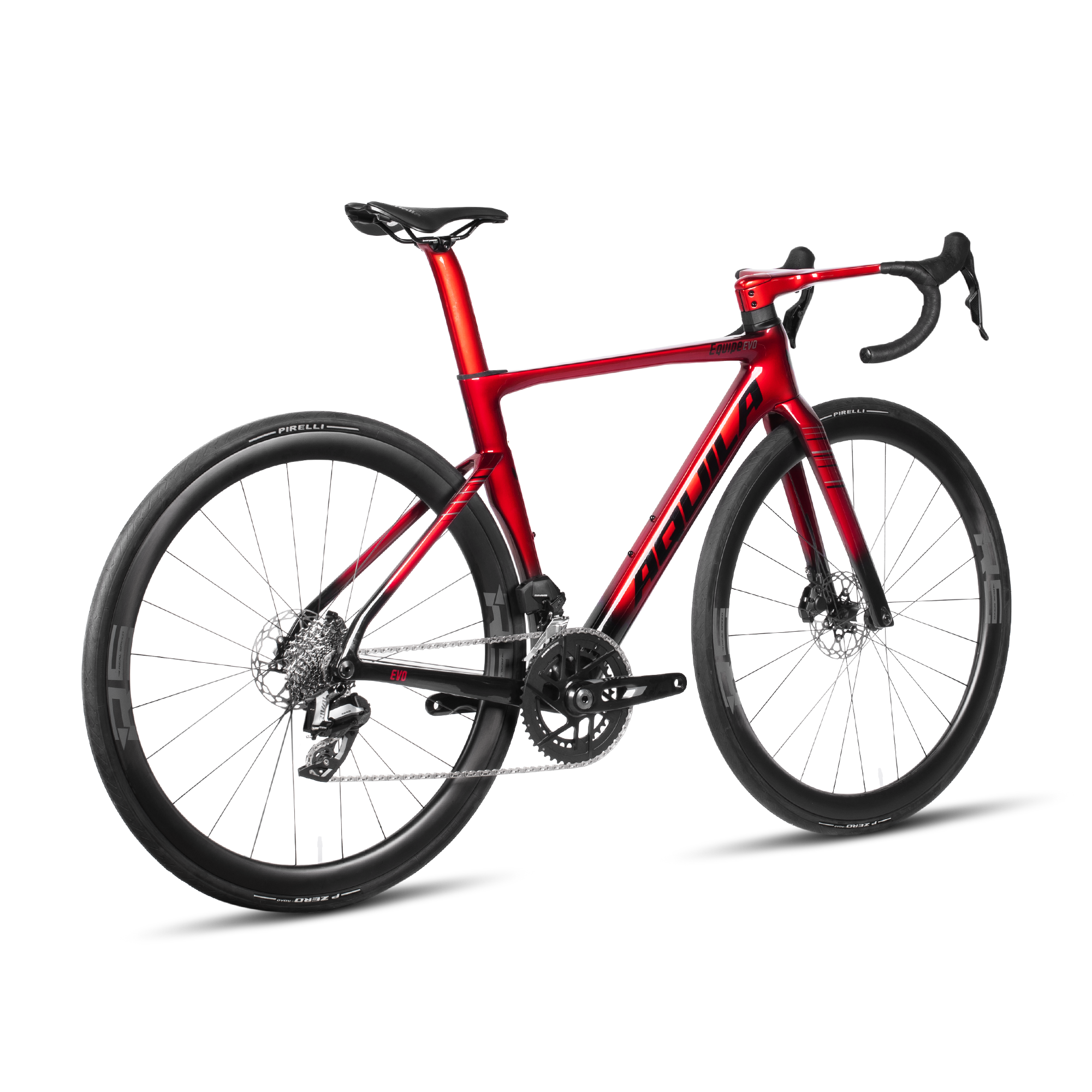

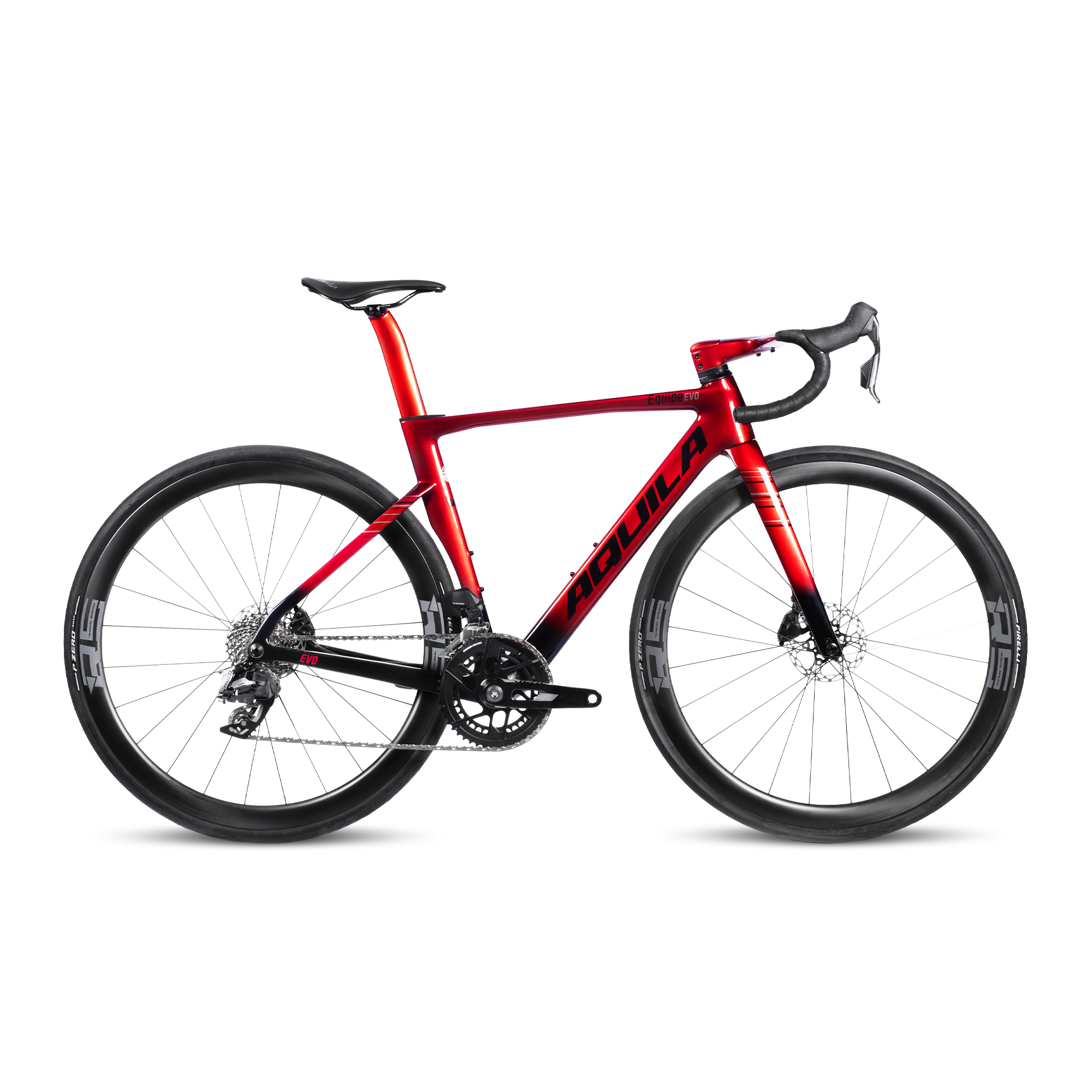

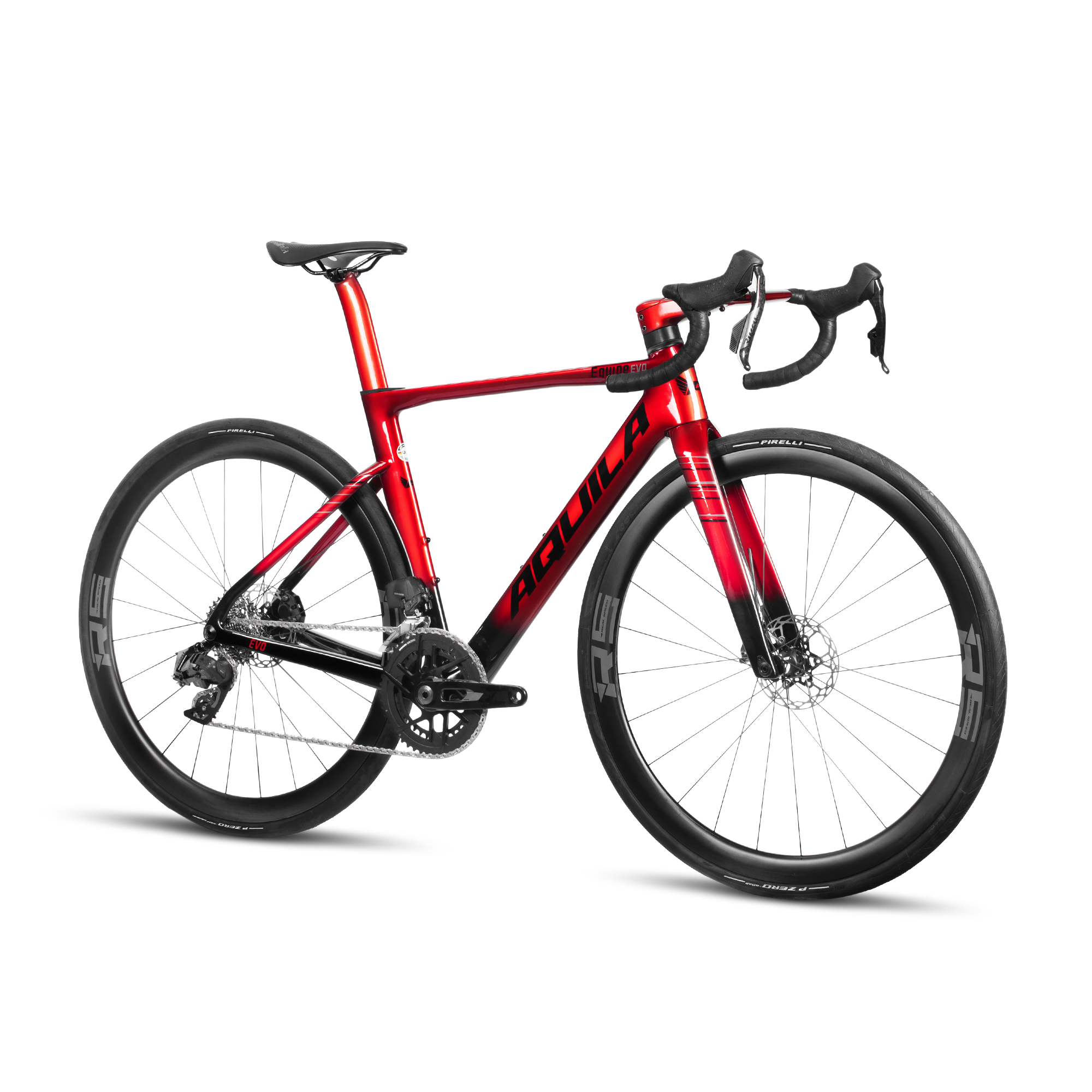

EVO - TWO

SRAM FORCE AXS E1

$7,299.00 $7,599.00 Save $300.00 (3%)

Size 46cm

Color Chameleon

EVO - TWO $7,299.00

THE EVOLUTION CONTINUES

The Aquila Equipe EVO represents the evolution of a platform that is entering its third iteration. Passed down are the genes that we believe are the key ingredients to making a road bike that is unmatched. When we set out to develop this project, we had several goals that we strived to reach.

The previous generation Equipe was a prime example of a bike that is tremendously balanced. It is very light, predictably responsive, had deceiving torsional rigidity and exuded comfort. This combination made for a very purposeful race machine.

Over the past 5 years, bikes have changed at a rapid rate. The advancements that we see today amongst many of the bikes warranted a revision to the Equipe platform. However, we weren’t looking to reinvent the wheel. We were looking to make it better.

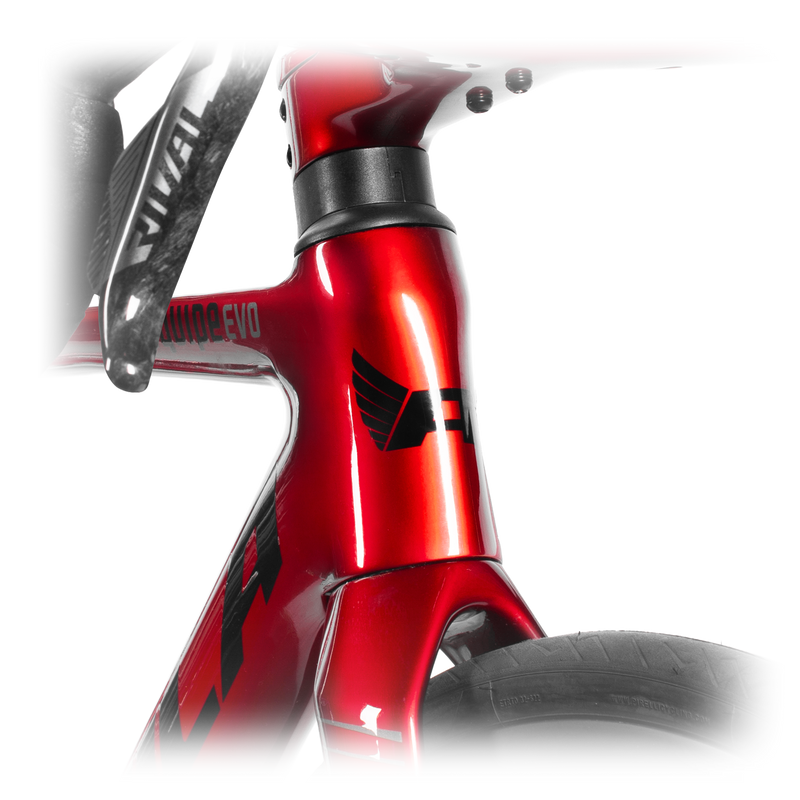

DESIGN THROUGH CFD

Pulling out all the stops in the name of aerodynamics is something that we caution. Many aero focused bikes feature seat posts that are designed purely around being as aero as possible. The seat post is a critical contact point for the rider and this section of the frame is under the most vertical load. Shaping the seat post to be as aero as possible adds weight through more material being used to retain structural integrity, but more importantly stiffens up this area which translates to a less than forgiving ride. The Equipe EVO features a D shaped seat post, which is a blend between an aero shape, and cylindrical shape, which helps to balance out the efficiency of the seat post making it as light, aero and comfortable as possible.

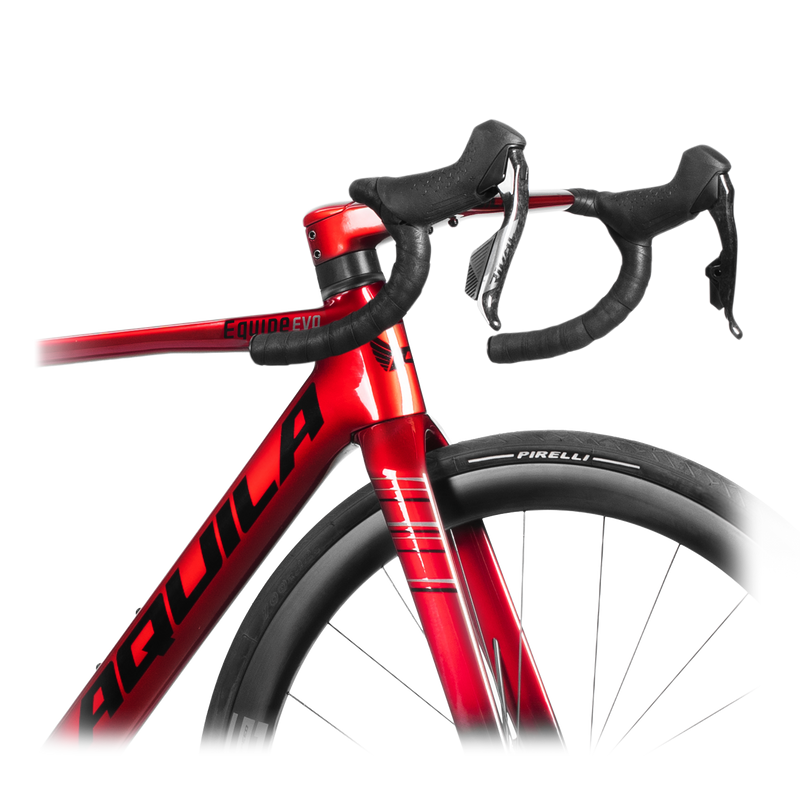

FULL CABLE INTEGRATION

The function and form of concealing the cables is undeniable. Not only because of its super clean appearance, but furthermore adds to the aerodynamic prowess of the bike. The Equipe EVO features the new ACR integration system from FSA, which allows all the cable to route through the bar, stem, headset and into the head tube, where the cables are distributed throughout the frame.

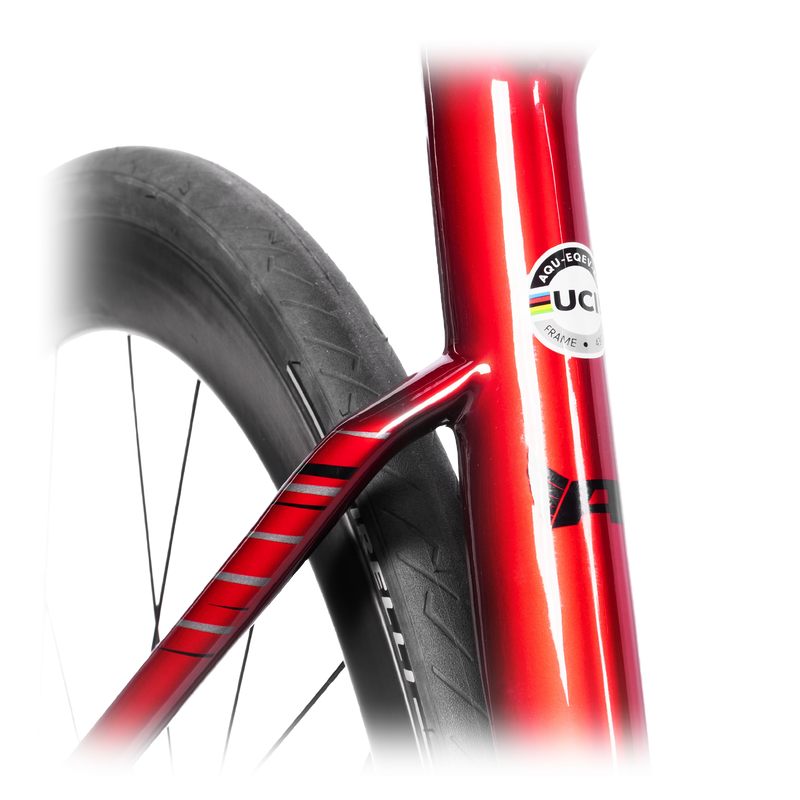

BIGGER IS BETTER

It’s no secret that larger tires on road bikes can untap some hidden efficiency. The days of narrow 23mm, cranked up to 120psi + are in the rear view. Wider tires present the ability to run lower pressures, which help to shorten the linear contact patch on the pavement, therefore allowing the wheels to turnover faster. The lower pressures also allow for the tire to take on a more efficient shape which creates greater adhesion while rolling, improved cornering, and increases comfort, without adding more rolling resistance. The Equipe EVO allows for a best in class max tire width of 32mm.

Frame

Frame EVO
Headset EVO
Seat post EVO

Drivetrain

FD Force AXS E1
RD Force AXS E1
Shifters Force AXS E1
Cassette CS XG 1270
Chain SRAM CN Force E1 12 Speed
Crankset Force AXS E1 DUB
Bottom bracket BB-RS500-PB

Wheels & Brakes

Wheelset Realspeed RS40 or RS55
Tires Pirelli P Zero Velo
Rotors Brakco FRC-20SA

Cockpit

Bars EVO Integrated
Stem EVO Integrated
Tape Supacaz Suave

Seat tube (ST) 420

Top tube (TT) 498

Head tube (HT) 95

Head angle 70°

Seat angle 75°

Chainstay 406

Wheelbase 967

Stack 500

Reach 364

1 Measurements

2 Body Type

3 Riding Style

4 Your Fit

Your Measurements

Accurate measurements are the foundation of a perfect fit.

Height (cm) Please enter a height between 140 and 220 cm

Inseam (cm) Please enter an inseam between 65 and 100 cm

Your Body Type

Proportions matter as much as height. This helps us dial in your stack and reach.

Gender

Male Female Other

Please select an option

Torso & Arm Proportions Please select your proportions

Your Riding Style

How you ride shapes how your bike should fit. Pick the style that best describes you.

Race

Aggressive position, max aero, low stack

Endurance

Balanced comfort & speed for long rides

Gran Fondo

Upright comfort, sportive & charity rides

Touring

Maximum comfort, stability & load capacity

Please select a riding style

Your Recommended Frame

High confidence

Book Your Fitting

Aquila Fit Kit Reference

Height	Inseam	Frame
<156cm	70–72cm	45–48cm
~164cm	73–75cm	48–50cm
164–172cm	76–78cm	50–52cm
172–175cm	79–80cm	52–54cm
172–175cm	81cm	54–56cm
178–182cm	82–83cm	54–56cm
178–182cm	84cm	56–58cm
180–188cm	85–86cm	56–58cm
180–188cm	87cm	58–60cm
188–195cm	88–89cm	58–60cm
188–195cm	90cm	60cm+
>195cm	91–93cm+	60cm+
