EVO - 105 Di2
EVO - 105 Di2
EVO - 105 Di2
01 / 03
Designed in Canada

EVO - 105 Di2

4.8
Shimano 105 Di2
$4,999.00
EVO - 105 Di2$4,999.00
Banner image
Banner image

THE EVOLUTION CONTINUES

The Aquila Equipe EVO represents the evolution of a platform that is entering its third iteration. Passed down are the genes that we believe are the key ingredients to making a road bike that is unmatched. When we set out to develop this project, we had several goals that we strived to reach.

The previous generation Equipe was a prime example of a bike that is tremendously balanced. It is very light, predictably responsive, had deceiving torsional rigidity and exuded comfort. This combination made for a very purposeful race machine.

Over the past 5 years, bikes have changed at a rapid rate. The advancements that we see today amongst many of the bikes warranted a revision to the Equipe platform. However, we weren’t looking to reinvent the wheel. We were looking to make it better.
FEATURES

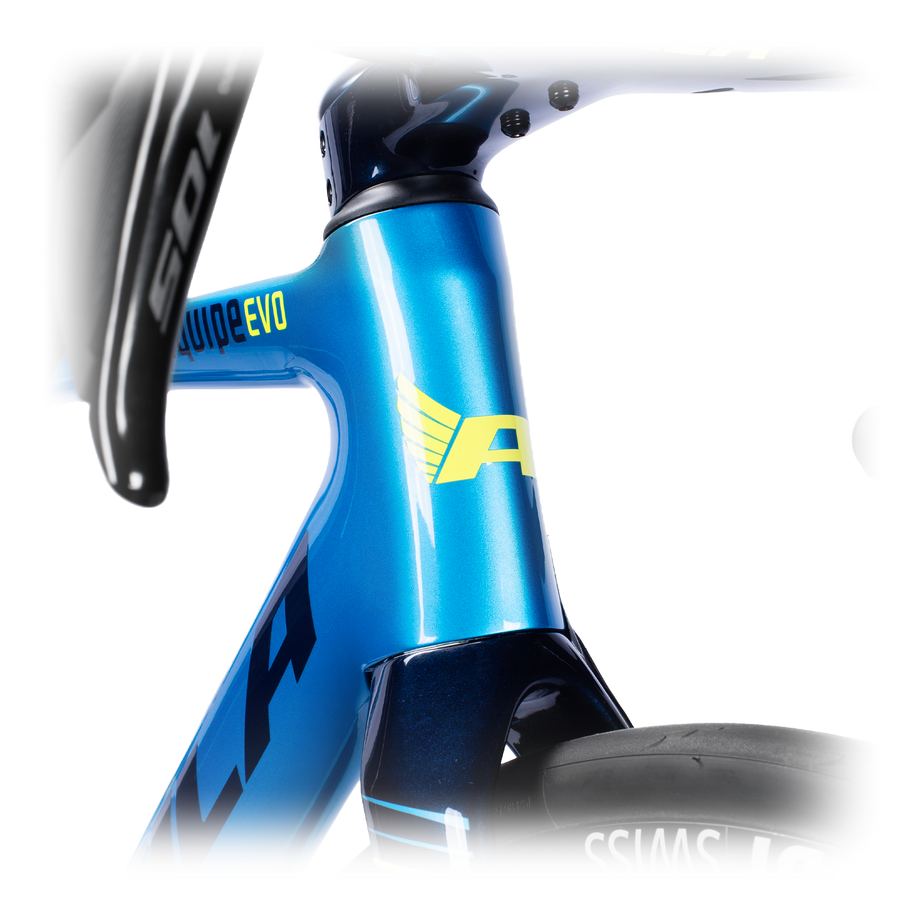

DESIGN THROUGH CFD

DESIGN THROUGH CFD

For everything that the previous Equipe brought to the road, it did lack in the aero department. With the understanding that improvements in aerodynamic efficiency can come at a price of increased weight, and increased vertical stiffness, we had to think out of the box in how we could improve in that area, without disrupting the cherished mannerisms of the previous Equipe. Through the use of CFD software, we needed to grasp an understanding as to where the breaking point for aerodynamics was throughout the different shapes of the frame. When its peak was met, we started to change the shape of the different tubes on the frame, rounding them off to reduce weight and encourage more vertical compliance.

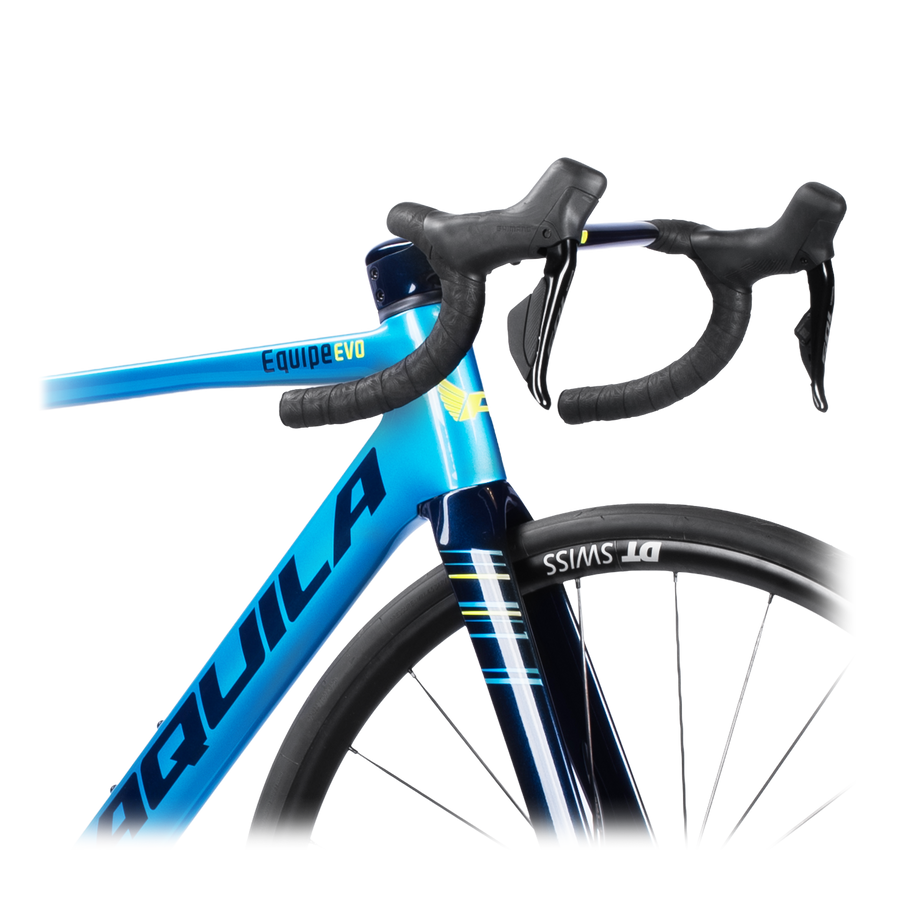

FULL CABLE INTEGRATION

FULL CABLE INTEGRATION

The function and form of concealing the cables is undeniable. Not only because of its super clean appearance, but furthermore adds to the aerodynamic prowess of the bike. The Equipe EVO features the new ACR integration system from FSA, which allows all the cable to route through the bar, stem, headset and into the head tube, where the cables are distributed throughout the frame.

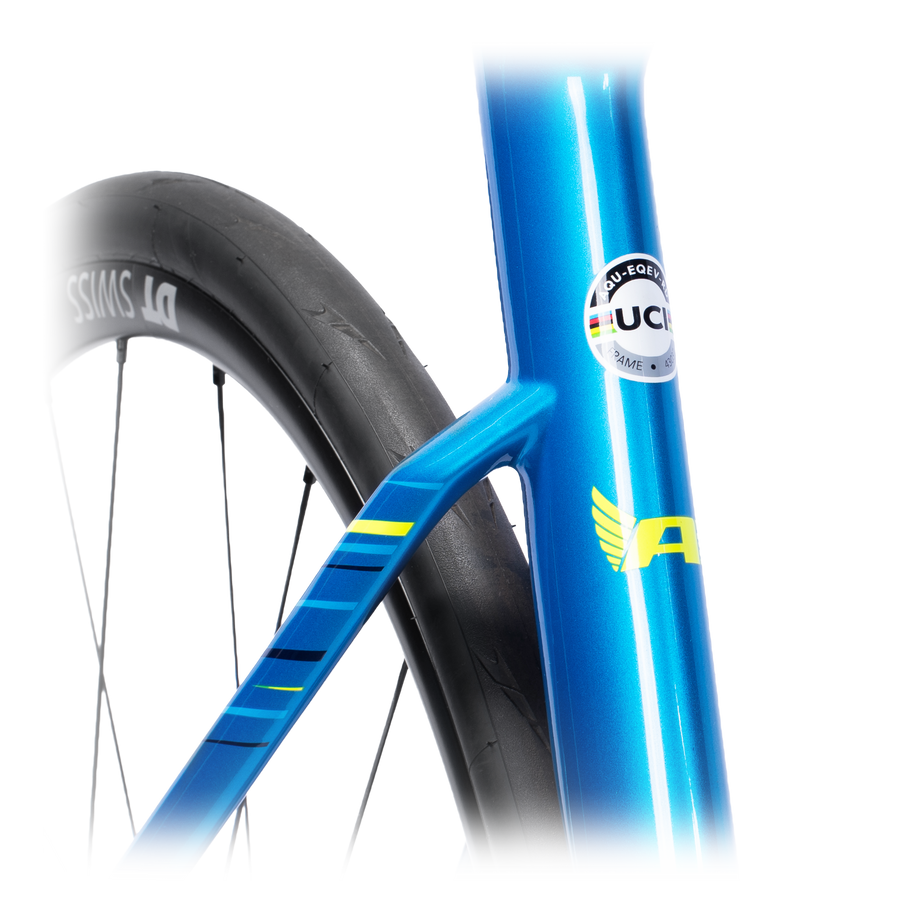

BIGGER IS BETTER

BIGGER IS BETTER

It’s no secret that larger tires on road bikes can untap some hidden efficiency. The days of narrow 23mm, cranked up to 120psi + are in the rear view. Wider tires present the ability to run lower pressures, which help to shorten the linear contact patch on the pavement, therefore allowing the wheels to turnover faster. The lower pressures also allow for the tire to take on a more efficient shape which creates greater adhesion while rolling, improved cornering, and increases comfort, without adding more rolling resistance. The Equipe EVO allows for a best in class max tire width of 32mm.
SPECIFICATIONS

Frame

  • Frame  Aquila Equipe EVO
  • Headset Equipe EVO
  • Seat post EVO

Drivetrain

  • FD FD-R7150, 105 Di2
  • RD RD-R7150, 105 Di2
  • Shifters ST-R7170, 105 Di2 Hydraulic W/BR-R7170 Calipers
  • Cassette  CS-R7100, 105 12 Speed
  • Chain CN-M7100 12 Speed
  • Crankset 105 FC-R7100
  • Bottom bracket BB-RS500-PB

Wheels & Brakes

  • Wheelset Realspeed RS40 or RS55
  • Tires Pirelli P Zero Road
  • Rotors Brakco FRC-01SS

Cockpit

  • Bars EVO Integrated
  • Stem EVO Integrated
  • Tape  Supacaz Suave
GEOMETRY
ST 420
TT 498
HT 95
HA 70°
CA 75°
BB 72
RC 406
FC 572
OFFSET 45
WB 967
STACK 500
REACH 364
BIKE SIZE CALCULATOR
Precision Fit

Find Your Perfect Aquila Frame Size

Expert fitting guidance based on your measurements

1 Measurements
2 Body Type
3 Riding Style
4 Your Fit

Your Measurements

Accurate measurements are the foundation of a perfect fit.

Please enter a height between 140 and 220 cm
Please enter an inseam between 65 and 100 cm

Your Body Type

Proportions matter as much as height. This helps us dial in your stack and reach.

Please select an option
Please select your proportions

Your Riding Style

How you ride shapes how your bike should fit. Pick the style that best describes you.

Please select a riding style
Your Recommended Frame
High confidence
Book Your Fitting

Aquila Fit Kit Reference

Height Inseam Frame
<156cm70–72cm45–48cm
~164cm73–75cm48–50cm
164–172cm76–78cm50–52cm
172–175cm79–80cm52–54cm
172–175cm81cm54–56cm
178–182cm82–83cm54–56cm
178–182cm84cm56–58cm
180–188cm85–86cm56–58cm
180–188cm87cm58–60cm
188–195cm88–89cm58–60cm
188–195cm90cm60cm+
>195cm91–93cm+60cm+
