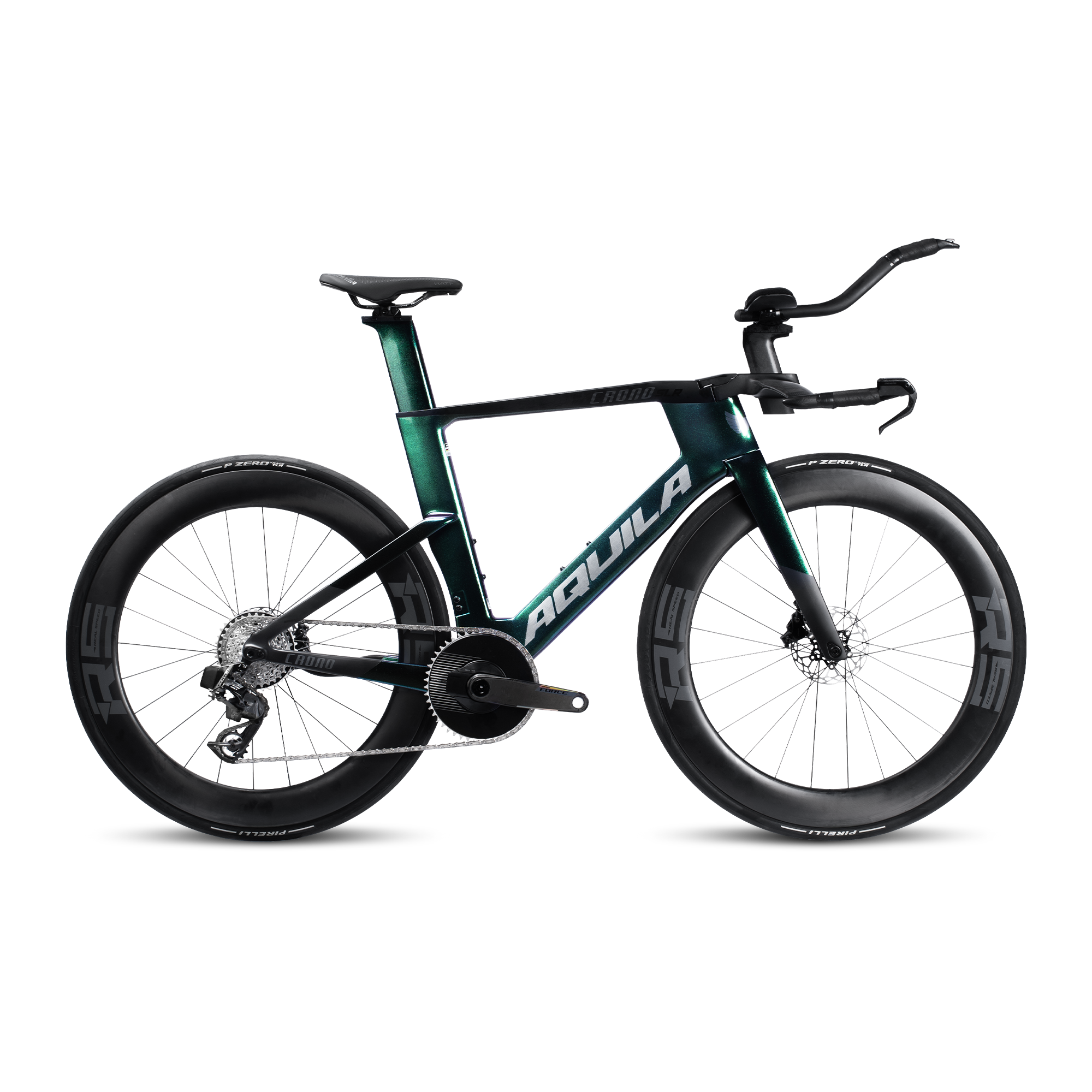

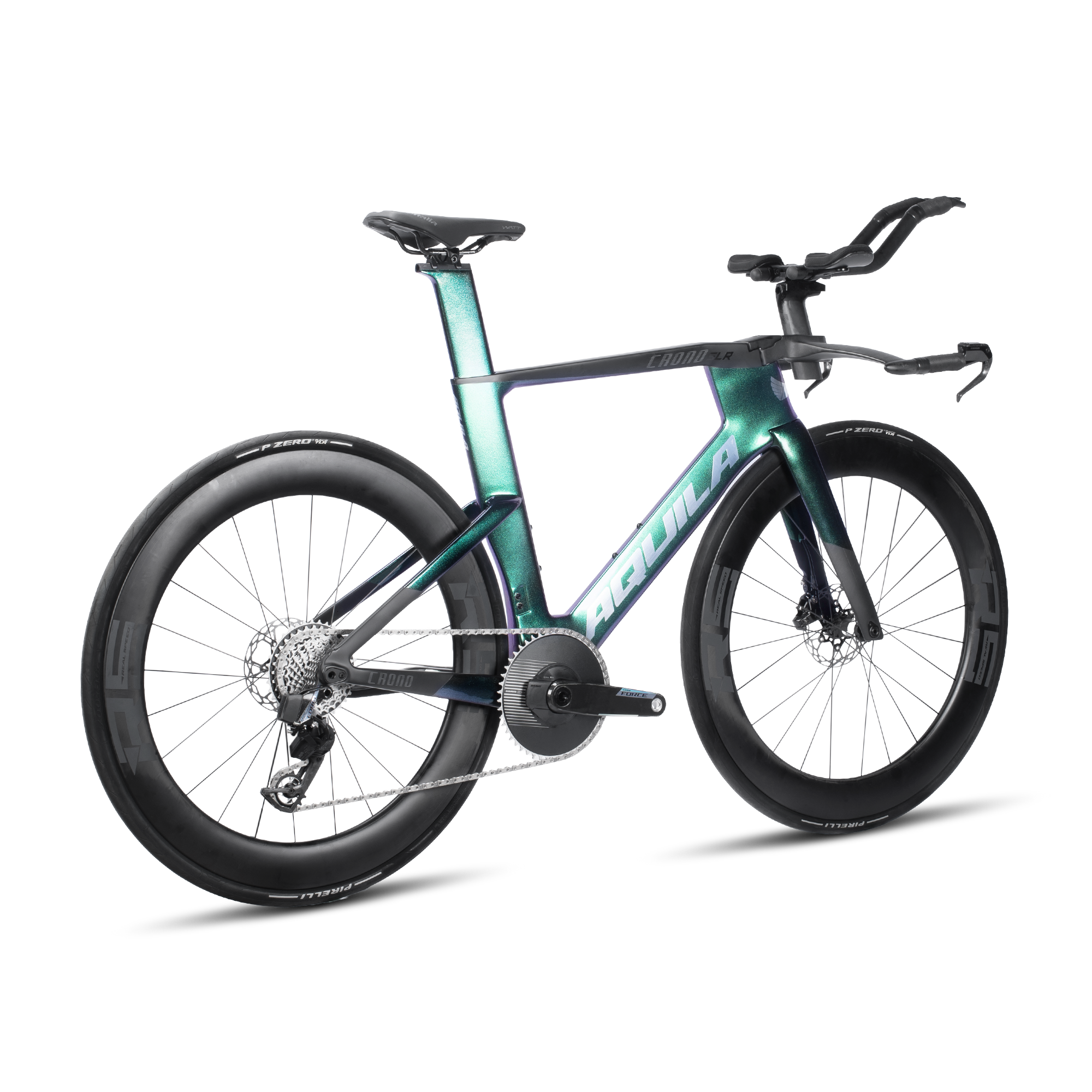

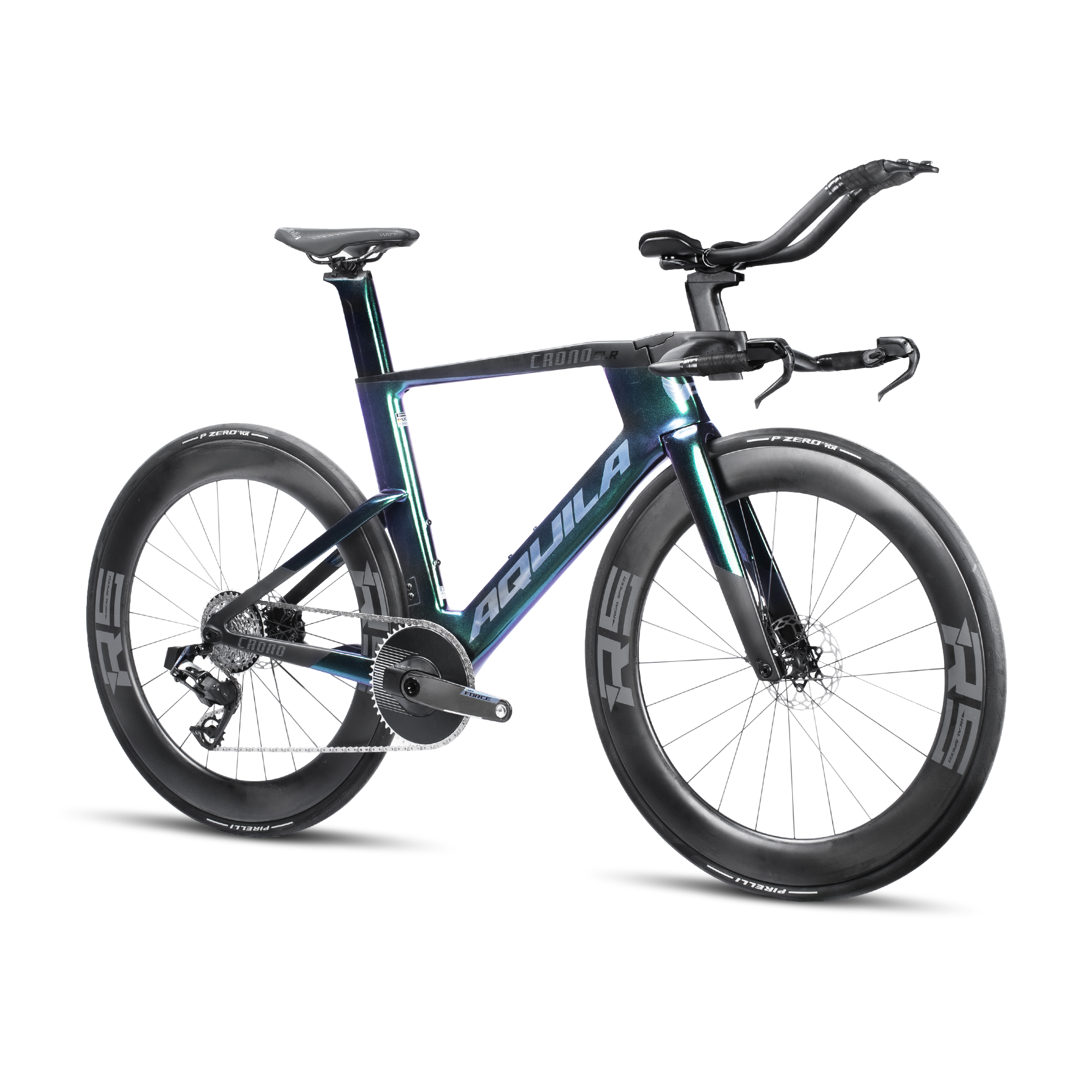

Crono SLR TWO
Shimano Ultegra R8150
$8,899.00
CRONO SLR
FEATURES

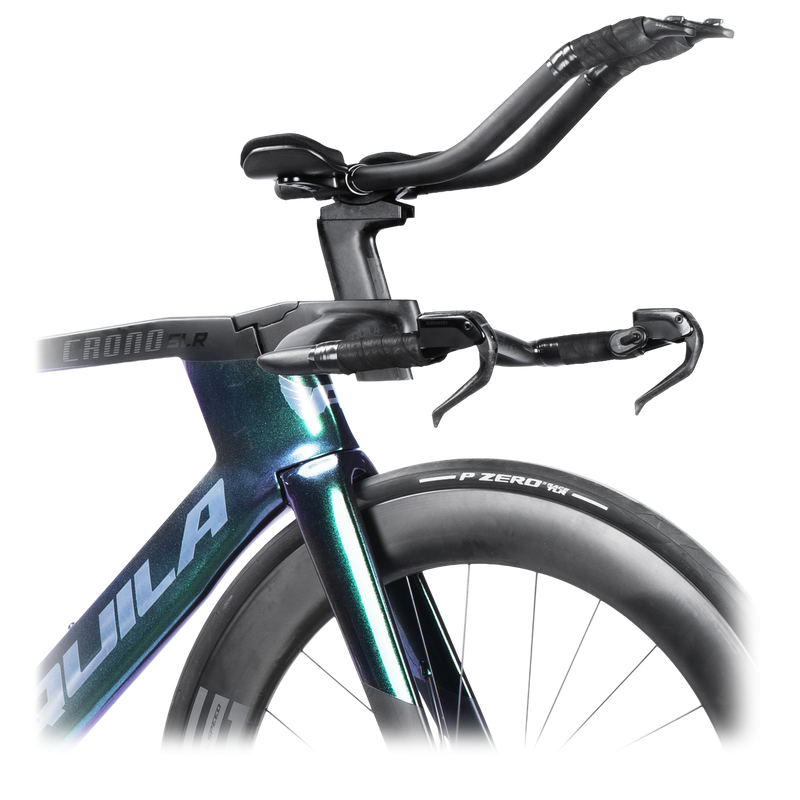

TIDY INTEGRATION
Finding the balance between functionality and Aero performance. The new Crono SLR features Tidy cable integration. Amplified aerodynamics, stealth aesthetics, ease of adjustability.

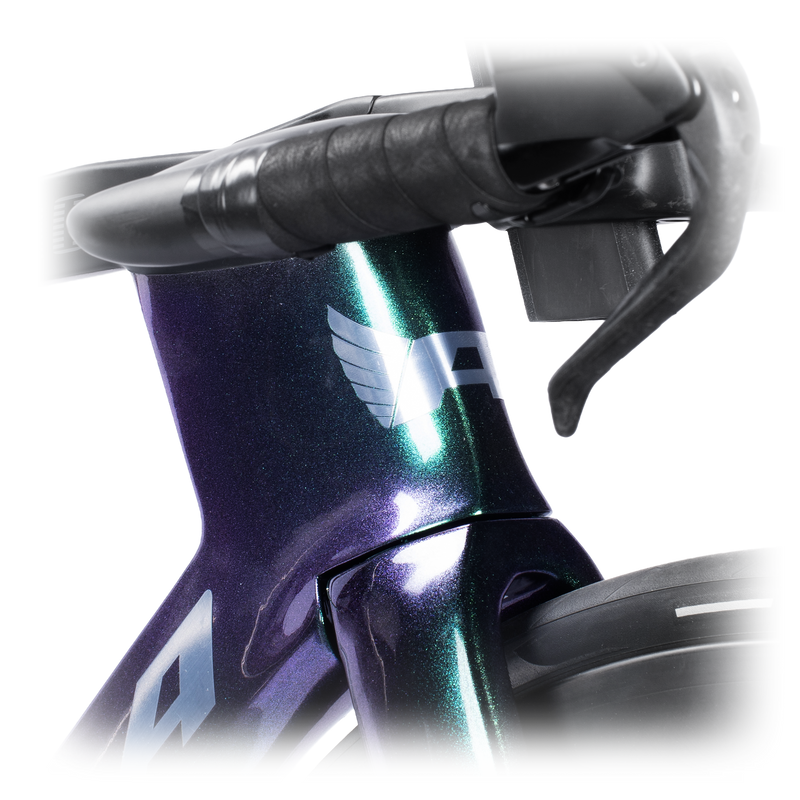

AEROEND
We spent lots of time and effort constructing the front end for the Crono SLR. Setting performance and adjustability as the main objectives. We are confident to say we found the perfect blend. Through much R & D, we identified that singular posted extensions is not only more aerodynamic, but it also allows for easier stack adjustability. Combined with 2 points of adjustment for extension reach, and a pivoting system for forearm tilt, our new AeroEnd system is highly accommodating to dial in your fit.

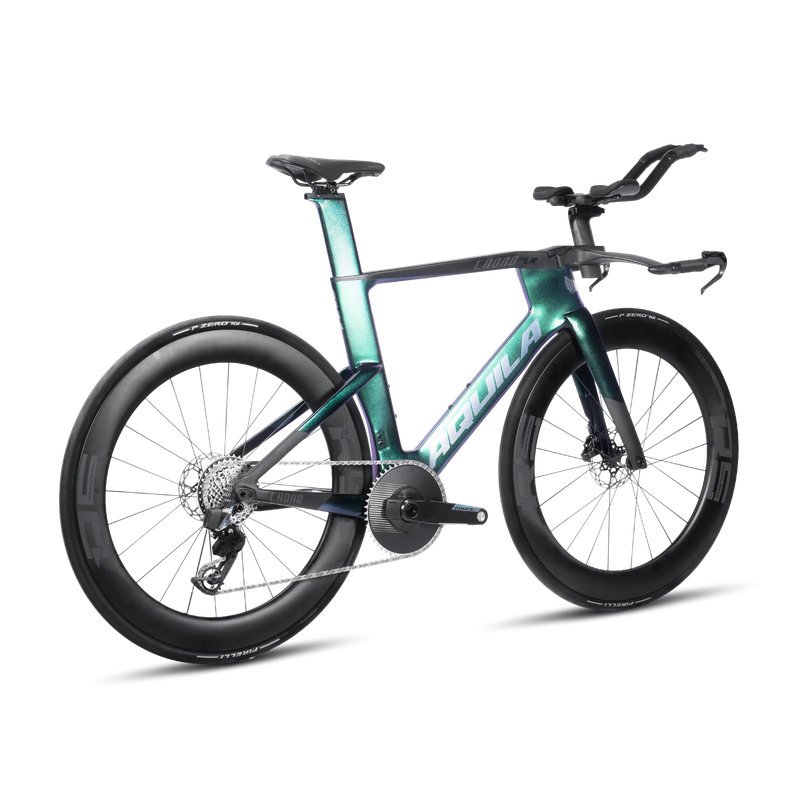

UCI COMPLIANT
We may have overlooked the Time-trial market on the previous Crono model. Opting not to make that platform UCI compliant. In the original planning for the new model, we felt that it was a must have feature for the Crono SLR. This opening the doors for an untapped market.
SPECIFICATIONS
Frame
- Frame Aquila Crono SLR
- Headset Crono SLR
- Seat post Crono SLR
Drivetrain
- FD FD-R8150, Ultegra Di2
- RD RD-R8150, Ultegra Di2
- Shifters SHIFT SWITCH, SW-R9160, DURA-ACE Di2 / SHIFT/BRAKE LEVER,ST-R9180,DURA-ACE Di2
- Cassette CS-R8100
- Chain CN-M8100
- Crankset ULTEGRA FC-R8100
- Bottom bracket BB-RS500-PB
Wheels & Brakes
- Wheelset DT Swiss ARC 1400 50mm
- Tires Vittoria Corsa N.EXT TLR
- Rotors Shimano RT-MT800
Cockpit
- Bars Crono SLR Integrated Carbon
- Stem Crono SLR Integrated Carbon
- Tape Supacaz

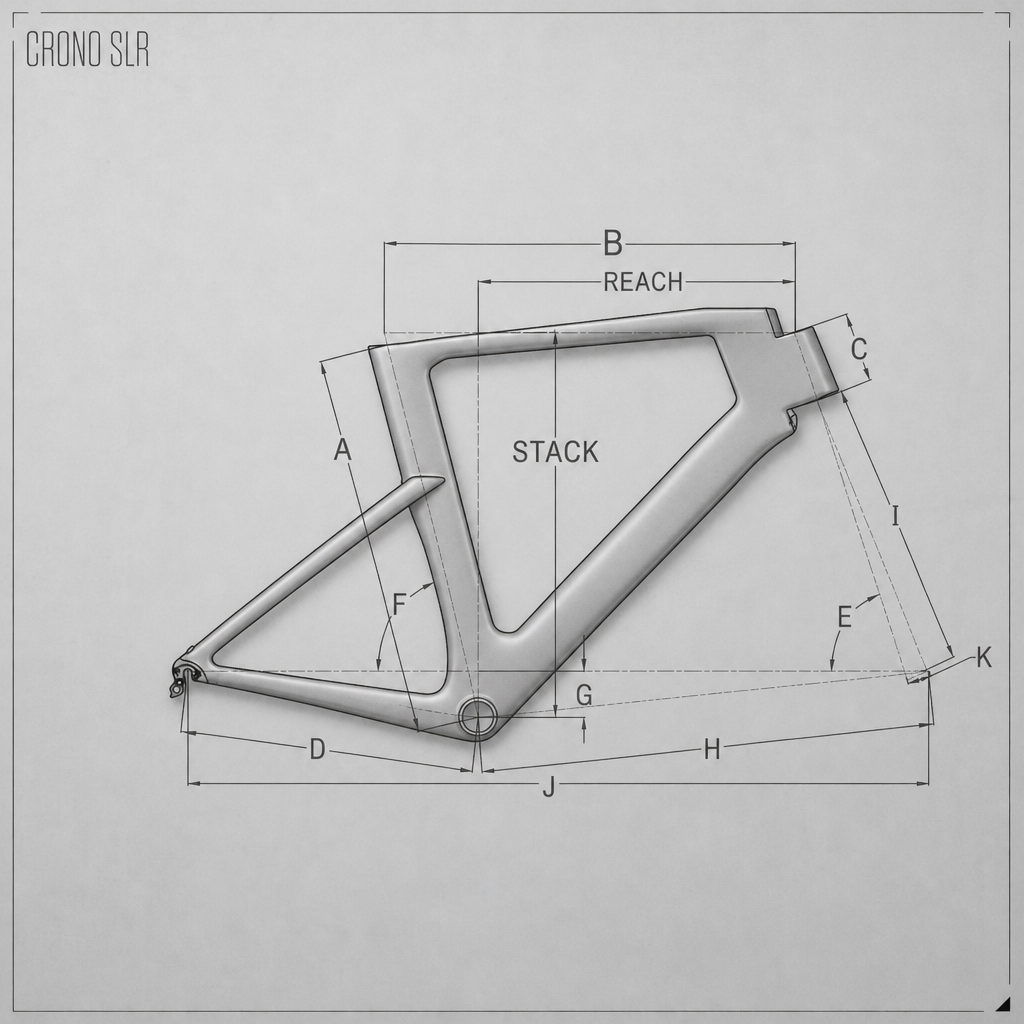

GEOMETRY
Seat tube (ST)
420
Top tube (TT)
498
Head tube (HT)
95
Head angle
70°
Seat angle
75°
Chainstay
406
Wheelbase
967
Stack
500
Reach
364
BIKE SIZE CALCULATOR
Precision Fit
Find Your Perfect Aquila Frame Size
Expert fitting guidance based on your measurements
1
Measurements
2
Body Type
3
Riding Style
4
Your Fit
Aquila Fit Kit Reference
| Height | Inseam | Frame |
|---|---|---|
| <156cm | 70–72cm | 45–48cm |
| ~164cm | 73–75cm | 48–50cm |
| 164–172cm | 76–78cm | 50–52cm |
| 172–175cm | 79–80cm | 52–54cm |
| 172–175cm | 81cm | 54–56cm |
| 178–182cm | 82–83cm | 54–56cm |
| 178–182cm | 84cm | 56–58cm |
| 180–188cm | 85–86cm | 56–58cm |
| 180–188cm | 87cm | 58–60cm |
| 188–195cm | 88–89cm | 58–60cm |
| 188–195cm | 90cm | 60cm+ |
| >195cm | 91–93cm+ | 60cm+ |
