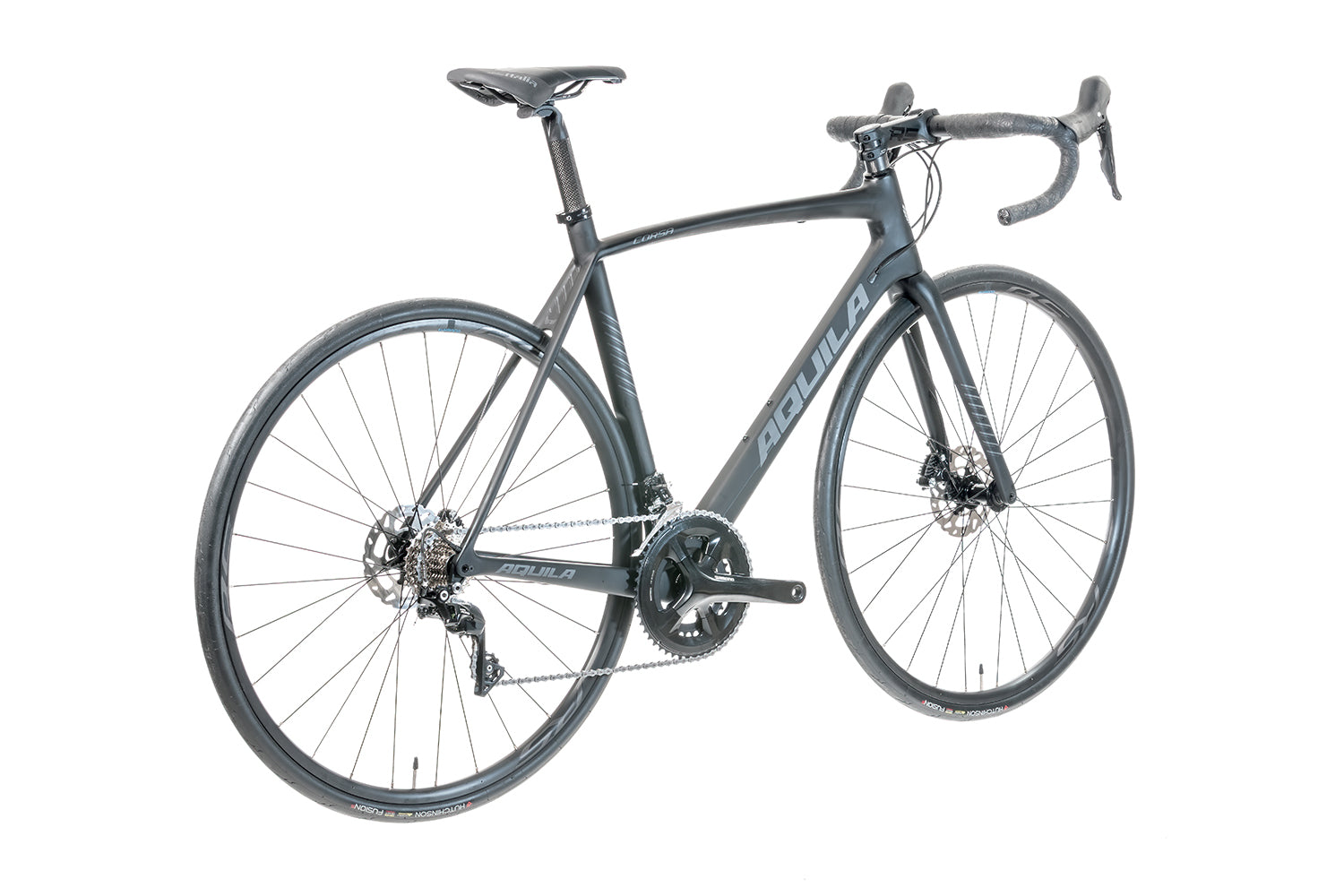

Aquila Corsa Carbon Shimano 105 R7020 Road BIke

Frame: Aquila Corsa Carbon
Headset: Aquila
Front Derailleur: FD-R7000
Rear Derailleur: RD-R7000
Shifters: ST-R7020, 105 Hydraulic W/SM-7070 Calipers
Rotors: SM-RT-70, 160mm / 140mm
Cassette: CS-R7000 Cassette
Bottom Bracket: BB-RS500 Pressfit BB
Crankset: FC R500 - Crankset 50-34T
Chain: CN HG 601 - Chain with Quick Link
Wheelset: Shimano WH-R171
Tires: Hutchinson Fusion 5 700x28
Bar: Realspeed Ergoendurance Alloy
Stem: Realspeed
Seat Post: Realspeed 31.6
Saddle: Selle Italia Boost X3
Tape: Realspeed 3M Bar Tape
*specification subject to change without notice


FEATURES

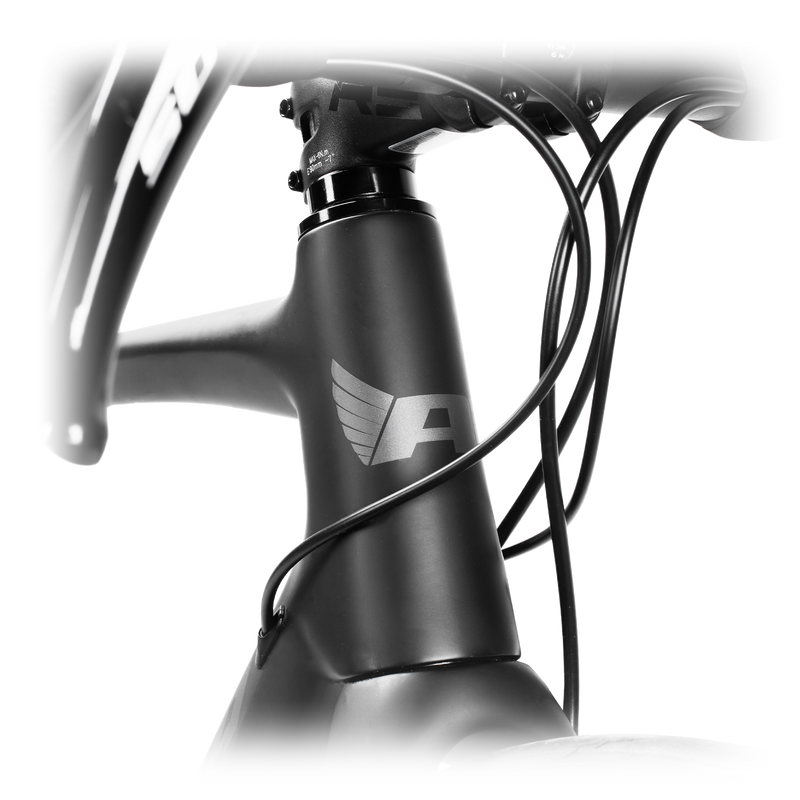

THE OPEN ROADS ARE WAITING

For the first time in the 20 year existence of our ever popular selling Aquila Corsa, is now available in full carbon construction. The result is an Aquila Corsa that is far superior to it’s aluminum counterpart, while still retaining it’s pedigree of high quality build and value.

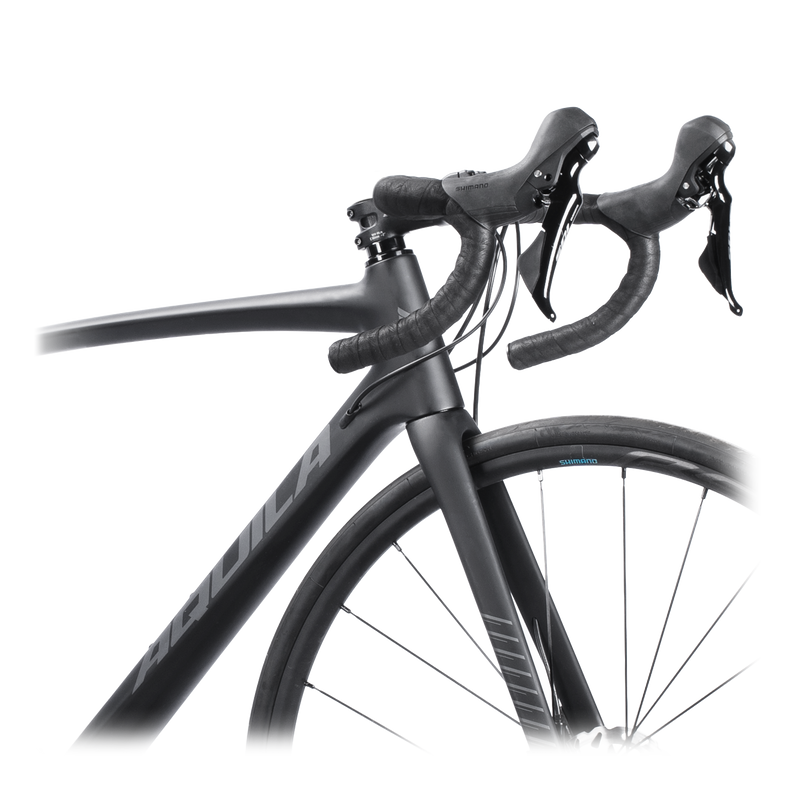

RHOMBIC TECHNOLOGY

The Aquila Corsa features a flat top tube and a down tube shaped in a rhombic shape, so as to achieve high rigidity, while also improving the tracking efficiency and the sensitivity of handlebar, while riding over imperfections in the road.

LSJ: LEAF-SPRING JUNCTION

The seat stays take on a similar flat construction as the top tube and becomes seamless along that plane, therefore creating added vertical compliance similar to a leaf spring, in the most critical area of the frame as far as comfort is concerned.

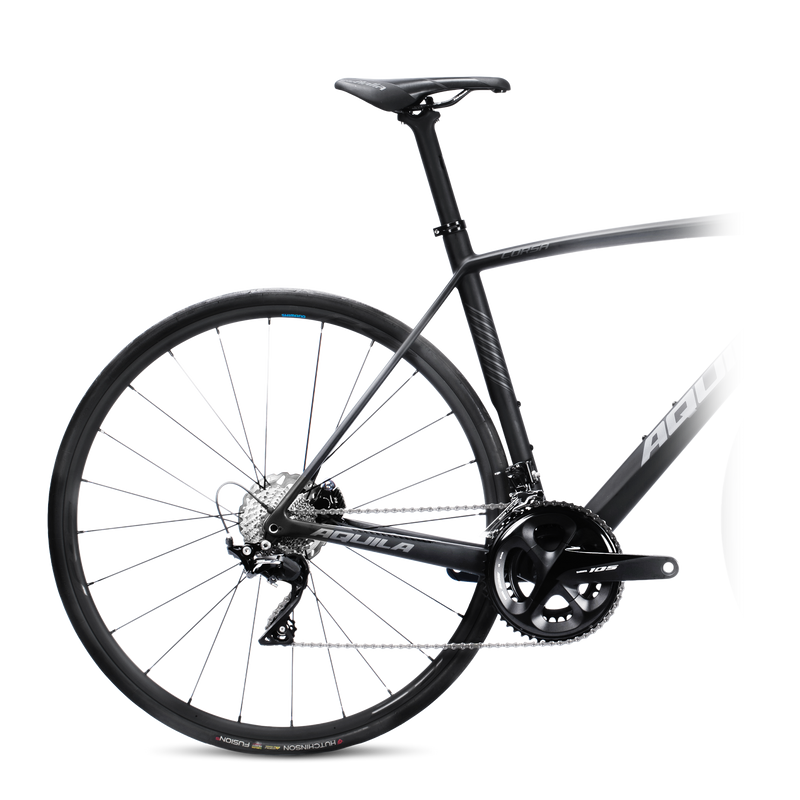

FLAT MOUNT HYDRAULIC DISC BRAKES

For the first time, the Aquila Corsa receives a massive boost in the stopping department. Equipped with flat mount hydraulic disc brakes, paired with 12mm thru axles to harness the torsional load, and the stopping power of the hydraulic brakes.

GEOMETRY

SIZE 49cm 52cm 54CM 56CM 58CM

STACK

516mm

542mm

552mm

567mm

582mm

REACH

366mm

379mm

382mm

391mm

395mm

SEAT TUBE (ST)

490mm

520mm

540mm

560mm

580mm

TOP TUBE

(TT)

515mm

535mm

546mm

565mm

572mm

HEAD TUBE

(HT)

122mm

142mm

152mm

167mm

182mm

HEAD TUBE ANGLE

(HA)

70.5

72

72

72.3

72.5

SEAT TUBE ANGLE

(CA)

74

74

73.5

73

73

BB DROP

(BB)

70

70

70

70

70

CHAIN STAY LENGTH

(RC)

402mm

402mm

402mm

402mm

402mm

WHEEL BASE

(FC)

967mm

975mm

985mm

992mm

997mm
