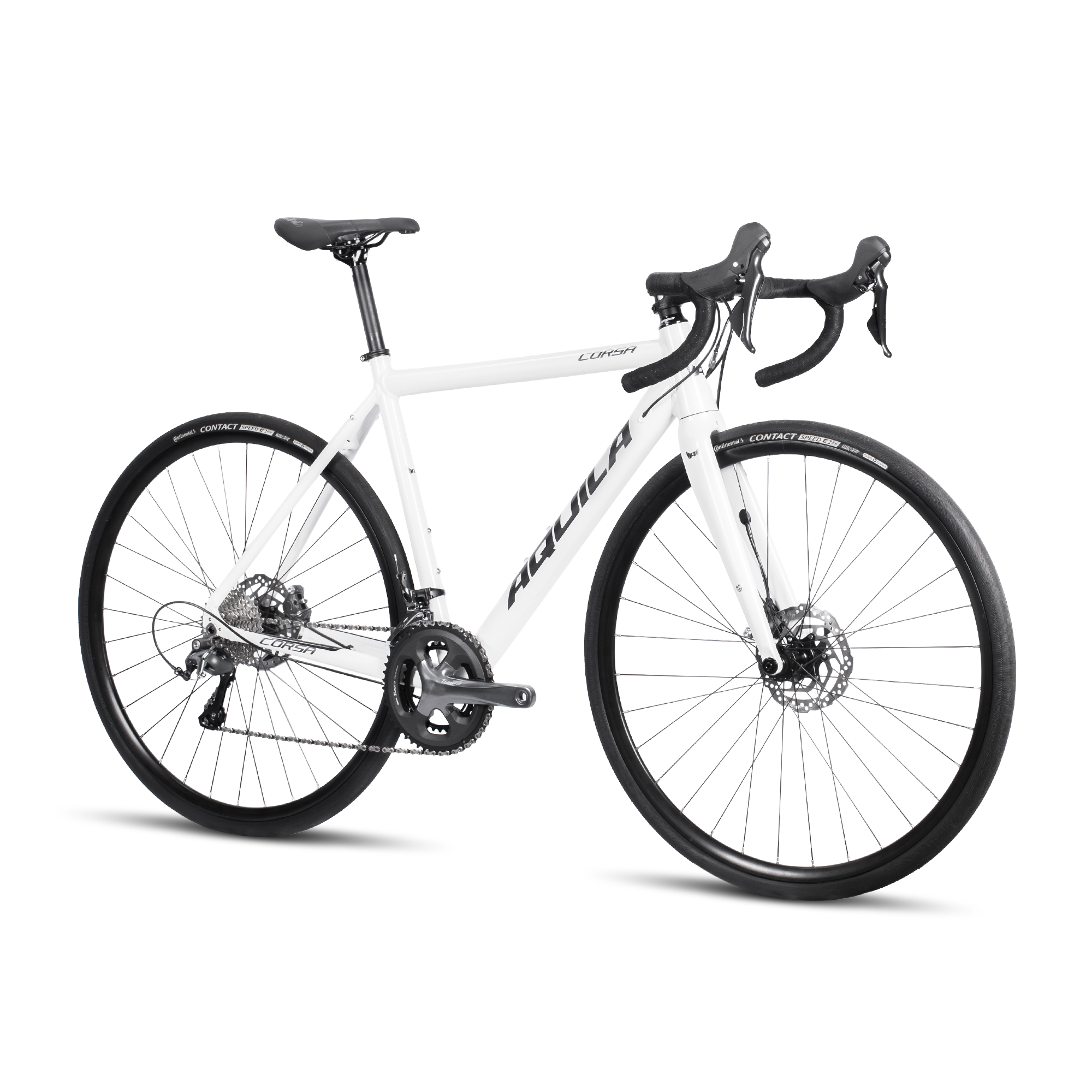

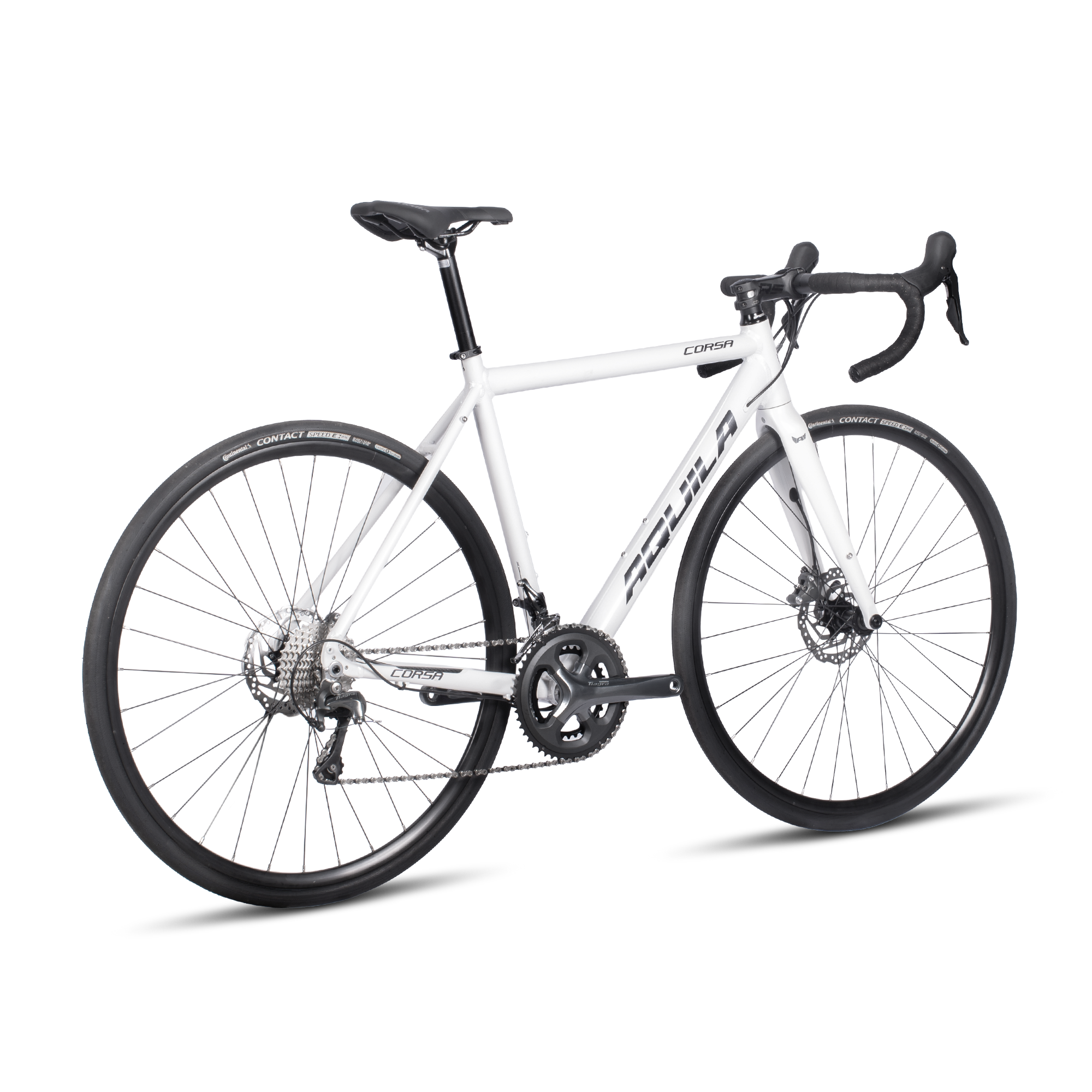

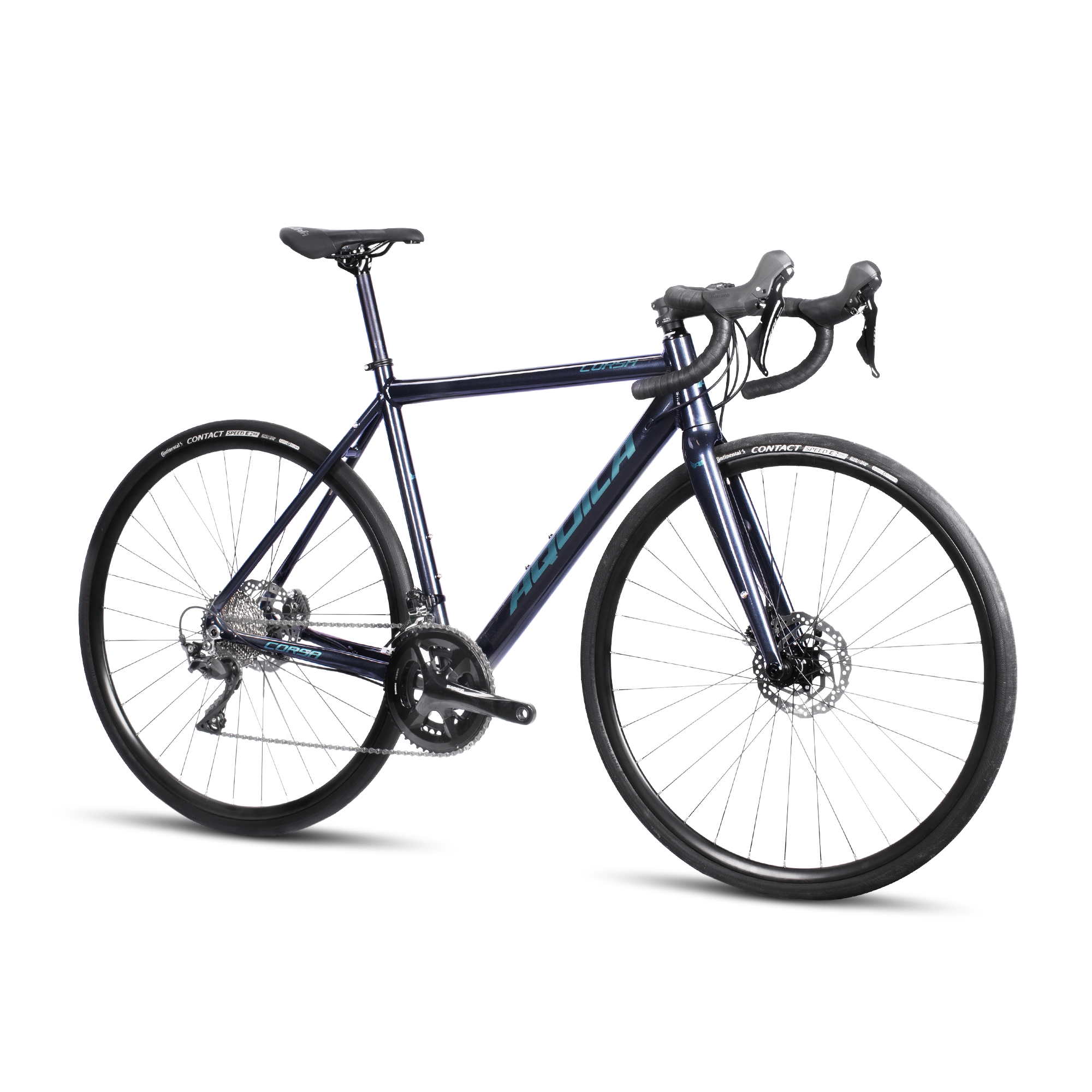

Corsa AL TWO

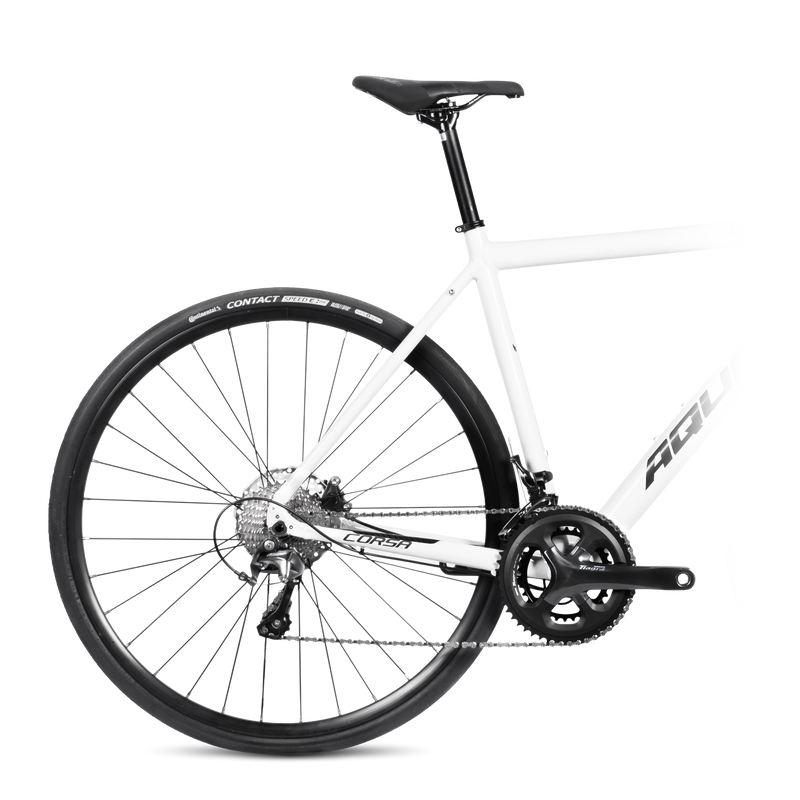

FLAT MOUNT HYDRAULIC DISC BRAKES

For the first time, the Aquila Corsa receives a massive boost in the stopping department. Equipped with flat mount hydraulic disc brakes, paired with 12mm thru axles to harness the torsional load, and the stopping power of the hydraulic brakes. The previous generation Equipe was a prime example of a bike that is tremendously balanced. It is very light, predictably responsive, had deceiving torsional rigidity and exuded comfort. This combination made for a very purposeful race machine. Over the past 5 years, bikes have changed at a rapid rate. The advancements that we see today amongst many of the bikes warranted a revision to the Equipe platform. However, we weren’t looking to reinvent the wheel. We were looking to make it better.

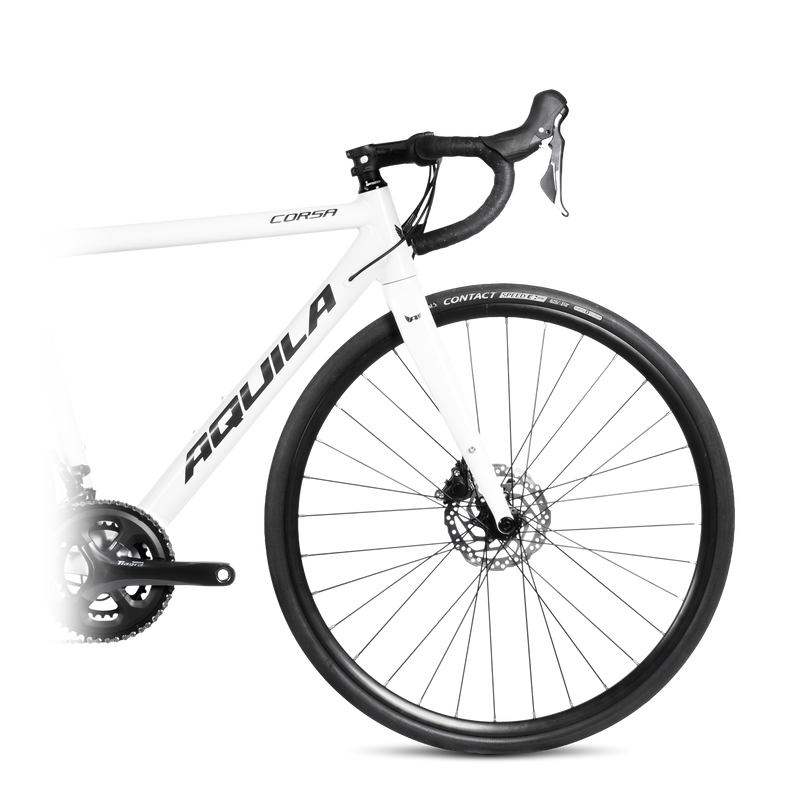

12MM THRU-AXLES

With the introduction of disc brakes to the Aquila Corsa, they have been paired with 12mm aluminum Thru-axles, which increases the rigidity of the wheel and frame frame interface and allow more accurate wheel placement. The result is greater torsion rigidity, safety and improved operation of the braking system.

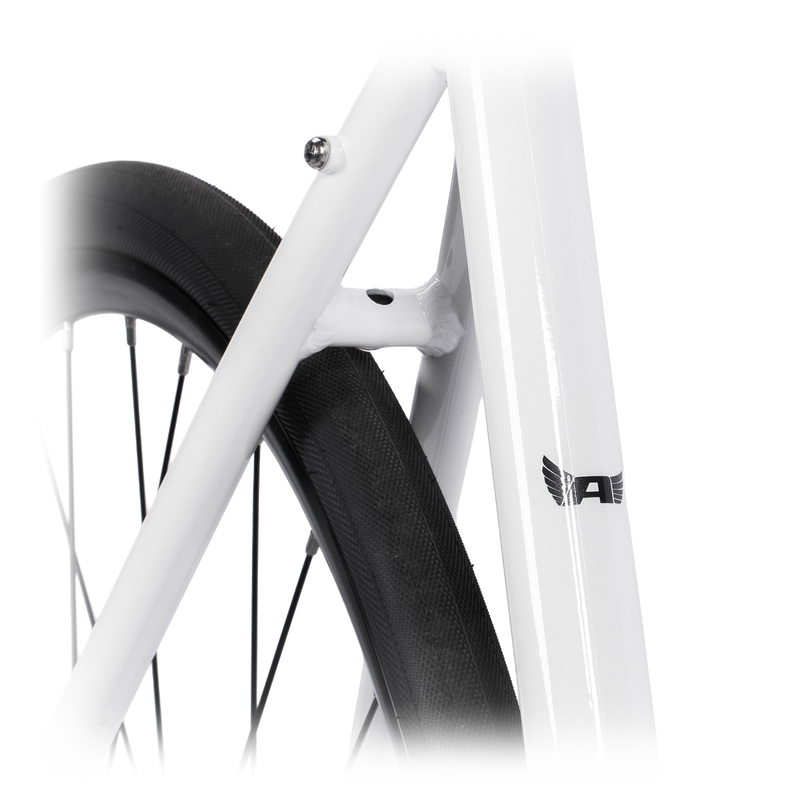

WIDER TIRES

Historically the Aquila Corsa models were limited to a max tire size of 25mm. The all new Aquila Corsa has the ability to run up to a 32mm tire, which results in a smoother, more comfortable ride, with maximum on-road traction.

Frame

Frame Aquila Corsa AL
Headset Aquila 1-1/8”
Seat post Realspeed 27.2

Drivetrain

FD FD-4700, Tiagra 10 speed
RD RD-4700, Tiagra 10 speed
Shifters ST-4720, Tiagra 10 speed Hydraulic
Cassette CS-HF500, Tiagra 10 speed 11-32T
Chain Shimano CN 4601
Crankset FC-4700, Tiagra 11 speed
Bottom bracket BB-RS500-PB

Wheels & Brakes

Wheelset Shimano Alloy 700c
Tires Continental Contact 700x32
Rotors Shimano SM-RT10

Cockpit

Bars Realspeed ErgoEndurance
Stem Realspeed RS-10
Tape Cork

Seat tube (ST) 420

Top tube (TT) 498

Head tube (HT) 95

Head angle 70°

Seat angle 75°

Chainstay 406

Wheelbase 967

Stack 500

Reach 364

1 Measurements

2 Body Type

3 Riding Style

4 Your Fit

Your Measurements

Accurate measurements are the foundation of a perfect fit.

Height (cm) Please enter a height between 140 and 220 cm

Inseam (cm) Please enter an inseam between 65 and 100 cm

Your Body Type

Proportions matter as much as height. This helps us dial in your stack and reach.

Gender

Male Female Other

Please select an option

Torso & Arm Proportions Please select your proportions

Your Riding Style

How you ride shapes how your bike should fit. Pick the style that best describes you.

Race

Aggressive position, max aero, low stack

Endurance

Balanced comfort & speed for long rides

Gran Fondo

Upright comfort, sportive & charity rides

Touring

Maximum comfort, stability & load capacity

Please select a riding style

Your Recommended Frame

High confidence

Book Your Fitting

Aquila Fit Kit Reference

Height	Inseam	Frame
<156cm	70–72cm	45–48cm
~164cm	73–75cm	48–50cm
164–172cm	76–78cm	50–52cm
172–175cm	79–80cm	52–54cm
172–175cm	81cm	54–56cm
178–182cm	82–83cm	54–56cm
178–182cm	84cm	56–58cm
180–188cm	85–86cm	56–58cm
180–188cm	87cm	58–60cm
188–195cm	88–89cm	58–60cm
188–195cm	90cm	60cm+
>195cm	91–93cm+	60cm+
